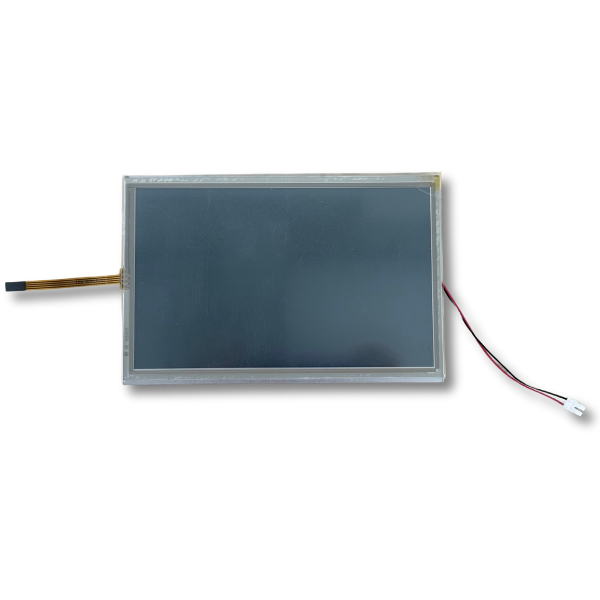

    TFT 7" 800x480 LCD Panel, Interface RGB (40pin), 400cd/m², Resistive touch panel (Replacement Evervision P/N VGG804806-6UFLWB)
    Manufacturer: Next Vision Display
    SKU: NT070-R001JD

    Accessory kit

    PRICE BREAKS
    Quantity
    1+
    5+
    10+
    Price
    €104.90
    €94.40
    €88.80

    For quantities above 24pcs pls send your enquiry to [email protected] or call +39 0332 1888005

    Availability: In stock
    €104.90 excl tax
    i h

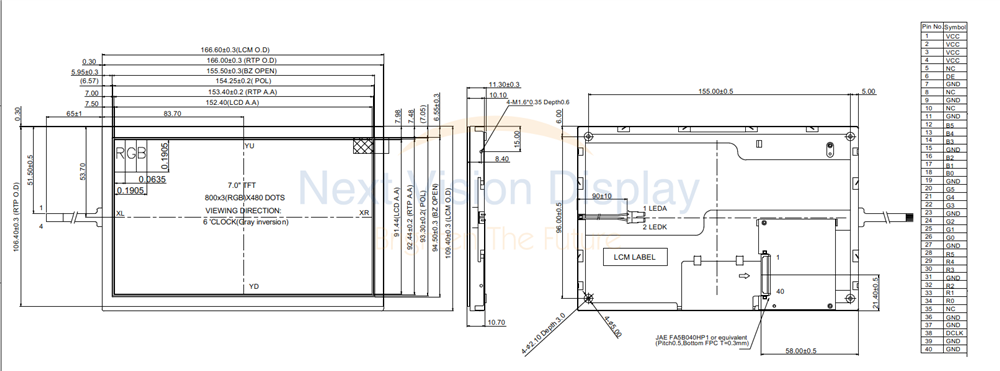

    DRAWING





    SPECIFICATIONS



    General Specifications

    ItemDimensionUnit
    Size 7.0 inch
    Dot Matrix 800 × RGB × 480 (TFT) dots
    Module dimension 166.6 (W) × 109.4 (H) × 11.3 (T) mm
    Active area 152.4 × 91.44 mm
    Pixel pitch 0.1905 × 0.1905 mm
    LCD type TFT, Normally White, Transmissive
    View Angle 6 O'clock
    TFT Interface 18-bit RGB
    With/Without TP With RTP



    Absolute Maximum Ratings

    ItemSymbolMinTypMaxUnit
    Operating Temperature TOP -30 - +70 ℃
    Storage Temperature TST -30 - +80 ℃



    Electrical Characteristics

    Operating Conditions

     SymbolConditionMin.Typ.Max.
    Supply Voltage for LCM VCC - 3.0 3.3 3.6 V
    Supply Current for LCM ICC - - (190) (270) mA
    Products specifications
    Size 7"
    Resolution 800x480
    Active Area (mm) 152.40x91.44
    Color Full Color
    Display Interface RGB
    Display IC No
    View Angle TN
    Frame No
    Touch Panel Resistive
    O. Temperature (°C) -20~70
    Data Connection ZIF Connector
    Pin Nr. 40
    Pin Pitch 0.5mm
    Preferred - Not Preferred Preferred
    *
    *
    *
    *
