NT057-N001JD
NT057-N001JD
TFT 5.7" 320x240 LCD Panel, Interface RGB, High Brightness 700cd/m², No touch (Replacement Evervision P/N VGG322403-7UFLWE)

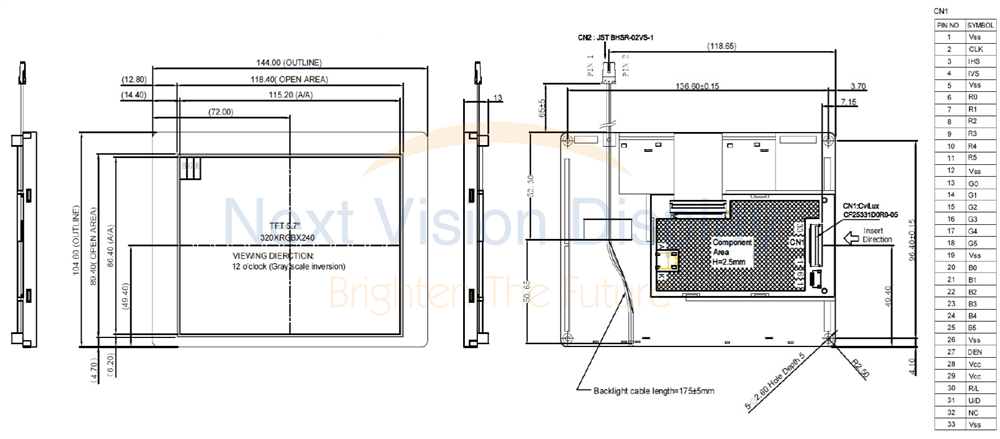

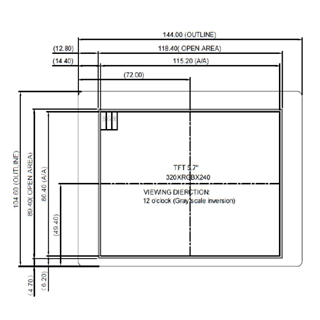

DRAWING
SPECIFICATIONS
General Specifications
Item
Standard Values
Unit
LCD Type
5.7" TFT
Dot arrangement
320 X R.G.B. X 240
dots
Color filter array
RGB vertical stripe
Display mode
Normally white
Gray Scale Inversion Direction
6 O'clock
Eyes Viewing Direction
12 O'clock
Module size
144.0(W) X 104.6(H) x 13(T)
mm
Active area
115.2(W) x 86.4(H)
mm
Interface
RGB 18 bit
Operating temperature
-20 ~ + 70
°C
Storage temperature
-30 ~ + 80
°C
Wight
TBD
g
Electrical Characteristics
Absolute Maximum Ratings
Item
Symbol
Min.
Max.
Unit
Supply Voltage
VCC
-0.3
4.3
V
Interface
Input /Output Pin Assignment
Pin
Pin Name
Description
1
VSS
Ground
2
CLK
Clock input.
3
IHS
Horizontal sync input. Negative polarity.
4
IVS
Vertical sync input. Negative polarity.
5
VSS
Ground
6
R0
Red Data input (LSB).
7
R1
Red Data input
8
R2
Red Data input
9
R3
Red Data input
10
R4
Red Data input
11
R5
Red Data input (MSB).
12
VSS
Ground
13
G0
Green Data input (LSB).
14
G1
Green Data input
15
G2
Green Data input
16
G3
Green Data input
17
G4
Green Data input
18
G5
Green Data input (MSB).
19
VSS
Ground
20
B0
Blue Data input (LSB).
21
B1
Blue Data input
22
B2
Blue Data input
23
B3
Blue Data input
24
B4
Blue Data input
25
B5
Blue Data input (MSB).
26
VSS
Ground
27
DEN
Data Enable signal.
28
VCC
Power supply: + 3.3V
29
VCC
Power supply: + 3.3V
30
R/L
Left or Right Display Control.
31
U/D
Up / Down Display Control.
32
NC
No connection
33
VSS
Ground
SKU:
NT057-N001JD
Brand:
Next Vision Display
Available:
No
Be the first to review this product
Accessory Kit
FFC Cable
-- Details Below in 'Related Products' --
SML2CD33X42ADX6BL-P0.5-S4 [+€4.90]
Display Connector
-- Details Below in 'Related Products' --
MOLEX_54104-3333 [+€2.60]
CNO6231XXXXXXXXXXX00 [+€2.80]
Price Breaks
Quantity
1+
5+
10+
Price
€108.40
€99.40
€95.40
For quantities above
25
pcs pls send your enquiry to
[email protected]
or call +39 0332 1888005
€108.40 excl tax
Overview
Specifications
Download
Contact Us
DRAWING
SPECIFICATIONS
General Specifications
Item
Standard Values
Unit
LCD Type
5.7" TFT
Dot arrangement
320 X R.G.B. X 240
dots
Color filter array
RGB vertical stripe
Display mode
Normally white
Gray Scale Inversion Direction
6 O'clock
Eyes Viewing Direction
12 O'clock
Module size
144.0(W) X 104.6(H) x 13(T)
mm
Active area
115.2(W) x 86.4(H)
mm
Interface
RGB 18 bit
Operating temperature
-20 ~ + 70
°C
Storage temperature
-30 ~ + 80
°C
Wight
TBD
g
Electrical Characteristics
Absolute Maximum Ratings
Item
Symbol
Min.
Max.
Unit
Supply Voltage
VCC
-0.3
4.3
V
Interface
Input /Output Pin Assignment
Pin
Pin Name
Description
1
VSS
Ground
2
CLK
Clock input.
3
IHS
Horizontal sync input. Negative polarity.
4
IVS
Vertical sync input. Negative polarity.
5
VSS
Ground
6
R0
Red Data input (LSB).
7
R1
Red Data input
8
R2
Red Data input
9
R3
Red Data input
10
R4
Red Data input
11
R5
Red Data input (MSB).
12
VSS
Ground
13
G0
Green Data input (LSB).
14
G1
Green Data input
15
G2
Green Data input
16
G3
Green Data input
17
G4
Green Data input
18
G5
Green Data input (MSB).
19
VSS
Ground
20
B0
Blue Data input (LSB).
21
B1
Blue Data input
22
B2
Blue Data input
23
B3
Blue Data input
24
B4
Blue Data input
25
B5
Blue Data input (MSB).
26
VSS
Ground
27
DEN
Data Enable signal.
28
VCC
Power supply: + 3.3V
29
VCC
Power supply: + 3.3V
30
R/L
Left or Right Display Control.
31
U/D
Up / Down Display Control.
32
NC
No connection
33
VSS
Ground
Products specifications
Brand
Next Vision Display
Size
5.7"
Resolution
320x240
Active Area (mm)
115.20x86.40
Color
Full Color
Display Interface
RGB
Display IC
No
View Angle
TN
Sunlight Readable
High 601~1200cd/m²
Frame
No
Touch Panel
No touch
O. Temperature (°C)
-20~70
Display Connection
ZIF Connector
Pin Nr.
33
Pin Pitch
0.5mm
Preferred - Not Preferred
Preferred
Download
Log in
or
Register
to downloads PDF.
Your name
Your email
Enquiry
Products specifications
Brand
Next Vision Display
Size
5.7"
Resolution
320x240
Active Area (mm)
115.20x86.40
Color
Full Color
Display Interface
RGB
Display IC
No
View Angle
TN
Sunlight Readable
High 601~1200cd/m²
Frame
No
Touch Panel
No touch
O. Temperature (°C)
-20~70
Display Connection
ZIF Connector
Pin Nr.
33
Pin Pitch
0.5mm
Preferred - Not Preferred
Preferred
Related products
VGG322403-7UFLWE

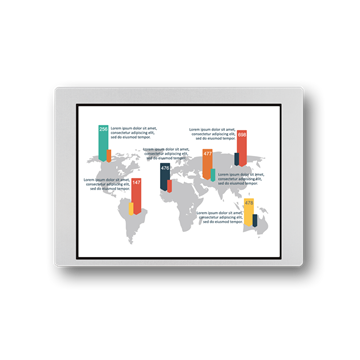

TFT 5.7" 320x240 LCD Panel, Interface RGB, 380cd/m², No touch
