NT050RC001ML

Pin No.

Symbol

Description

1

GND

2

GND

3

LAN2_P

Disp MIPI lane2+.

4

LEDK

LED cathode.

5

LAN2_N

Disp MIPI lane2-.

6

LEDK

LED cathode.

7

GND

8

GND

9

LAN1_P

Disp MIPI Blane 1+.

10

LEDA

LED Anode.

11

LAN1_N

Disp MIPI lane 1-.

12

LEDA

LED Anode.

13

GND

14

GND

15

CLK_P

Disp MIPICLK+.

16

ID_PIN2

ID pu to1.8V(LCM). If not used open.

17

CLK_N

Disp MIPICLK-.

18

ID_PIN1

ID pd to GND(LCM). If not used open.

19

GND

20

GND

21

LAN0_P

Disp MIPI lane 0+.

22

IOVCC

Disp digital power(1.8V).

23

LAN0_N

Disp MIPI lane0-.

24

IOVCC

Disp digital power(1.8V).

25

GND

26

GND

27

LAN3_P

Disp MIPI lane 3+.

28

NC

NC

29

LAN3_N

Disp MIPI lane 3-.

30

VSN/VDD-

Display -5V analog rail.

31

GND

32

VSN/VDD-

Display -5V analog rail.

33-35

NC

NC

36

VSP/VDD+

Disp +5V analog rail.

37

GND

38

VSP/VDD+

Disp +5V analog rail .

39-41

NC

NC

42

GND

43

NC

NC

44

LEDPWM

Backlight pwm output, If not used open.

45

NC

NC

46

TE

Disp tearing effect out, If not used open.

47

GND

48

RESET

Disp reset.

49

GND

50

GND

Item

Contents

Unit

Note

LCD Type

TFT

-

Display color

16.7M

Viewing Direction

ALL

O’Clock

Operating temperature

-20~+60

℃

Storage temperature

-30~+75

℃

Module size

208.0(H) x 208.0(V) x4.16(D)

mm

Active Area(W×H)

127.008(H) x 127.008(V)

mm

Number of Dots

1080×1080

dots

Controller

HX8399

-

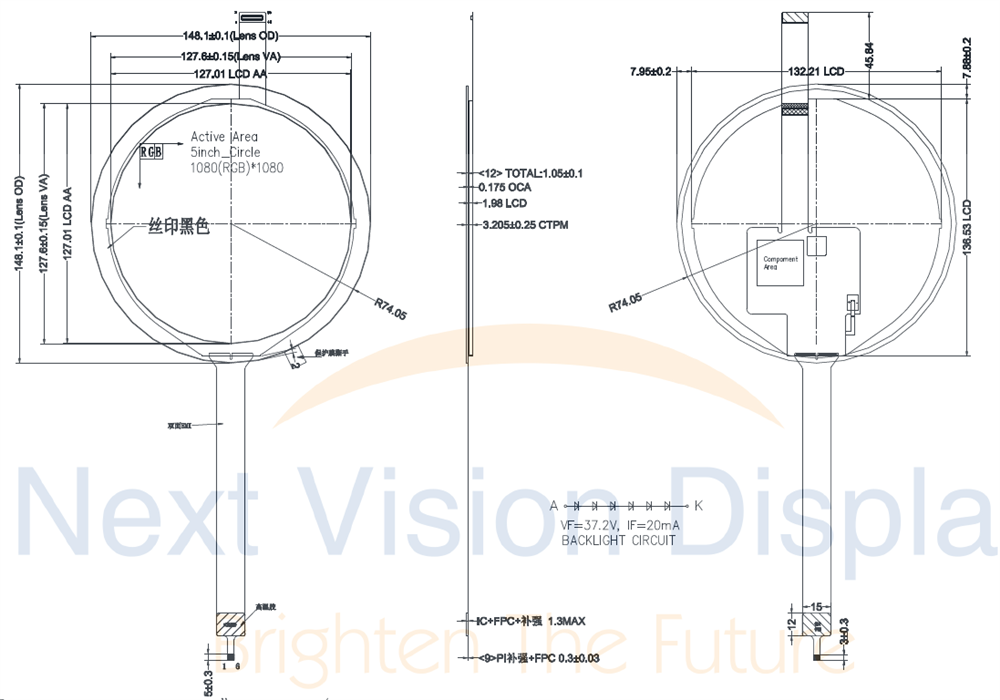

Outline Dimensions

Refer to outline
drawing

-

Backlight

6-LEDs (white)

pcs

Weight

---

g

Interface

4 Lane MIPI

-

Item

Symbol

Unit

Note

Logic Power Supply
Voltage

IOVCC

-0.3

3.6

V

Analog Positive Power
Supply

VDD+/VSP

-0.3

+6.6

V

Analog Negative Power
Supply

VDD-/VSN

0

+6.6

V

Item

Storage

Operating

Note

Ambient Temperature

-30°C

75°C

-20°C

60°C

1,2

Humidity

-

-

-

-

3

Item

Symbol

Min

Typ

Max

Unit

Note

Forward Voltage

VF

-

37.2

38.4

V

Forward Current

IF

15

20

-

mA

Luminance for LCD

Lv

220

270

Cd/m2

Note 3

LED life time

Hr

-

30,000

-

Hours

Note 1,2

Uniformity

Avg

80

-

-

%

Note 3

Item

Symbol

Condition

Unit

Note

Brightness

Bp

θ=0°

F=0°

220

270

-

Cd/m²

1

Uniformity

⊿Bp

80

-

-

%

1,2

Viewing
Angle

3:00

Cr≥10

-

80

-

Deg

3

6:00

-

80

-

9:00

-

80

-

12:00

-

80

-

Contrast
Ratio

Cr

θ=0°

F=0°

800

1200

-

4

Response
Time

Tr

-

30

40

ms

5

Tf

ms

Color of
CIE

Coordinate

W

x

θ=0°

F=0°

0.23

0.28

0.33

-

1,6

y

0.28

0.33

0.38

-

R

x

0.46

0.51

0.56

-

y

0.29

0.34

0.39

-

G

x

0.26

0.31

0.36

-

y

0.51

0.56

0.61

-

B

x

0.14

0.15

0.20

-

y

0.09

0.14

0.19

-

NTSC
Ratio

S

50

60

-

%
