NT050-N001ME

Name: NT050-N001ME
SKU: NT050-N001ME
Price: 22.20 EUR
Availability: OutOfStock

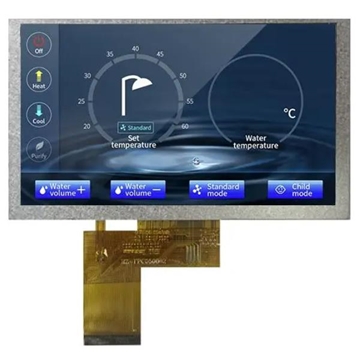

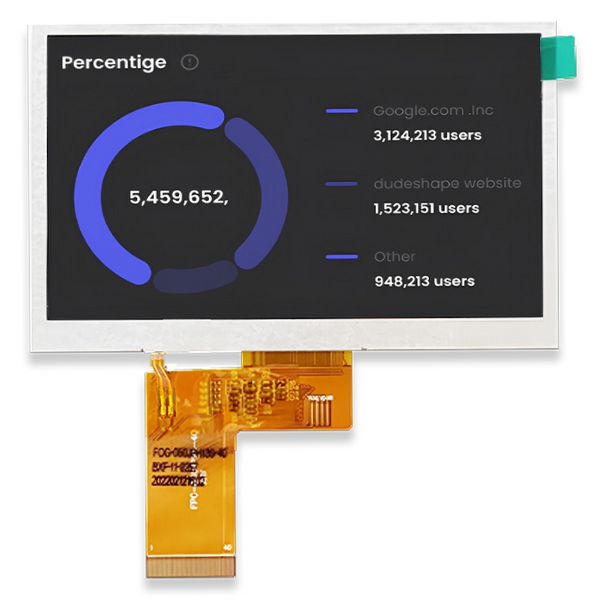

TFT 5" 800x480 LCD Panel, Interface RGB, 500cd/m², Wide View Angle (IPS)

Manufacturer: Next Vision Display

SKU: NT050-N001ME

PRICE BREAKS

Quantity

10+

Price

€22.20

€20.00

€18.80

For quantities above 24pcs pls send your enquiry to [email protected] or call +39 0332 1888005

Availability: The product can not be added to the cart. Please check with FC for future availability

€22.20 excl tax

Qty:

i h

DRAWING

HDMI interface

Item	Contents	Unit	Note
LCD Type	Normally Black, Transmissive	-
Display Color	16.7M		1
Viewing Direction	ALL	O'Clock
Operating Temperature	-20~70	°C
Storage Temperature	-30~80	°C
Module size	120.70(W)x75.90(H)x3.05(T)	mm	2
Active Area (WxH)	108.00(W)x64.80(H)	mm
Number of Dots	800xRGBx480	dots
Backlight	18-LEDs(white)	pcs
Data Transfer	RGB interface	-

Note 1: Color tone is slightly changed by temperature and driving voltage.

Note 2: Without FPC and Solder.

Item	Symbol	Min	Max	Unit	Note
Power Supply Voltage	VDD	-0.3	3.6	V	1,2
Input Voltage	V_In	-0.3	VDD+0.5	V
Current of LED	ILED	0	20	mA

Notes:

If the module is above these absolute maximum ratings, it may become permanently damaged. Using the module within the following electrical characteristics conditions are also exceeded, the module will malfunction and cause poor reliability.
VDD>V_SS must be maintained.
Please be sure users are grounded weh handing LCD Module.

Parameter		Symbol	Condition	Min	Typ	Max	Unit	Note
Power supply		VDD	Ta=25°C	2.8	3.3	3.6	V
Input voltage	'H'	V_IH	VDD=3.3V	0.7VDD	-	VDD	V
Input voltage	'L'	V_IL	VDD=3.3V	0	-	0.3VDD	V
Current Consumption		I_CC1	Normal Mode	-	-	-	mA	2
Current Consumption		I_CC2	Sleep Mode	-	0.03	0.09	mA	2

Notes:
