NT015RN001MI
NT015RN001MI
TFT 1.45" 412x412, Round LCD Panel, Interface MCU (QSPI), Wide View Angle (IPS), 450 cd/m2, Standard Temp.

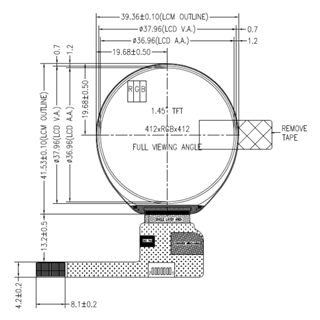

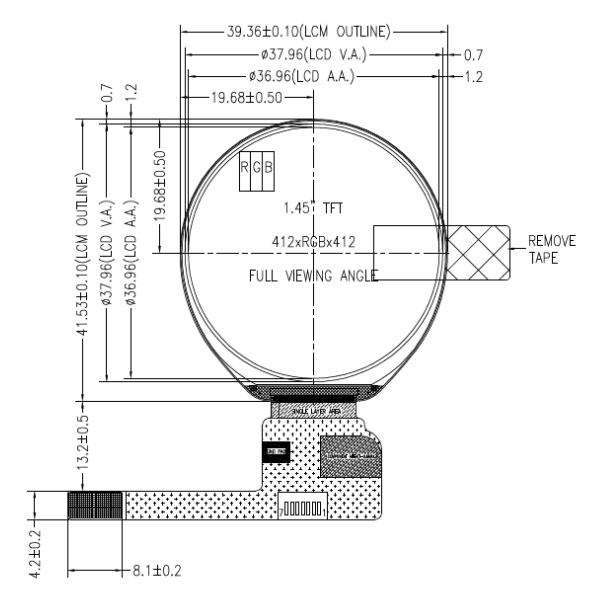

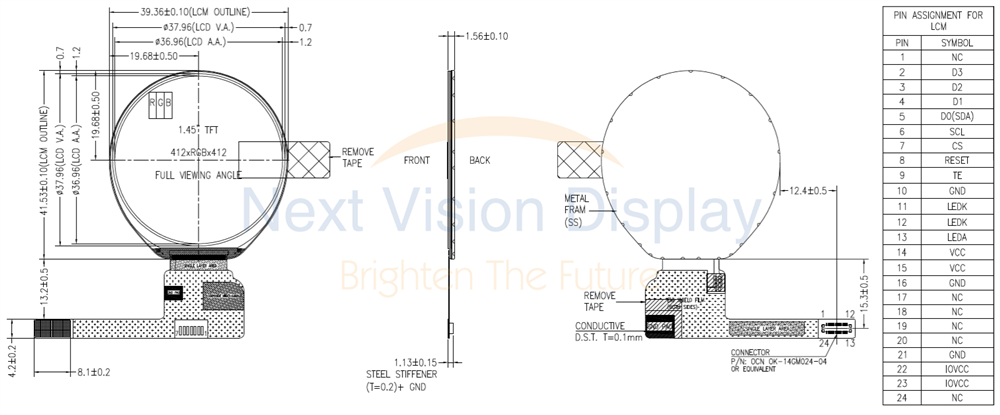

DRAWING
SPECIFICATIONS
General Specifications
Item
Specification
Unit
LCD Type
TFT / Transmissive / Normally Black
/
Size
1.45
Inch
Viewing Direction
Full Viewing Angle
O'Clock
Gray Scale Inversion Direction
-
O'Clock
Active Area (W x H)
39.36 x 41.53 x 1.56
mm
Pixel Pitch
0.0897 x 0.0897
mm
Number of Dots
412 (RGB) x 412
mm
Driver IC
SPD2010
/
Backlight Type
3-chip LED
/
Interface Type
QSPI
/
Color Depth
16.7M
/
Pixel Configuration
R.G.B Vertical Stripe
/
Top Polarizer Surface Treatment
Anti-glare
/
Input Voltage
2.8
V
With/Without TSP
Without TSP
/
TP Surface Treatment
-
/
Weight
4.3
g
Absolute Maximum Ratings
Parameter
Symbol
Min
Max
Unit
Power Supply Voltage
VCC
-0.3
3.3
V
IOVCC
-0.3
3.3
V
Operating Temperature
T
OP
-20
+70
℃
Storage Temperature
T
ST
-30
+80
℃
Electrical Characteristics
Parameter
Symbol
Min.
Typ.
Max.
Unit
Power Supply Voltage
VCC
2.5
2.8
3.3
V
IOVCC
1.65
1.8
3.3
V
Supply Current for VCC
ICC
-
TBD
-
mA
Gate Driver "H" Level
VGH
6
-
15
V
Gate Driver "L" Level
VGL
-14
-
-5
V
Interface Description
Pin No.
Symbol
Description
1
NC
No connection.
2
D3
Serial input signal in QSPI serial data interface.
3
D2
Serial input signal in QSPI serial data interface.
4
D1
Serial input signal in QSPI serial data interface.
5
D0 (SDA)
Serial input signal in QSPI serial data interface.
6
SCL
This pin is used to be serial interface clock.
7
CS
Chip selection pin; Low enable, high disable.
8
RESET
Reset pin, active low.
9
TE
Tearing effect signal is used to synchronize MCU to frame memory writing.
10
GND
Ground.
11
LEDK
Cathode for LED backlight.
12
LEDK
Cathode for LED backlight.
13
LEDA
Anode for LED backlight.
14
VCC
Power supply.
15
VCC
Power supply.
16
GND
Ground.
17
NC
No connection.
18
NC
No connection.
19
NC
No connection.
20
NC
No connection.
21
GND
Ground.
22
IOVCC
Power supply for I/O system.
23
IOVCC
Power supply for I/O system.
24
NC
No connection.
