NT015-N001DW

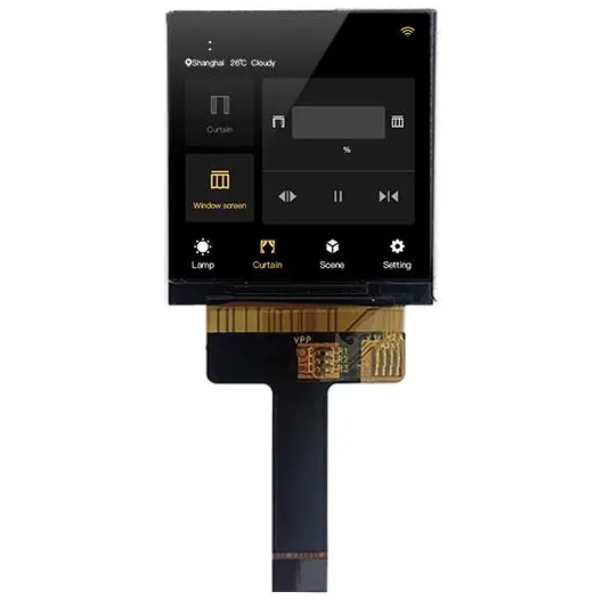

Picture of NT015-N001DW Picture of NT015-N001DW
TFT 1.54" 240x240, Full Color, Interface MCU (SPI) IC ST7789V2, Wide View Angle (IPS), 550 cd/m2, No touch

General Specification

Color 262K
LCD Type IPS-TFT-LCD
Viewing Angle Wide viewing angle, 80/80/80/80(L/R/U/D)
Display Area(A.A) 27.72(W)*27.72(H)
Driver IC ST7789V2
Luminance 550cd/m²
LED Numbers 3 LEDS
Interface 4SPI 12PIN_0.5mm


Electrical Characteristics

Analog Voltage 2.8V(Typ.)
Forward Voltage 3.2V(Typ.)
Forward Current 60mA
Uniformity(with L/G) 80%
LED Life-Time 30000 Hr



Optical Characteristics

Contrast Ratio 900:1
Response Time 30ms
Transmittance 4.9%
Color Gamut 48%

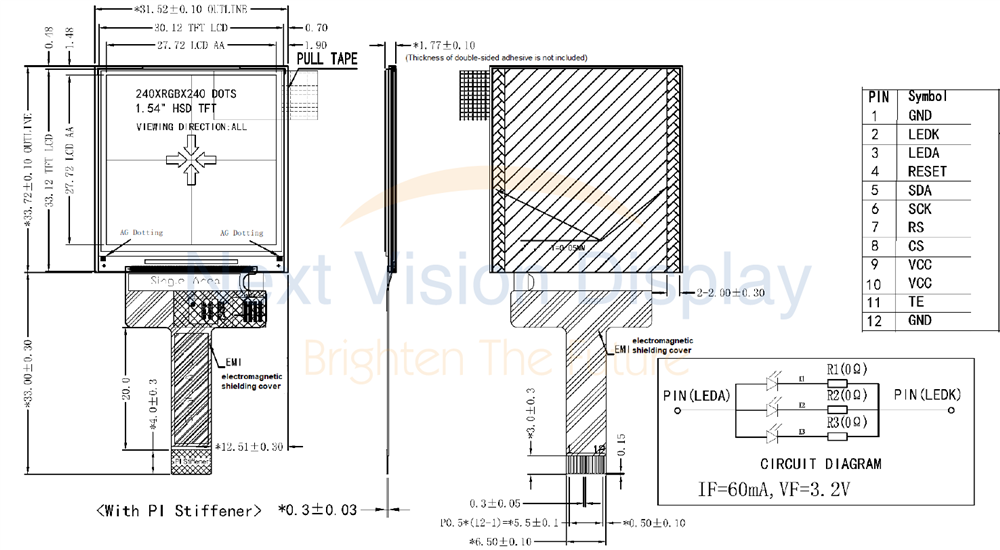

DRAWING

SKU: NT015-N001DW
Brand: Next Vision Display
Available: Yes
Be the first to review this product
Price Breaks
Quantity
1+
5+
10+
Price
€4.80
€4.20
€3.80

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€4.80 excl tax

General Specification

Color 262K
LCD Type IPS-TFT-LCD
Viewing Angle Wide viewing angle, 80/80/80/80(L/R/U/D)
Display Area(A.A) 27.72(W)*27.72(H)
Driver IC ST7789V2
Luminance 550cd/m²
LED Numbers 3 LEDS
Interface 4SPI 12PIN_0.5mm


Electrical Characteristics

Analog Voltage 2.8V(Typ.)
Forward Voltage 3.2V(Typ.)
Forward Current 60mA
Uniformity(with L/G) 80%
LED Life-Time 30000 Hr



Optical Characteristics

Contrast Ratio 900:1
Response Time 30ms
Transmittance 4.9%
Color Gamut 48%





DRAWING

Products specifications
Brand Next Vision Display
Size 1.54"
Resolution 240x240
Active Area (mm) 27.72x27.72
Color Full Color
Display Interface MCU (SPI)
Display IC ST7789V2
View Angle IPS
Frame No
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection FPC for ZIF Connector
Pin Nr. 12
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Next Vision Display
Size 1.54"
Resolution 240x240
Active Area (mm) 27.72x27.72
Color Full Color
Display Interface MCU (SPI)
Display IC ST7789V2
View Angle IPS
Frame No
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection FPC for ZIF Connector
Pin Nr. 12
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
