NT013RC001DW

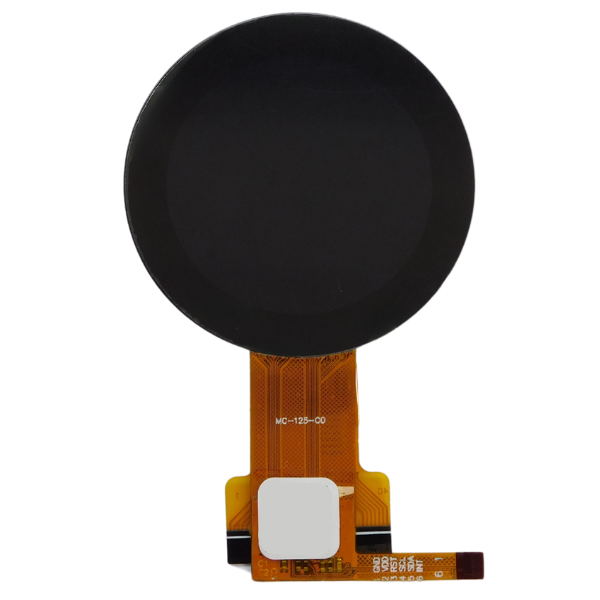

Picture of NT013RC001DW Picture of NT013RC001DW
TFT 1.28" 240x240, Round LCD Panel, Interface RGB, Wide View Angle (IPS), 150 cd/m2, Standard Temp., Capacitive Touch Panel

General Specification

Color 262K
LCD Type IPS-TFT-LCD
Viewing Angle Wide viewing angle, 85/85/85/85(L/R/U/D)
Display Area(A.A) 32.4(W)*32.4(H)
Driver IC GC9A01A
Luminance 150cd/m²
LED Numbers 2 LEDS
Interface RGB_18bit 40PIN_0.5mm



Electrical Characteristics

Digital Supply Voltage 2.8V(Typ.)
Forward Voltage 3.0V(Typ.)
Forward Current 40mA
Uniformity 75%
LED Life-Time 20000 Hr



Optical Characteristics

Contrast Ratio 1100:1
Response Time 30ms
Transmittance 4.9%



Touch Parameters

Feature Description
Type CTP (Capacitive touch panel)
Structure G+FF
Outline Size (mm) 43.6(L)*43.6(W)*1.2(T)
View Area (mm) 33(L)*33(W)
Control Type GT911
Sufrace Hardness ≥6H
Light Transmittance ≥85%
Operating Temperature -20~70°C
Storage Temperature -20~70°C

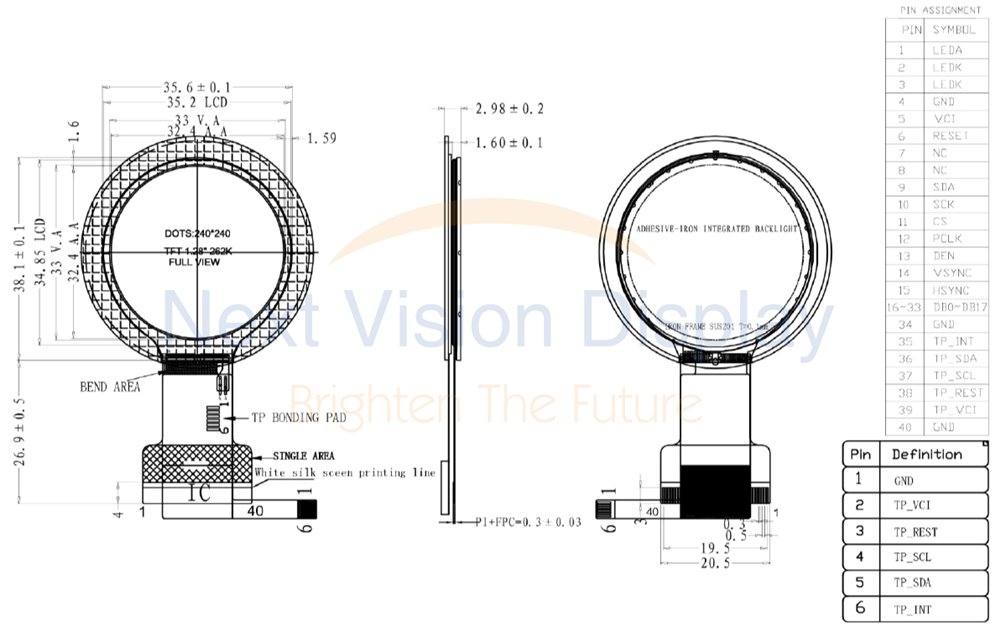

DRAWING

SKU: NT013RC001DW
Brand: Next Vision Display
Available: Yes
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
Price
€19.10
€16.70

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€19.10 excl tax

General Specification

Color 262K
LCD Type IPS-TFT-LCD
Viewing Angle Wide viewing angle, 85/85/85/85(L/R/U/D)
Display Area(A.A) 32.4(W)*32.4(H)
Driver IC GC9A01A
Luminance 150cd/m²
LED Numbers 2 LEDS
Interface RGB_18bit 40PIN_0.5mm



Electrical Characteristics

Digital Supply Voltage 2.8V(Typ.)
Forward Voltage 3.0V(Typ.)
Forward Current 40mA
Uniformity 75%
LED Life-Time 20000 Hr



Optical Characteristics

Contrast Ratio 1100:1
Response Time 30ms
Transmittance 4.9%



Touch Parameters

Feature Description
Type CTP (Capacitive touch panel)
Structure G+FF
Outline Size (mm) 43.6(L)*43.6(W)*1.2(T)
View Area (mm) 33(L)*33(W)
Control Type GT911
Sufrace Hardness ≥6H
Light Transmittance ≥85%
Operating Temperature -20~70°C
Storage Temperature -20~70°C





DRAWING

Products specifications
Brand Next Vision Display
Size 1.28"
Resolution 240x240
Active Area (mm) 32.40x32.40
Color Full Color
Display Interface RGB
Display IC GC9A01A
View Angle IPS
Frame No
Touch Panel Capacitive
O. Temperature (°C) -20~70
Display Connection FPC for ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Touch Panel IC Controller GT911
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Next Vision Display
Size 1.28"
Resolution 240x240
Active Area (mm) 32.40x32.40
Color Full Color
Display Interface RGB
Display IC GC9A01A
View Angle IPS
Frame No
Touch Panel Capacitive
O. Temperature (°C) -20~70
Display Connection FPC for ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Touch Panel IC Controller GT911
Preferred - Not Preferred Preferred
