Monday, February 19, 2024

From Winstar News of Jan. '24

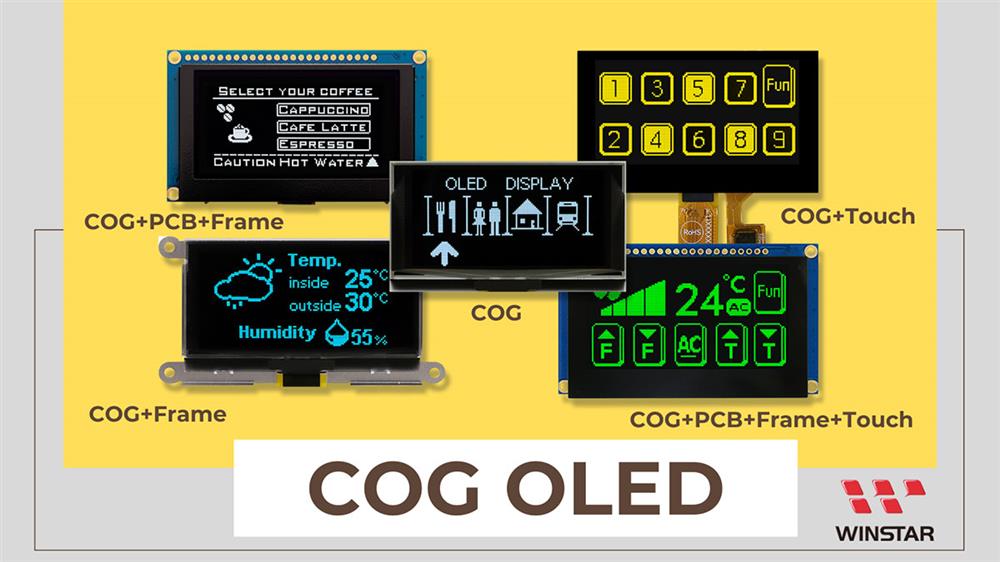

COG OLED Module Selection Guide

To help customers quickly choose the right COG OLED display module, we present a structured list of graphic OLED display series along with corresponding model numbers.

Each series offers unique display colors and features, such as the inclusion of a polarizing film.

We are dedicated to providing you with professional and attentive service at FIRST Components. If you have any specific requirements or questions about our products, feel free to contact us at [email protected].

SIZE	COG	PCB Option	Touch Option
0.49"	WEO6432*#A	WEA6432*#A
0.66"	WEO6448*#A (SSD1306)	WEA6448*#A (SSD1306)
0.66"	WEO6448*#B (SSD1315)
0.68"	WEO9632*#B
0.69"	WEO9616*#B	WEA9616*#B
0.71"	WEO4864*#A	WEA4864*#A
0.84"	WEO9616*#A	WEA9616*#A
0.91"	WEO12832*#D(SPI)	WEA12832*#D(SPI)	WEO12832*#M (SSD7317\|SPI,I2C)
0.91"	WEO12832*#F (I2C)	WEA12832*#F(I2C)
0.95"	WEO9664*#A
0.96"	WEO12864*#C (SH1106)	WEA12864*#D (SPI,I2C)
	WEO12864*#D (SSD1306)	WEA12864*#D(I2C)
	WEO12864*#V (SSD1315)
	WEO12864*#AB (SSD1315)
	WEO12864*#AC (SSD1315)
	WEO12864*#AD (ST7315)
0.96"	WEO12864*#MX (Dual Color)	WEA12864*#MX (Dual Color)
0.96"	WEO64128*#A(SH1107 \| Portarit)	WEA64128*#A (SH1107 \| Portarit)
1.1"	WEO9664*#B	WEA9664*#B
1.12"	WEO128128*#G	WEA128128*#G
1.18"	WEO128128*#B
1.28"	WEO12864*#L	WEA12864*#LP(SPI)
1.28"		WEA12864*#L(I2C)
1.5"	WEO128128*#A(SSD1327)	WEA128128*#A (SSD1327)
1.5"	WEO128128*#H(CH1120)
1.54"	WEO12864*#A (SSD1309)	WEA12864*#A(SSD1309)	WEO12864*#A-CTP (SSD1309)
	WEO12864*#Y (SSD1309 \| Frame)
	WEO12864*#AA(SSD1327 \| Gray Level)	WEA12864*#AA (SSD1327 \| Gray Level)
	WEO12864*#AE (CH1116)	WEA12864*#AE (CH1116)
	WEO12864*#AH(SH1106)
1.71"	WEO12832*#P	WEO12832*#P
1.92"	WEO160128*#B
2"	WEO12832*#K
2.08"	WEO25664*#A	WEA25664*#A
2.23"	WEO12832*#A(SSD1305)	WEP12832*#A (SSD1305)	WEP12832*#A-CTP (SSD1305)
2.23"	WEO12832*#N (SH1106)
2.42"	WEO12864*#AJ (CH1116)	WEO12864*#J(SSD1309)	WEO12864*#G-CTP (SSD1309)
	WEO12864*#AL (SH1106)	WEP12864*#AJ (CH1116 \| RS8080)	WEO12864*#J-CTP (SSD1309)
	WEO12864*#G(SSD1309)	WEP12864*#AJ (CH1116 \| RS232)
	WEO12864*#H(SSD1309)
2.7"	WEO12864*#K(SSD1309)	WEP12864*#U(SSD1357)	WEO12864*#Q-CTP (SSD1309)
	WEO12864*#Q(SSD1309)	WEP12864*#Q(SSD1309)	WEP12864*#Q-CTP (SSD1309)
	WEO12864*#AK (CH1116)		WEP12864*#U-CTP (SSD1357)
	WEO12864*#AM (SH1106)
3.55"	WEO25664*#D(SSD1322)		WEO25664*#D-CTP
