FC / Winstar's Embedded World

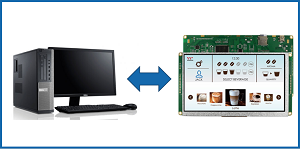

TFT Clever System (All in One)

Winstar M Series TFT displays, called "Clever-All In One System", are easy-to-access solutions with two RS232 and SPI user interfaces, for a very versatile range of applications. Through a simple editing program the user can easily design his own software. These modules also support backlight adjustment with the output of a PMW signal and a 4-button sensor. So there are many advantages in using Clever System TFT displays:

All in One system: The modules of the M series have microcontrollers (PIC24), SRAM (frame buffer) and flash memory (graphic files). The microcontroller on board can directly drive TFT, backlight and touch panel
Convenient for SW update: the software can be updated by downloading the new version online; the user does not need to update through re-mastering
Easy coding processes: module programming and test can be performed by the software provided "user interface" (UI). Winstar UI program guides you in compiling what you want (fonts, texts, images, icons); so you do not need to write any software
We can provide you an optional WWTFT-10 # development board to accelerate the content compilation and test function through communication with a PC
Reduce the I / O ports: you can directly use the RS232 or SPI-4 line on the TFT driver to drive the display

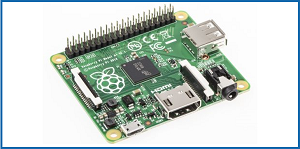

TFT with HDMI / Raspberry Interface

Extremely simple driving TFT modules with any Embedded source (Raspberry Pi3 or SBC in other CPU architectures), as well as directly with a PC or Laptop having HDMI output (high speed). Features:

Easy interconnection with Raspberry Pi GPIO board through dedicated connectors on board
Easy interface with any SBC architecture or PC / Lap Top via HDMI cable
Resistive and capacitive touch panel supported via USB interface
Very fast response times
