DMG80480T043_A5WTC

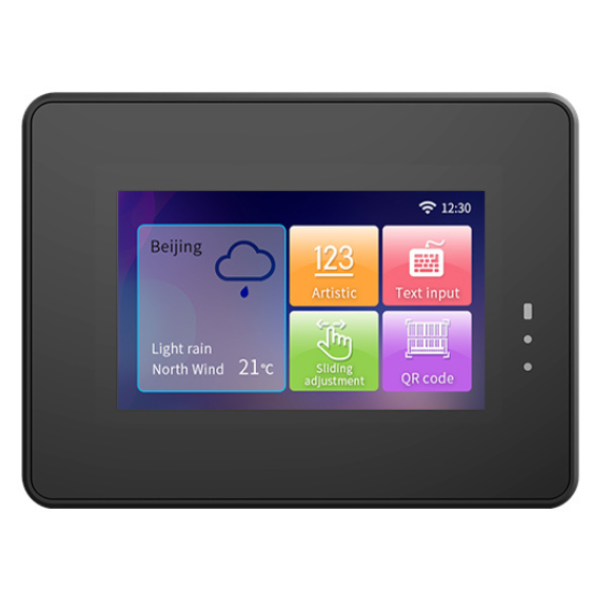

TFT 4.3" 800x480, Intelligent T5L RS485/RS232 COB, 250cd/m², Wide View Angle (IPS), Capacitive Touch Panel, Industrial Grade with Platic Shell (IP65 on front)

ASIC Information

T5L1 ASIC

T5L1 ASIC Developed by DWIN. Mass production in 2019,1MBytes Nor Flash on the chip, 512KBytes used to store the user database.
Rewrite cycle: over 100,000 times

Display

Color	16.7M（16777216） colors
LCD Type	IPS
Viewing Angle	Wide viewing angle, 85°/85°/85°/85° (L/R/U/D)
Active Area（A.A）	93.20mm (W) ×55.76mm (H)
Resolution	480×800
Backlight	LED
Brightness	250nit

Voltage & Current

Operating Voltage	10~36V,typical value of 12V
Operating Current	VCC = 12V, max backlight,120mA
Operating Current	VCC = 12V, backlight off,60mA

Interface

Mode	UART2: RS232 UART4: RS232 (Only available after OS configuration) UART5: RS485 (Only available after OS configuration)
UART2,4 Voltage Level	Test Condition	Min	Typ	Max	Unit
	Output 1	-	-5.0	-3.0	V
	Output 0	3.0	5.0	-	V
	Input 1	-15.0	-5.0	-	V
	Input 0	-	5.0	15.0	V
UART2,4 Baud Rate	3150~3225600bps, typical value of 115200bps
UART5 Voltage Level	Test Condition	Min	Typ	Max	Unit
	Output 1	2.5	5.0	-	V
	Output 0	-	-5.0	-2.5	V
	Input 1	0	2.5	-	V
	Input 0	-	-2.5	-0.2	V
UART5 Baud Rate	3150~921600bps, typical value of 115200bps
Data Format	UART2: N81 UART4: N81/E81/O81/N82 ,4 modes (O Sconfiguration) UART5: N81/E81/O81/N82 ,4 modes (O Sconfiguration)
Interface Cable	8Pin_3.81mm Socket

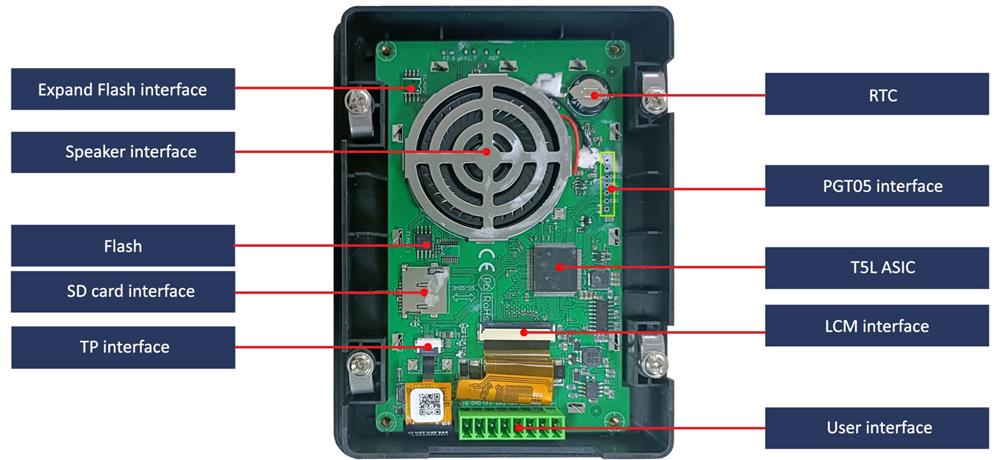

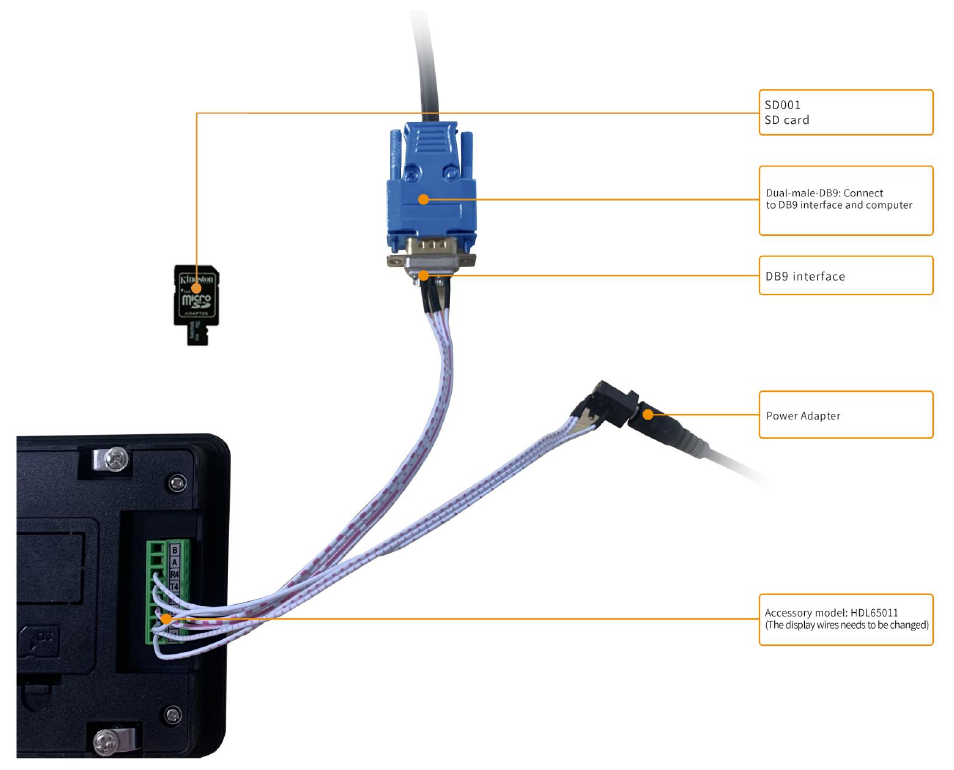

Display Connection

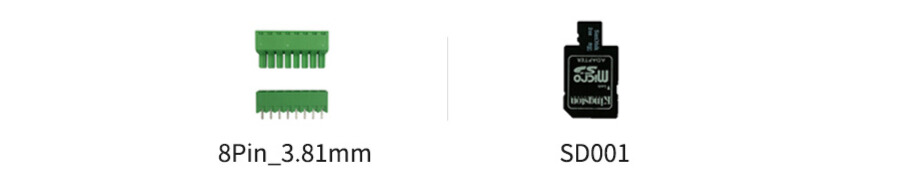

Accessories (Selectable in Above Menu)

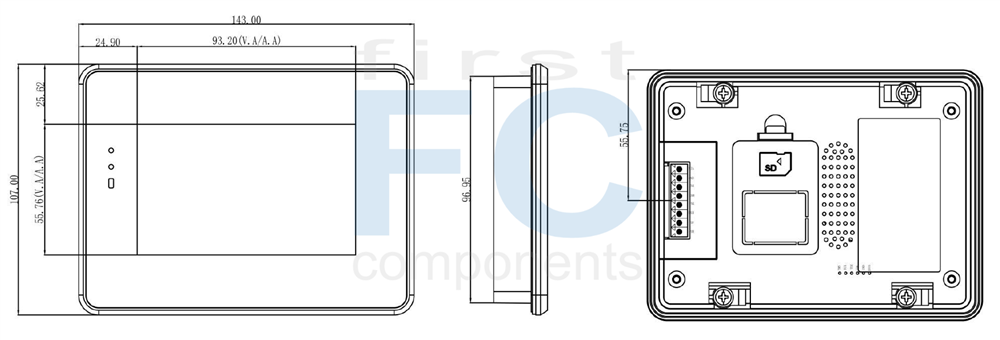

DRAWING

SKU: DMG80480T043_A5WTC

Brand: DWIN

Available: Yes

Be the first to review this product

Accessory Kit

Display Connector
Added Accessory 1
Added Accessory 2

Price Breaks

Quantity

10+

Price

€68.90

€61.40

€56.50

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€68.90 excl tax
