DMG80480T043_09WTC

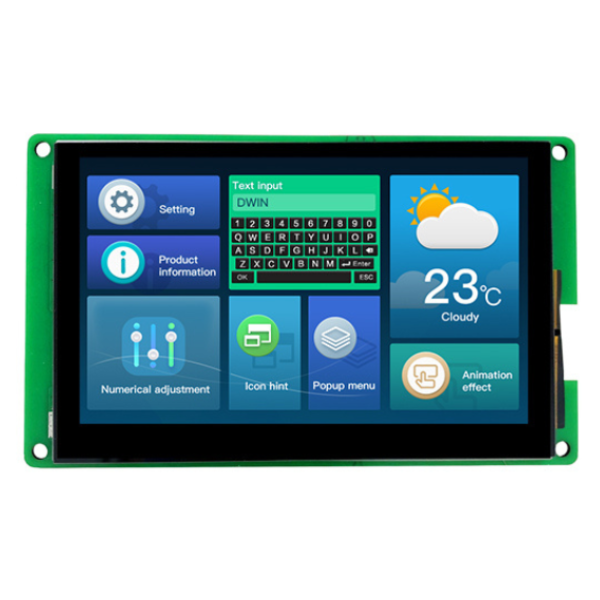

TFT 4.3" 800x480, Intelligent T5L UART COB, High Brightness 800cd/m², Wide View Angle (IPS), Capacitive Touch Panel, Industrial Grade

Media



Display

Color 262K colors
LCD Type IPS, TFT LCD
Viewing Angle Wide viewing angle, 85°/85°/85°/85° (L/R/U/D)
Display Area(A.A) 93.60mm (W)×56.16mm (H)
Resolution 800×480Pixel
Backlight LED
Brightness 800nit



Voltage & Current

Power Voltage 6~36V
Operation Current VCC = +12V, Backlight on
VCC = +12V, Backlight off



Interface

LCM interface FPC40 0.5mm, RGB interface
RTP interface FPC4 1.0mm
Baudrate 3150~3225600bps
Output Voltage Output 1, Iout = 1mA;3.0~3.3 V
Output 0, Iout =-1mA;0~0.3 V
Input Voltage
(RXD)
Input 1, Iin = 1mA; 2.4~5.0V
  Input 0, Iin = -1mA; 0~0.5V

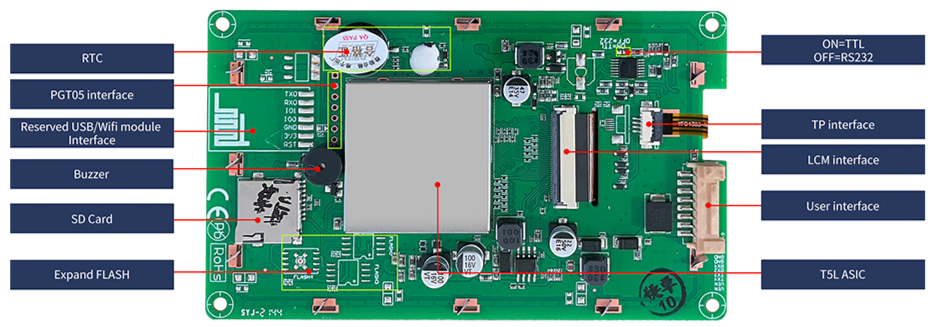

User Interface 8Pin 2.0mm socket for power supply and serial communication. Download rate(typical value): 12KByte/s
UART2: ON=TTL/CMOS; OFF=RS232
UART4: ON=TTL/CMOS; OFF=RS232(Only available after OS
configuration)
Expand Flash Expandable to 64Mbytes NOR Flash or 48Mbytes NOR Flash+512Mbytes
NAND Flash
Buzzer 3V passive buzzer. Power: <1W
SD interface FAT32. Download files by SD interface can be displayed in statistics. Download rate: 4Mb/s
Reserved module
interface
Wi-Fi module: connect to the cloud platform to update remotely
USB module: download files by USB
PGT05 interface When product crashes by accident, use PGT05 to update DGUS
kernel and make the product return to normal



Display Connection





Accessories (Selectable in Above Menu)

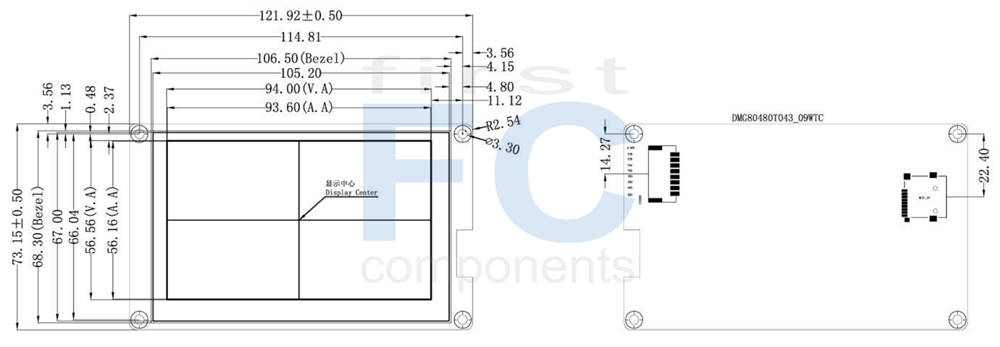

DRAWING

SKU: DMG80480T043_09WTC
Brand: DWIN
Available: Yes
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€67.80
€60.40
€55.60

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€67.80 excl tax

Media



Display

Color 262K colors
LCD Type IPS, TFT LCD
Viewing Angle Wide viewing angle, 85°/85°/85°/85° (L/R/U/D)
Display Area(A.A) 93.60mm (W)×56.16mm (H)
Resolution 800×480Pixel
Backlight LED
Brightness 800nit



Voltage & Current

Power Voltage 6~36V
Operation Current VCC = +12V, Backlight on
VCC = +12V, Backlight off



Interface

LCM interface FPC40 0.5mm, RGB interface
RTP interface FPC4 1.0mm
Baudrate 3150~3225600bps
Output Voltage Output 1, Iout = 1mA;3.0~3.3 V
Output 0, Iout =-1mA;0~0.3 V
Input Voltage
(RXD)
Input 1, Iin = 1mA; 2.4~5.0V
  Input 0, Iin = -1mA; 0~0.5V
User Interface 8Pin 2.0mm socket for power supply and serial communication. Download rate(typical value): 12KByte/s
UART2: ON=TTL/CMOS; OFF=RS232
UART4: ON=TTL/CMOS; OFF=RS232(Only available after OS
configuration)
Expand Flash Expandable to 64Mbytes NOR Flash or 48Mbytes NOR Flash+512Mbytes
NAND Flash
Buzzer 3V passive buzzer. Power: <1W
SD interface FAT32. Download files by SD interface can be displayed in statistics. Download rate: 4Mb/s
Reserved module
interface
Wi-Fi module: connect to the cloud platform to update remotely
USB module: download files by USB
PGT05 interface When product crashes by accident, use PGT05 to update DGUS
kernel and make the product return to normal



Display Connection





Accessories (Selectable in Above Menu)





DRAWING

Products specifications
Brand DWIN
Size 4.3"
Resolution 800x480
Viewing Area (mm) 94.00x56.56
Active Area (mm) 93.60x56.16
Color Full Color
Nr. Of Color 262K
Operating System DGUSII OS
Power supply 12V
Display Interface UART(TTL)/RS232
Display IC DWIN ASIC T5L0
View Angle IPS
Sunlight Readable High 601~1200cd/m²
Touch Panel Capacitive
O. Temperature (°C) -20~70
Preferred - Not Preferred Preferred
