DMG80480T035_01WTC

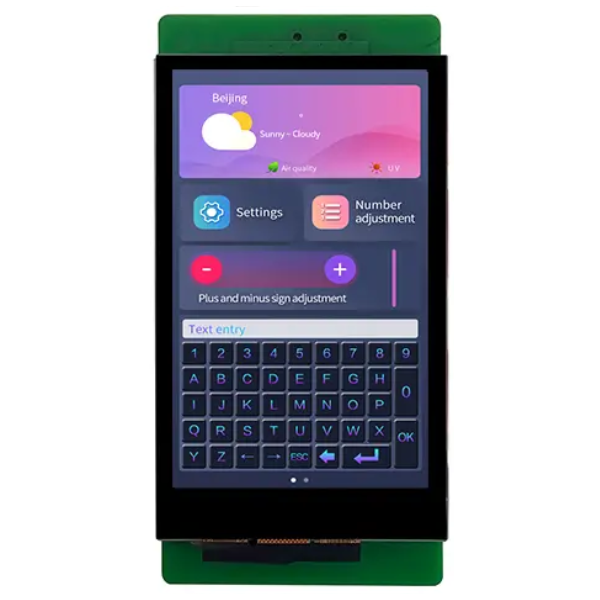

Picture of DMG80480T035_01WTC Picture of DMG80480T035_01WTC
TFT 3.5" 480x800, Intelligent T5L UART COB, 250cd/m², Wide View Angle (IPS), Capacitive Touch Panel, Industrial Grade

ASIC Information

T5L0 ASIC Developed by DWIN. Mass production in 2020,1MBytes Nor Flash on the chip, 512KBytes used to store the user database. Rewrite cycle: over 100,000 times



Display

Color 18-bit 6R6G6B
LCD Type IPS, TFT LCD
Viewing Angle Wide viewing angle, 85°/85°/85°/85°（L/R/U/D）
Display Area（A.A） 75.60mm (W)×45.36mm (H)
Resolution 480*800 pixels
Backlight LED
Brightness 250nit



Voltage & Current

Power Voltage 4.5~5.5V, typical value of 5V
Operation Current VCC=5V, max backlight ,180mA
VCC=5V, backlight off ,85mA



Interface

LCM interface FPC40_0.5mm, 3SPI+RGB interface
RTP interface 4Pin_1.0mm interface
CTP interface FPC6_0.5mm, IIC interface
Baudrate 3150~3225600bps
Output Voltage Output 1,Iout = 1mA;3~3.3 V
Output 0,Iout =-1mA;0~0.3 V
Input Voltage
（RXD）		 Input 1,Iin = 1mA;2.4~5.0V
  Input 0,Iin = -1mA;0~0.5V
User Interface 10Pin_1.0mm latching socket for power supply and serial communication. Download rate(typical value): 12KByte/s
UART2: ON=TTL/CMOS;
UART4: ON=TTL/CMOS; (Only available after OS
configuration)
Expand Flash 16MBytes NOR Flash, for fonts, pictures and audio files. Rewrite cycle: over 100,000 times
Buzzer 3V passive buzzer. Power: <1W
RTC Super-capacitor for power supply. Accuracy: 1s/24h. It can work normally for
30 days after power failure
SD interface FAT32. Download files by SD interface can be displayed in statistics. Download rate: 4Mb/s
PGT05 interface When product crashes by accident, you can use PGT05 to update DGUS
kernel and make the product return to normal



Display Connection



Accessories (Selectable in Above Menu)



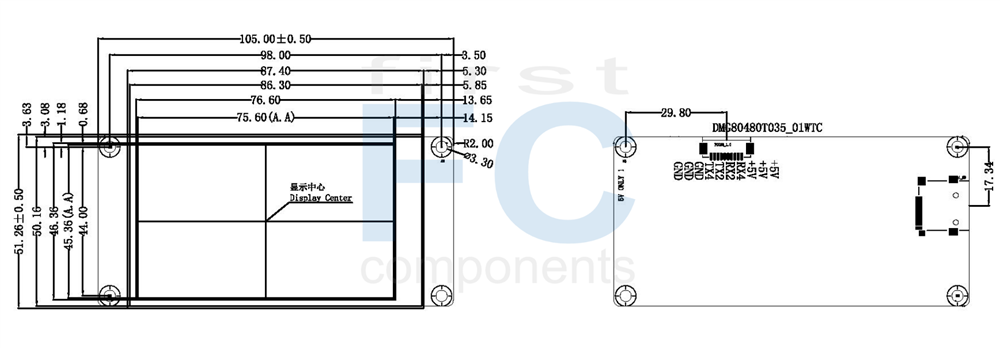

DRAWING

SKU: DMG80480T035_01WTC
Brand: DWIN
Available: Yes
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€62.20
€55.40
€51.00

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€62.20 excl tax
