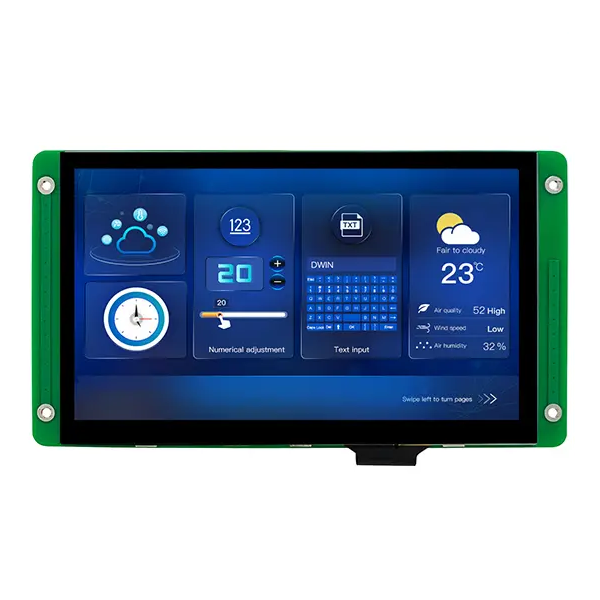

DMG10600T070_09WTC

TFT 7" 1024x600, Intelligent T5L UART COB, High Brightness 650cd/m², Wide View Angle (IPS), Capacitive Touch Panel, Industrial Grade

Display

Color 24-bit 8R8G8B
LCD Type IPS, TFT LCD
Viewing Angle Wide viewing angle, 85°/85°/85°/85° (L/R/U/D)
Display Area(A.A) 154.21mm (W)×85.92mm (H)
Resolution 1024×600 Pixel
Backlight LED
Brightness 650nit



Voltage & Current

Power Voltage 6~36V
Operation Current VCC=12V, max backlight,320mA
VCC =12V, Backlight off,120mA



Interface



LCM interface FPC50_0.5mm, TTL interface
RTP interface 4Pin_1.0mm interface
CTP interface COB structure, IIC interface
Baud rate 3150~3225600bps,typical value of 115200bps
Output Voltage Output 1, Iout = 1mA;3.0~3.3 V
  Output 0, Iout =-1mA;0~0.3 V
Input Voltage
(RXD)
Input 1, Iin = 1mA;2.4~5.0V
  Input 0, Iin = -1mA;0~0.5V
User Interface 8Pin_2.0mm socket for power supply and serial communication. Download rate(typical value): 12KByte/s
UART2: ON=TTL/CMOS; OFF=RS232;
UART4: ON=TTL/CMOS; OFF=RS232
Flash Expandable to 64Mbytes NOR Flash or 48Mbytes NOR Flash+512Mbytes
NAND Flash is acceptable
 Buzzer 3V passive buzzer. Power: <1W
SD interface FAT32. The finished project will be downloaded by SD card or uart port. Download rate: 4Mb/s

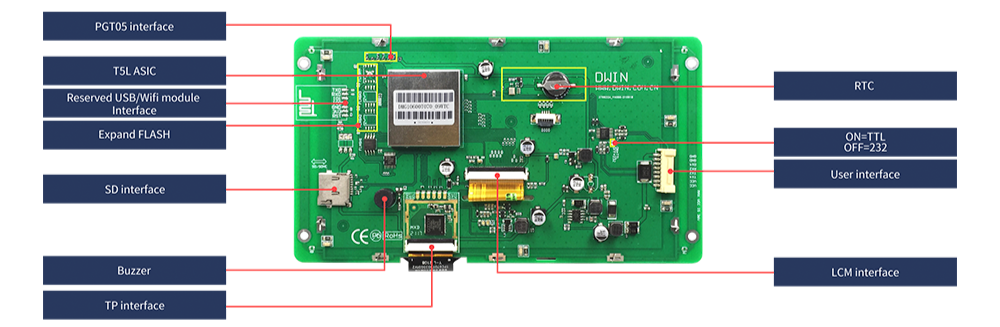

Reserved module
interface
Wi-Fi module: connect to the DWIN cloud platform to update remotely
USB module: you can download files by USB flash disk
PGT05 interface When product crashes by accident, you can use PGT05 to update DGUS
kernel and let the product return to normal condition



Display Connection





Accessories (Selectable in Above Menu)





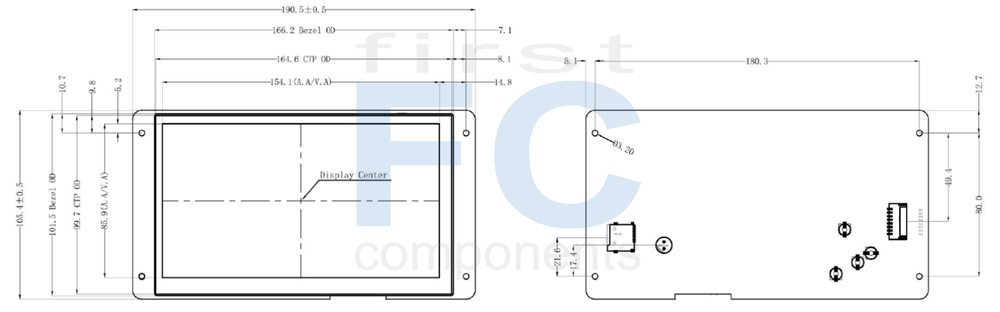

DRAWING

SKU: DMG10600T070_09WTC
Brand: DWIN
Available: Yes
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€80.10
€73.90
€71.20

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€80.10 excl tax

Display

Color 24-bit 8R8G8B
LCD Type IPS, TFT LCD
Viewing Angle Wide viewing angle, 85°/85°/85°/85° (L/R/U/D)
Display Area(A.A) 154.21mm (W)×85.92mm (H)
Resolution 1024×600 Pixel
Backlight LED
Brightness 650nit



Voltage & Current

Power Voltage 6~36V
Operation Current VCC=12V, max backlight,320mA
VCC =12V, Backlight off,120mA



Interface



LCM interface FPC50_0.5mm, TTL interface
RTP interface 4Pin_1.0mm interface
CTP interface COB structure, IIC interface
Baud rate 3150~3225600bps,typical value of 115200bps
Output Voltage Output 1, Iout = 1mA;3.0~3.3 V
  Output 0, Iout =-1mA;0~0.3 V
Input Voltage
(RXD)
Input 1, Iin = 1mA;2.4~5.0V
  Input 0, Iin = -1mA;0~0.5V
User Interface 8Pin_2.0mm socket for power supply and serial communication. Download rate(typical value): 12KByte/s
UART2: ON=TTL/CMOS; OFF=RS232;
UART4: ON=TTL/CMOS; OFF=RS232
Flash Expandable to 64Mbytes NOR Flash or 48Mbytes NOR Flash+512Mbytes
NAND Flash is acceptable
 Buzzer 3V passive buzzer. Power: <1W
SD interface FAT32. The finished project will be downloaded by SD card or uart port. Download rate: 4Mb/s
Reserved module
interface
Wi-Fi module: connect to the DWIN cloud platform to update remotely
USB module: you can download files by USB flash disk
PGT05 interface When product crashes by accident, you can use PGT05 to update DGUS
kernel and let the product return to normal condition



Display Connection





Accessories (Selectable in Above Menu)





DRAWING

Products specifications
Brand DWIN
Size 7"
Resolution 1024x600
Viewing Area (mm) 154.10×85.90
Active Area (mm) 154.10×85.90
Color Full Color
Nr. Of Color 16.7M
Operating System DGUSII OS
Power supply 12V
Display Interface UART(TTL)/RS232
Display IC DWIN ASIC T5L2
View Angle IPS
Sunlight Readable High 601~1200cd/m²
Touch Panel Capacitive
O. Temperature (°C) -20~70
Preferred - Not Preferred Preferred
Download
Products specifications
Brand DWIN
Size 7"
Resolution 1024x600
Viewing Area (mm) 154.10×85.90
Active Area (mm) 154.10×85.90
Color Full Color
Nr. Of Color 16.7M
Operating System DGUSII OS
Power supply 12V
Display Interface UART(TTL)/RS232
Display IC DWIN ASIC T5L2
View Angle IPS
Sunlight Readable High 601~1200cd/m²
Touch Panel Capacitive
O. Temperature (°C) -20~70
Preferred - Not Preferred Preferred
