0.66'' COG+PCB OLED WEA006448A

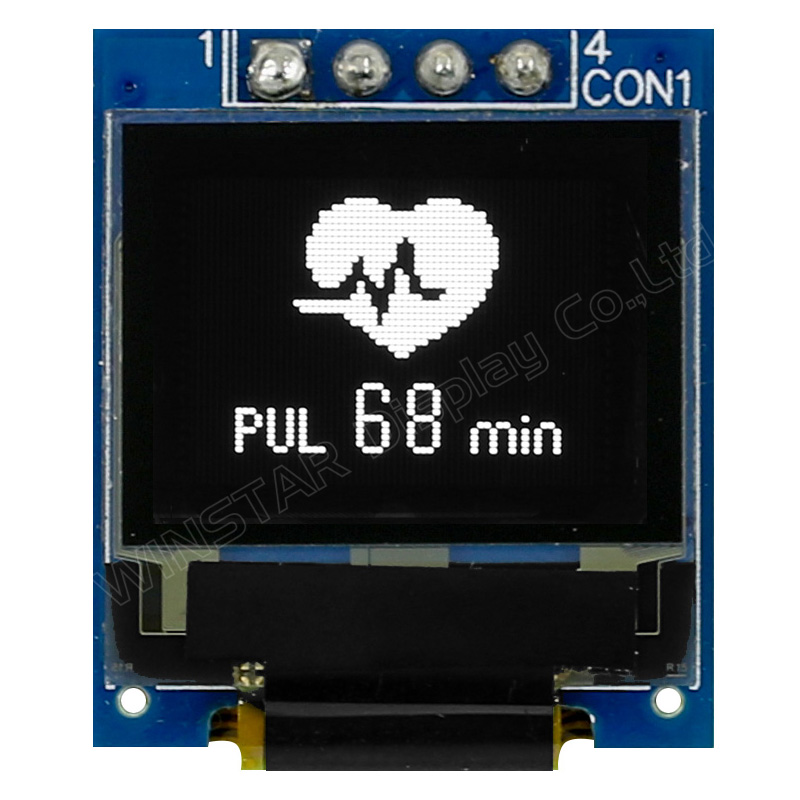

WEA006448A is a 0.66'' miniature Graphic OLED made of 64x48; COG structure with PCB board with 4 metal pins on module. This module is built in with SSD1306BZ IC, it communicates via I2C interface only, supply voltage for Logic 3V, 1/48 duty cycle. WEA006448A is a micro OLED display makes its self emitting, no backlight is required. The dimension size of PCB board is very close to this 0.66” OLED panel size which makes it easily to design on customers' applications. Operating temperatures from -40℃ to +80℃; Storage temperatures from -40℃ to +85℃. The released emitting colors for this item is available in white. This module is suitable for industrial devices, smart home applications, portable devices, health devices, meter devices, etc.
Go to the Product page
|
![]() ![]() ![]() ![]() |
0.96'' COG+PCB OLED WEA012864D-01 Version
Winstar released two new COG structure OLED with PCB board models, WEA012864D-01 version and WEA012864D-03 version; these two OLED panels are made of 128x64 pixels, diagonal size 0.96''. WEA012864D-01 module is built in with SSD1306BZ IC, it supports I2C (default), SPI interface optional, VCC 3V /5V, I/O level 5V to 3V, with conversion circuit, 1/64 duty cycle. The WEA012864D-01 model has PCB outline size 38.0x28.5x2.37 mm with mounting holes on board and 8 metal pins on module. The released emitting colors for WEA012864D-01 is available in white, yellow and blue. Operating temperatures from -40℃ to +80℃; Storage temperatures from -40℃ to +85℃. This 0.96'' OLED module is suitable for smart controls, industrial controls for heater, smart home applications, medical devices, etc.
Go to the Product page
|
![]() |
0.96'' COG+PCB OLED WEA012864D-03 Version
WEA012864D-03 version OLED module is a diagonal size 0.96'' made of 128x64 pixels COG OLED display with PCB board on it. WEA012864D-03 module is built in with SSD1306BZ IC, it communicates via I2C interface only, VCC 3V /5V, I/O level 5V to 3V, with conversion circuit, 1/64 duty cycle. The WEA012864D-03 model has a smaller PCB than WEA012864D-01 version of which outline size is 27.3x27.3x2.37mm with mounting holes on board and 4 metal pins on module. The released emitting color for this item is available in white and yellow. Operating temperatures from -40℃ to +80℃; Storage temperatures from -40℃ to +85℃. This 0.96'' OLED module is suitable for smart controls, industrial controls, smart home applications, medical devices, etc.
Go to the Product page
|
![]() |
Comparison: WEA012864D-01 vs. WEA012864D-03 Version
Model No. | WEA012864D-01 | WEA012864D-03 |
---|---|---|
Diagonal Screen Size | 0.96 inch | 0.96 inch |
Dot Matrix | 128 × 64 | 128 × 64 |
Module Size (mm) | 38.0 x 28.5 x 2.37 | 27.3 x 27.3 x 2.37 |
VCC | 3V /5V | 3V/ 5V |
I/O level 5V to 3V | With conversion circuit | With conversion circuit |
Interface | Default I2C / SPI optional | I2C |
Pin Out | 8 pins | 4 pins |
Driver IC | SSD1306BZ | SSD1306BZ |
Available color | White, yellow, blue | White, yellow |
Picture | ![]() |
![]() |
2.23'' COG + FR + PCB OLED WEP012832A
Winstar released a new COG with PCB OLED WEP012832A model; it is 2.23" diagonal made of 128x32 pixels, it's very readable due to the high contrast and bigger size of OLED display. The module is built in with SSD1305Z IC, it supports 6800/8080 8-bit parallel, I2C, and 4-Wire SPI interface, supply voltage for Logic from 3V ~ 5V. The WEP012832A is a COG with PCB OLED display which is having a 1x20 pin header and a 1x8 pin header on module, also having mounting holes on PCB board. We provide a mini vibration motor and buzzer optional for this WEP012832A module. Customers can also choose Hot Bar Soldering or metal pins with FPC and connector (part no. will be different) for every specific application. The released emitting color for this item is available in white. Operating temperatures from -40℃ to +80℃; Storage temperatures from -40℃ to +85℃. This 2.23'' OLED module is suitable for smart home applications, medical devices, smart controls, etc.
