AMOLED Active Matrix Full Colour OLED

AMOLED Active Matrix Full Colour OLED

AMOLED: Active Matrix Full Colour OLED



FIRST Components launches a new series of AMOLED Full Colour Display of Next Vision Display.

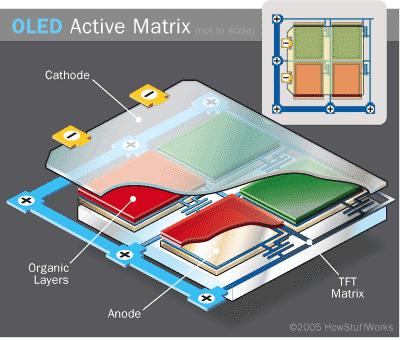

An AMOLED display consists of an active matrix of OLED pixels generating light (luminescence) upon electrical activation that have been deposited or integrated onto a thin-film-transistor (TFT) array, which functions as a series of switches to control the current flowing to each individual pixel.

Typically, this continuous current flow is controlled by at least two TFTs at each pixel (to trigger the luminescence), with one TFT to start and stop the charging of a storage capacitor and the second to provide a voltage source at the level needed to create a constant current to the pixel, thereby eliminating the need for the very high currents required for passive-matrix OLED operation.



 KEY FEATURES

  • Full color
  • Great quality / High reliability
  • High resolution / High brightness / Extreme contrast
  • Sunlight readable
  • Wide viewing angle
  • Fast response time
  • Low power consumption
  • Super slim
  • Flexible
  • Wide operation temperature




AVAILABLE SIZES

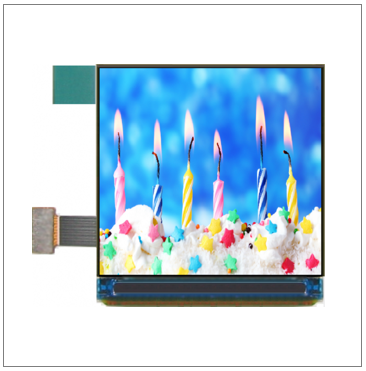

 SIZE 1.63"







        FEATURES

  • Resolution: 320xRGBx320
  • Module size: 32.08(H) × 36.48(V) × 0.7(T)mm
  • Active area: 29.28(H) x 29.28(V)mm
  • Interface: MIPI DSI
  • Driver IC: Raydiun RM69032

        AVAILABLE PRODUCTS...

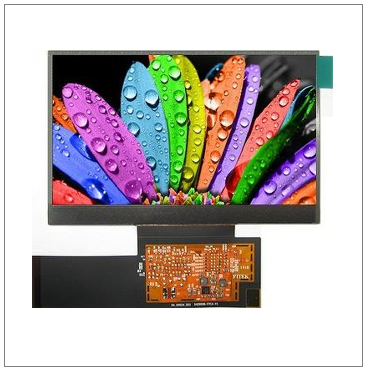

SIZE 4.30"



        FEATURES

  • Resolution: 480xRGBx272
  • Module size: 100.64(H) × 65.47(V) × 1.93(T)mm
  • Active area: 95.04(H) x 53.85(V)mm
  • Interface: RGB + SPI
  • Driver IC:  PI69032

       AVAILABLE PRODUCTS...

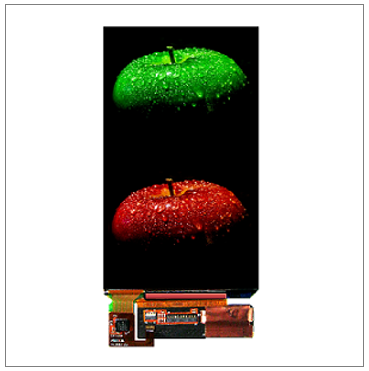

 SIZE 4.97"



      FEATURES

  • Resolution: 720xRGBx1280
  • Module size: 65.92(H) × 118.64(V) × 1.00(T)mm
  • Active area: 61.92(H) x 110.08(V)mm
  • Interface: MIPI DSI
  • Driver IC:  PI69052
