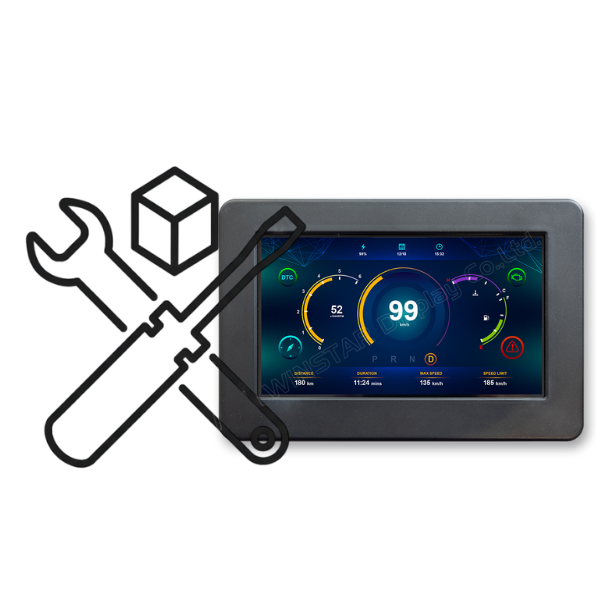

    Demo Accessories for TFT 7" 1024x600, RS485 Modbus interface & GPIO Support, Wide View Angle (IPS), Capacitive touch panel (GG), with IP54 Plastic Housing (Display module NOT included)
    Brand: Winstar
    Cod.: WWSSDEMOBOX-03#

    Kit accessori

    Disponibilità: Disponibile
    €73,40 IVA esclusa
    i h

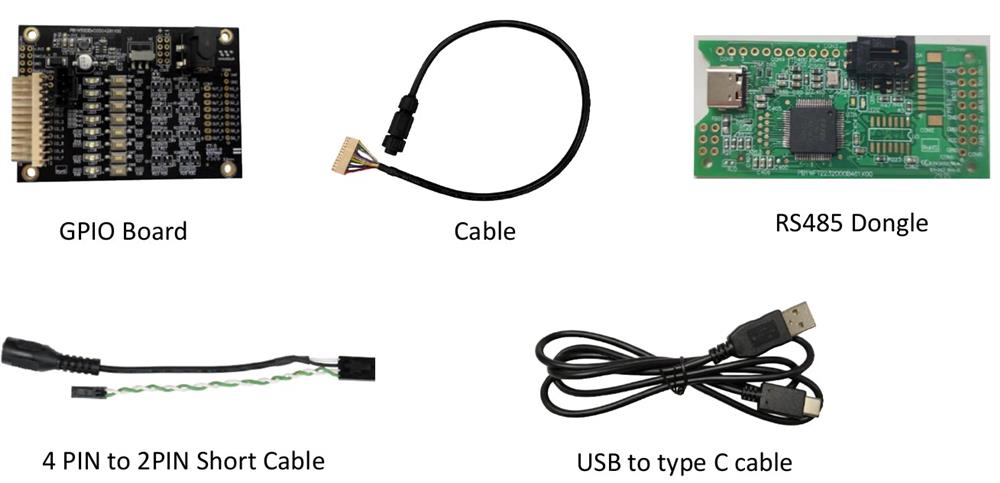

    Checking List

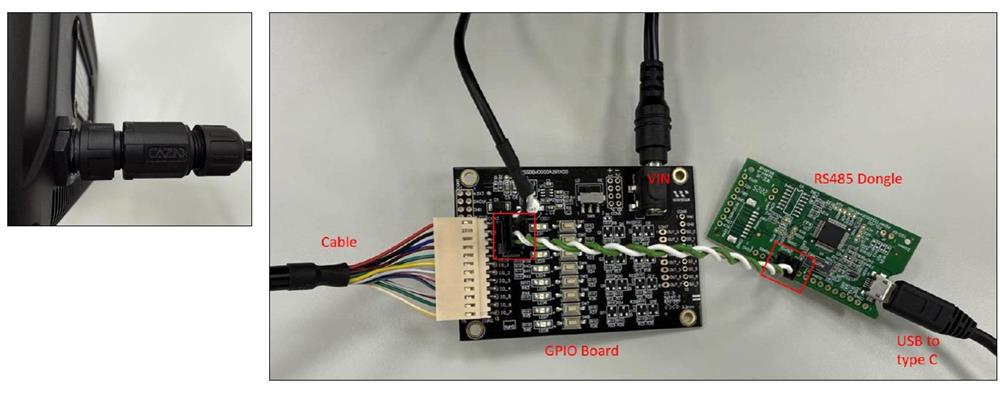

    Connection



    Display Usage

    Functional description

    Smart Display can be used to display the coordinate, status and data information provided by the connected HOST device. Customers can configure the position coordinates they want to display in normal operation mode.

    The Display is designed to be easily connected to a controller network, and to use the register type of Holding Register.

    Splash Screen

    The default splash image is shown below.

    This product is produced as a generic product. If you require a custom splash image for your application, contact us to discuss.


    Default Selection

    Press the preferred application and hold for 3 seconds for the first time power on.


    Winstar's Smart Display Default Selection


    Acquisition of Displayed Data

    Smart Display uses the Modbus protocol to get and send the data.

    On Config mode, customers can set the coordinates or type of objects; On Display mode, customers can send and get data of objects.

    Configuring the Display

    Winstar Smart Display RS-485 series offers an out-of-the-box Modbus development experience that will lower customers' development costs and speed time-to-market expectations.

    The Smart Display can use wide-temperature are designed to support control applications in harsh operating conditions, which designed to be connected to a variety of different situation combinations, such as automotive, marine, power generation and oil-and-gas.

    The Smart Display comes with standard UI objects to get customers project off the ground quickly. If customers need custom UI objects support, our engineers are here to help. Send over your contents in PNG/JPG format, we will send over a new set of UI objects within 3~5 working days.

    The Smart Display is defined as a slave device, which is controlled by master device via RS485 bus command to render display content on the display screen and return touch event data with protocol objects.

    Example Screen Layout (Industry application)

    The screen layout described in this section is intended to demonstrate the settings of screen items that can be used in an industry application situation.

    Example Screen Layout (Vehicle automotive)

    The screen layout described in this section is intended to demonstrate the settings of screen items that can be used in a vehicle automotive situation.


    Example Screen Layout (Medical application)

    The screen layout described in this section is intended to demonstrate the settings of screen items that can be used in a Medical application situation.

    Specifiche di prodotto
    Size 7"
    Resolution 1024x600
    Active Area (mm) 154.21x85.92
    Color Full Color
    Power supply 12V
    Display Interface RS485 + GPIO
    View Angle IPS
    Frame Yes
    Touch Panel Capacitive
    O. Temperature (°C) -20~70
    Preferred - Not Preferred Preferred
    *
    *
    *
    *
