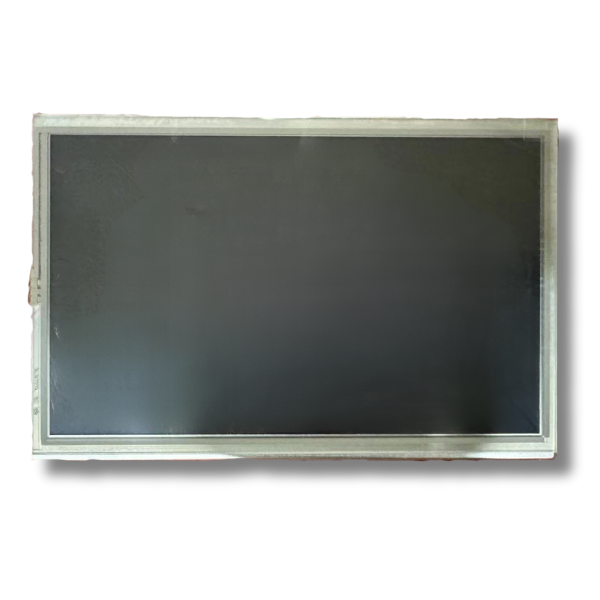

NT070-R001JD

TFT 7" 800x480 LCD Panel, Interface RGB (40pin), 400cd/m², Resistive touch panel (Replacement Evervision P/N VGG804806-6UFLWB)

DRAWING

Item	Dimension	Unit
Size	7.0	inch
Dot Matrix	800 × RGB × 480 (TFT)	dots
Module dimension	166.6 (W) × 109.4 (H) × 11.3 (T)	mm
Active area	152.4 × 91.44	mm
Pixel pitch	0.1905 × 0.1905	mm
LCD type	TFT, Normally White, Transmissive
View Angle	6 O'clock
TFT Interface	18-bit RGB
With/Without TP	With RTP

Item	Symbol	Min	Typ	Max	Unit
Operating Temperature	TOP	-30	－	+70	℃
Storage Temperature	TST	-30	－	+80	℃

	Symbol	Condition	Min.	Typ.	Max.
Supply Voltage for LCM	VCC	-	3.0	3.3	3.6	V
Supply Current for LCM	ICC	-	-	(190)	(270)	mA

SKU: NT070-R001JD

Brand: Next Vision Display

Disponibile: Si

Kit Accessori

Prezzi per quantità

Quantità

10+

Prezzo

€121,10

€111,00

€106,50

Per quantita’ maggiori di 25pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

€121,10 IVA esclusa

Item	Dimension	Unit
Size	7.0	inch
Dot Matrix	800 × RGB × 480 (TFT)	dots
Module dimension	166.6 (W) × 109.4 (H) × 11.3 (T)	mm
Active area	152.4 × 91.44	mm
Pixel pitch	0.1905 × 0.1905	mm
LCD type	TFT, Normally White, Transmissive
View Angle	6 O'clock
TFT Interface	18-bit RGB
With/Without TP	With RTP

Item	Symbol	Min	Typ	Max	Unit
Operating Temperature	TOP	-30	－	+70	℃
Storage Temperature	TST	-30	－	+80	℃

	Symbol	Condition	Min.	Typ.	Max.
Supply Voltage for LCM	VCC	-	3.0	3.3	3.6	V
Supply Current for LCM	ICC	-	-	(190)	(270)	mA
