Eval Kit for TFT 10.1" 1024x600, CAN CUSTOM ID & GPIO support, High Brightness 900cd/m², Wide View Angle (IPS), Capacitive touch panel (GG)

DESCRIPTION

    Link to 'SMART GUI BLIDER' INTRODUCTION & VIDEO

10.1" Smart Display (Custom CAN ID series) Features

  1. + 12V power supply input, the power consumption is around 6W.
  2. Self testing after booting function.
  3. CAN bus communication interface.
  4. Supports Custom CAN ID protocol. Default baud rate is at 250KBps.
  5. Built in 16MB flash memory, store the font and Object Dictionary Data.
  6. Supports capacitive touch screen (CTP).
  7. Embedded buzzer controlled by Master Device.

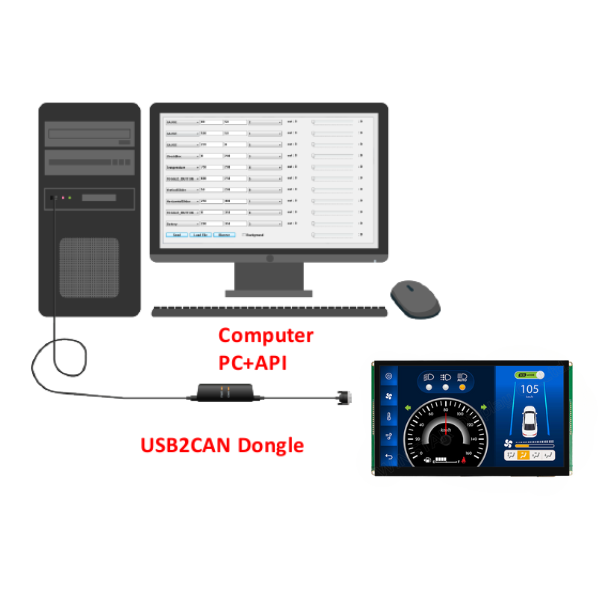

  8. Demo set HOST can be used on multiple platforms, such as Computr (with USB to CAN Dongle), MCU, Raspberry Pi (with PiCAN2).
  9. GPIO PIN support.
  10. Design the UI without writing a line of code by Winstar GUI builder! (►Link to GUI Builder Introduction).



DRAWING





SPECIFICATIONS

General information

ItemStandard ValueUnit
Operating voltage 8C~28V dynamic Vdc
Communication Interface CAN bus Vpp
MCU STM32F746 N/A
Flash Memory 16 MB
LCD display size 10.1 inch
Dot Matrix 1024 x RGB x 600(TFT) dots
Module dimension 248.8(W) x 143(H) x 23.2(D) mm
Active area 222.72 (H) x 125.28(V) mm
Dot pitch 0.2175(W) x 0.2088(H) mm
Brightness Min:800; Typ:900
LCD type LED, Normally Black, Transmissive
View Direction 85/85/85/85
Aspect Ratio 16:9
Touch Panel With CTP
Surface Glare


Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage VCC － 8 12 28 V
Supply LCM current I - - 720 - mA

Bom

ItemDescription
LCM WF101-­1024600JL#0SP8-­FC
PCBA SV10010R100JB00N0106



Interface Pin Function

CON1 definition

PinSymbolFunctionRemark
1 +12V Power supply 12V input Input
2 GND Power supply GND input Input
3 CAN_H CAN bus D+ I/O
4 CAN_L CAN bus D- I/O
5   GND Power supply GND input GND
6 GND Power supply GND input GND
7 Reserve USB_D- Reserve
8 Reserve USB_D+ Reserve
9 NC - -
10 Reserve USART RX interface(Reserve) Reserve
11 Reserve USART TX interface(Reserve) Reserve
12 GND Power supply GND input GND
13 +12V Power supply12V input Input
14 NC - -
15 NC - -
16 GND Power supply GND input Input


CON2 definition

PinSymbolFunctionRemark
1 +3V3 3.3V power for JTAG interface Output
2 SWCLK CLK pin for JTAG interface Input
3 GND GND for JTAG interface Output
4 SWDIO Data pin for JTAG interface I/O
5   NRST Reset pin for JTAG interface Input
6 GND GND Output
7 Wkup/ IO_8 (PA0) for system Resume
from suspend (Reserve)		 WKup,ADC,Timer,Event,I/O
8 /RST Reset (active Low) I
9 IO_0 IO_0 ADC,DAC,Timer,Event,I/O
10 IO_1 IO_1 ADC,Timer,Event,I/O
11 IO_2 IO_2 ADC,Timer,Event,I/O
12 IO_3 IO_3 RST,Timer,Event,I/O
13 IO_4 IO_4 RST,Timer,Event,I/O
14 IO_5 IO_5 ADC,Timer,Event,I/O
15 IO_6 IO_6 RST,Timer,Event,I/O
16 IO_7 IO_7 RST,Timer,Event,I/O



Display Usage

Functional description

Smart Display can be used to display the coordinate, status and data information provided by the connected HOST device. Customers can configure the position coordinates they want to display in normal operation mode (Node ID = 0x7B).

The Display is designed to be easily connected to a controller network, and to operate with minimum setup or knowledge of the SDO configuration on the controllers.


Splash Screen

The default splash image is shown below:

This product is produced as a generic product. If you require a custom splash image for your application, contact us to discuss.


Default Selection

Press the preferred application and hold for 3 seconds for the first time power on.

Default Selection



Example Screen Layout (Industry application)

The screen layout described in this section is intended to demonstrate the settings of screen items that can be used in an industry application situation.


Example Screen Layout (Vehicle automotive)

The screen layout described in this section is intended to demonstrate the settings of screen items that can be used in a vehicle automotive situation.


Example Screen Layout (Medical application)

The screen layout described in this section is intended to demonstrate the settings of screen items that can be used in a Medical application situation.

SKU: WWSSDEMO101J-AA-33#
Brand: Winstar
Disponibile: No
Si tratta dela prima recensione per questo prodotto
Kit Accessori
€247,50 IVA esclusa

DESCRIPTION

    Link to 'SMART GUI BLIDER' INTRODUCTION & VIDEO

10.1" Smart Display (Custom CAN ID series) Features

  1. + 12V power supply input, the power consumption is around 6W.
  2. Self testing after booting function.
  3. CAN bus communication interface.
  4. Supports Custom CAN ID protocol. Default baud rate is at 250KBps.
  5. Built in 16MB flash memory, store the font and Object Dictionary Data.
  6. Supports capacitive touch screen (CTP).
  7. Embedded buzzer controlled by Master Device.
  8. Demo set HOST can be used on multiple platforms, such as Computr (with USB to CAN Dongle), MCU, Raspberry Pi (with PiCAN2).
  9. GPIO PIN support.
  10. Design the UI without writing a line of code by Winstar GUI builder! (►Link to GUI Builder Introduction).



DRAWING





SPECIFICATIONS

General information

ItemStandard ValueUnit
Operating voltage 8C~28V dynamic Vdc
Communication Interface CAN bus Vpp
MCU STM32F746 N/A
Flash Memory 16 MB
LCD display size 10.1 inch
Dot Matrix 1024 x RGB x 600(TFT) dots
Module dimension 248.8(W) x 143(H) x 23.2(D) mm
Active area 222.72 (H) x 125.28(V) mm
Dot pitch 0.2175(W) x 0.2088(H) mm
Brightness Min:800; Typ:900
LCD type LED, Normally Black, Transmissive
View Direction 85/85/85/85
Aspect Ratio 16:9
Touch Panel With CTP
Surface Glare


Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage VCC － 8 12 28 V
Supply LCM current I - - 720 - mA

Bom

ItemDescription
LCM WF101-­1024600JL#0SP8-­FC
PCBA SV10010R100JB00N0106



Interface Pin Function

CON1 definition

PinSymbolFunctionRemark
1 +12V Power supply 12V input Input
2 GND Power supply GND input Input
3 CAN_H CAN bus D+ I/O
4 CAN_L CAN bus D- I/O
5   GND Power supply GND input GND
6 GND Power supply GND input GND
7 Reserve USB_D- Reserve
8 Reserve USB_D+ Reserve
9 NC - -
10 Reserve USART RX interface(Reserve) Reserve
11 Reserve USART TX interface(Reserve) Reserve
12 GND Power supply GND input GND
13 +12V Power supply12V input Input
14 NC - -
15 NC - -
16 GND Power supply GND input Input


CON2 definition

PinSymbolFunctionRemark
1 +3V3 3.3V power for JTAG interface Output
2 SWCLK CLK pin for JTAG interface Input
3 GND GND for JTAG interface Output
4 SWDIO Data pin for JTAG interface I/O
5   NRST Reset pin for JTAG interface Input
6 GND GND Output
7 Wkup/ IO_8 (PA0) for system Resume
from suspend (Reserve)		 WKup,ADC,Timer,Event,I/O
8 /RST Reset (active Low) I
9 IO_0 IO_0 ADC,DAC,Timer,Event,I/O
10 IO_1 IO_1 ADC,Timer,Event,I/O
11 IO_2 IO_2 ADC,Timer,Event,I/O
12 IO_3 IO_3 RST,Timer,Event,I/O
13 IO_4 IO_4 RST,Timer,Event,I/O
14 IO_5 IO_5 ADC,Timer,Event,I/O
15 IO_6 IO_6 RST,Timer,Event,I/O
16 IO_7 IO_7 RST,Timer,Event,I/O



Display Usage

Functional description

Smart Display can be used to display the coordinate, status and data information provided by the connected HOST device. Customers can configure the position coordinates they want to display in normal operation mode (Node ID = 0x7B).

The Display is designed to be easily connected to a controller network, and to operate with minimum setup or knowledge of the SDO configuration on the controllers.


Splash Screen

The default splash image is shown below:

This product is produced as a generic product. If you require a custom splash image for your application, contact us to discuss.


Default Selection

Press the preferred application and hold for 3 seconds for the first time power on.

Default Selection



Example Screen Layout (Industry application)

The screen layout described in this section is intended to demonstrate the settings of screen items that can be used in an industry application situation.


Example Screen Layout (Vehicle automotive)

The screen layout described in this section is intended to demonstrate the settings of screen items that can be used in a vehicle automotive situation.


Example Screen Layout (Medical application)

The screen layout described in this section is intended to demonstrate the settings of screen items that can be used in a Medical application situation.

Specifiche di prodotto
Brand Winstar
Size 10.1"
Risoluzione 1024x601
Area Attiva (mm) 222.72x125.29
Alimentazione 12V
Interfaccia Display CAN Bus + GPIO
Angolo Visione IPS
Sunlight Readable High 601~1200cd/m²
Frame Yes
Touch Panel Capacitive
Temperatura O. (°C) -20~70
Preferred - Not Preferred Preferred
Download
Specifiche di prodotto
Brand Winstar
Size 10.1"
Risoluzione 1024x601
Area Attiva (mm) 222.72x125.29
Alimentazione 12V
Interfaccia Display CAN Bus + GPIO
Angolo Visione IPS
Sunlight Readable High 601~1200cd/m²
Frame Yes
Touch Panel Capacitive
Temperatura O. (°C) -20~70
Preferred - Not Preferred Preferred
