    WWOLEDUSBDEMO-160#

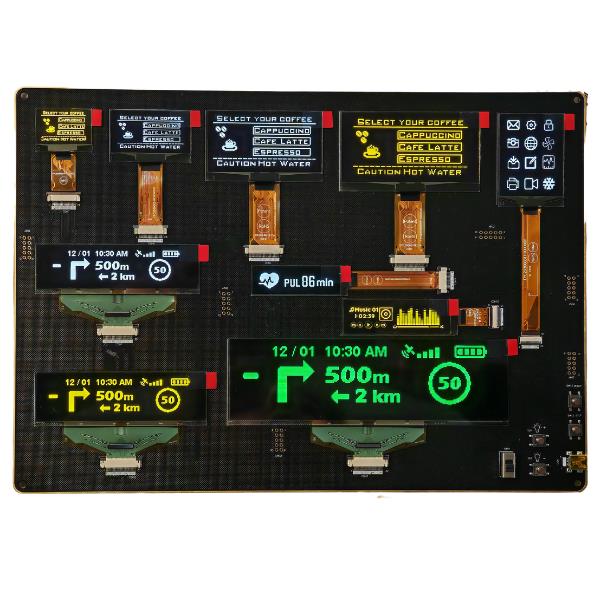

    Evaluation kit for PMOLED COG/TAB + FPC or Hot bar versions 1.1-5.5"
    Brand: Winstar
    Cod.: WWOLEDUSBDEMO-160#

    Kit accessori

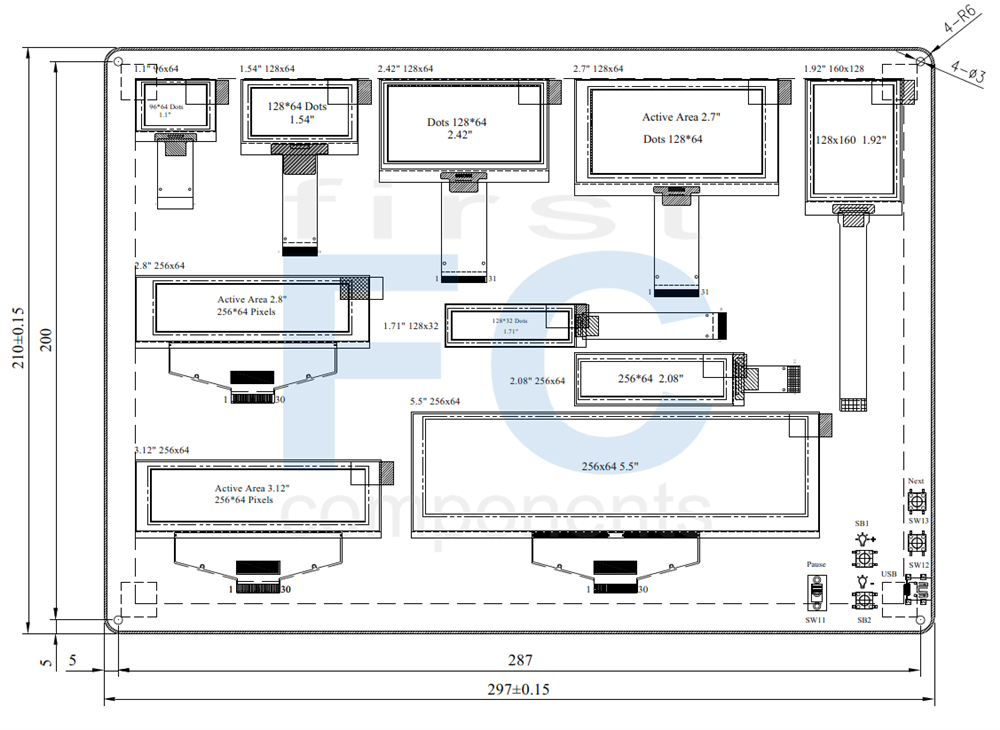

    DRAWING



    General Specification

    Item Module Module dimension (mm)
    1.1" 96*64 WEO9664L#B00-FC 29.00x22.50x01.65
    1.54" 128*64 WEO12864W#A01-FC 42.04x27.22x01.45
    2.42" 128*64 WEO12864W#G0=-­FC 60.50x37.00x02.15
    2.7"128*64 WEO12864L#K00-FC 73.00x41.86x02.15
    1.92" 160*128 WEO160128W#A00-FC 34.50x48.80x01.41
    2.8" 256*64 WEX25664W#A00-­FC 84.00x25.80x02.15
    1.71" 128*32 WEO12832W#G00-FC 50.50x15.75x02.01
    2.08" 256*64 WEO25664L#A00-FC 60.50x19.00x01.61

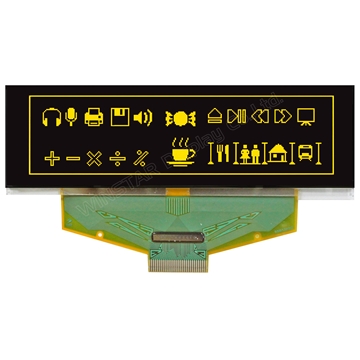

    3.12" 256*64 WEX25664L#B00-FC 88.00x27.80x02.05
    5.5" 256*64 WEX25664G#D00-FC 146.00x45.00x02.05



    Interface Description

    Component explain

    Parts Location Function explanation Remarks
    USB +5V power supply from adaptor or Notebook/PC -
    SB1 High Brightness -
    SB2 Low Brightness -
    SW11 Loop/Step Mode Function switch -
    SW12 Step Control Function (Switch to the next image) -
    SW13 Reset Function -



    Absolute Maximum Ratings

    Parameter Symbol Min Max Unit Notes
    USB Supply Voltage VDD 0 5.5 V 1
    Operating Temperaature TOP -20 +60 °C -
    Storage Temperature TSTG -30 +70 °C -

    Note 1: All the above voltages are on the basis of "VSS = 0V".



    Electrical Characteristics

    DC Electrical Characteristics

    Item Symbol Condition Min. Typical Max. Unit
    USB Supply Voltage VDD-VSS - 4.7 5 5.3 V
    VDD Supply Current IDD - 2 - 3 A



    Module Dimensions Characteristics

    No Item Remark
    1. Demo Board PCB + OLED Module 297*210 (mm)
    Specifiche di prodotto
