    WO240128-84IB#FC

    Graphic LCD 4.8" 240x128, B/L white, STN blue neg, Transmissive, COG, 3V, Interface 6800/8080/SPI, 6 O'clock
    Brand: Winstar
    Cod.: WO240128-84IB#FC
    Prezzi per quantità
    Quantità
    1+
    5+
    10+
    Prezzo
    €29,20
    €26,20
    €24,70

    Per quantità maggiori di 24pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

    Disponibilità: Disponibile
    €29,20 IVA esclusa
    i h

    MOQ

    After sample PO, MP MOQ 500pcs



    DESCRIPTION

    Monochrome COG graphic LCD module made of 240x128 pixels, diagonal size 4.8 inch. This COG LCD Module is built in with ST7586S controller IC; it supports 6800 8-bit, 8080 8-bit parallel and 3-line 9-bit /4-line 8-bit serial SPI interface. This COG has the same Active Area dimension and View Area as COB WG240128B, but this COG is much thinner than WG240128B. If the customers require 4.8” thinner module for new design, it is a good choice.

    Operating temperatures from -20℃ to +70℃; storage temperatures range from -30℃ to +80℃. Different LCD mode options; STN Negative blue with white LED backlight, and FSTN positive white with white LED backlight.

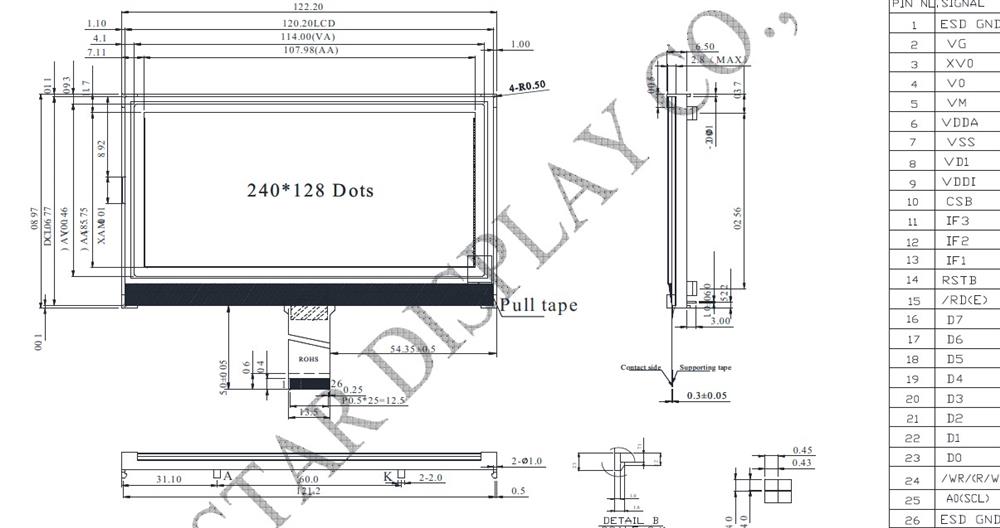

    DRAWING





    SPECIFICATIONS

    Interface Pin Function

    Pin No.SymbolDescription
    1 ESD GND Electro-Static discharge
    2 VG VG is the power of SEG-drivers
    3 XV0 Negative operating voltage of COM-drivers
    4 V0 Positive operating voltage of COM-drivers
    5 VM VM is the non-select voltage level of COM-drivers
    6 VDDA Power supply
    7 VSS Ground
    8 VD1 Digital power source selection
    9 VDDI VDD1 is the power of interface I/O circuit
    10 CSB Chip select input pin
    CSB=“L”: This chip is selected and the MPU interface is active
    CSB=“H”: This chip is not selected and the MPU interface is disabled
    (D[7:0] are high impedance)
    11
    12
    13
    IF3
    IF2
    IF1

    These pins select interface operation mode

    IF3IF2IF1MPU interface type
    H H L 80 series 8-bit parallel
    H L L 68 series 8-bit parallel
    L H H 8-bit serial (4-Line)
    L H L 9-bit serial (3-Line)
    14 RSTB Reset input pin. When RSTB is “L”, internal initialization procedure is executed
    15 /RD(E)

    Read / Write execution control pin. (This pin is only used in parallelinterface)

    MPU TypeERDDescriptin
    6800-series ERD Read/Write control input pin
    R/W = "H" When E is "H", data bus is in output status.
    R/W = "L" The data are lunched at the failling edge of the E signal.
    8080-series /RD Read enable inputpin.
    When /RD is "L". Data bus is in output status.
    16~23 D7~D0 The bi-directional data bus of the MPU interface. When CSB is “H”, they are high impedance
    If using serial interface:
    D0 is the SDA signal in 4-Line & 3-Line interface
    D1 is the A0 signal in 4-Line interface
    24 /WR/(R/W)

    Read / Write execution control pin. (This pin is only used in parallel interface)

    MPU TypeRWRDescriptin
    6800-series R/W Read/Write control input pin
    R/W = "H" : Read
    R/W = "L" : write
    8080-series /WR Write enable clock input pin.
    The data are layched at the rising edge of the /WR signal.
    25 A0(SCL) The function of this pin is different in parallel and serial interface
    In parallel interface: A0 is register selection input
    A0 = "H": inputs on data bus are display data
    A0 = "L": inputs on data bus are command
    In serial interface: this pad will be used as SCL (serial-clock) input
    26 ESD GND Electro-Static discharge



    Mechanical Data

    ItemDimensionUnit
    Number of dots 240 × 128 -
    Module dimension 122.2 × 79.8 × 6.5 mm
    View area 114.0 × 64.0 mm
    Active area 107.98 × 57.58 mm
    Dot size 0.43 × 0.43 mm
    Dot pitch 0.45 × 0.45 mm
    Drive Method 1/128Duty,1/12Bias
    Backlight Type LED
    IC ST7586S



    Absolute Maximum Ratings

    ItemSymbolMinTypMaxUnit
    Operating Temperature TOP -20 - +70 ℃
    Storage Temperature TST -30 - +80 ℃
    Digital Power Supply Voltage VDDI -0.3 - 3.6 V
    Analog Power supply voltage VDDA -0.3 - 3.6 V
    LCD Power supply voltage V0-XV0 -0.3 - 19 V
    LCD Power supply voltage VG -0.3 - 5.5 V



    Electrical Characteristics

    ItemSymbolConditionMinTypMaxUnit
    Supply Voltage For Logic VDD-VSS - 3.0 3.3 3.6 V
    Supply Voltage For LCM VOP Ta=-20℃
    Ta=25℃
    Ta=+70℃
    -
    14.8
    -
    -
    15.0
    -
    -
    15.2
    -
    V
    V
    V
    Input High Volt. VIH - 0.7VDD - VDD V
    Input Low Volt. VIL - Vss - 0.3 VDD V
    Output High Volt. VOH - 0.8 VDD - VDD V
    Output Low Volt. VOL - Vss - 0.2VDD V
    Supply Current IDD VDD=3.3V - - 2.0 mA


    Specifiche di prodotto
    Size 4.8"
    Resolution 240x128
    Active Area (mm) 107.98x57.58
    Dot Size 0.43x0.43
    B/L color, LCD type B/L white, STN blue neg
    Power supply 3.3V
    Display Interface 6800/8080/SPI
    Display IC ST7586S-G4
    Constructive Structure COG
    View Angle 6H
    Frame No
    Touch Panel No touch
    O. Temperature (°C) -20~70
    Data Connection FPC for ZIF Connector
    Pin Nr. 26
    Pin Pitch 0.5mm
    Preferred - Not Preferred Preferred
    *
    *
    *
    *
