WO12864-85HH#FC

Graphic LCD 2.9" 128x64, B/L white, FSTN white pos, Transflective, COG, 3.3V, Interface 6800/8080/SPI, 6 O'clock

DESCRIPTION

Winstar Graphic 128x64 Monochrome Displays COG LCD built in with ST7567-G IC which supports 6800/8080 and SPI interface. The display is having the outline dimension 80.0 x 54.0 mm and AA size of 66.52 x 33.24 mm. Operating temperatures from -20℃ to +70℃; storage temperatures range from -30℃ to +80℃. This LCD COG 128x64 display is very suitable for the applications that demand more compact package displays.

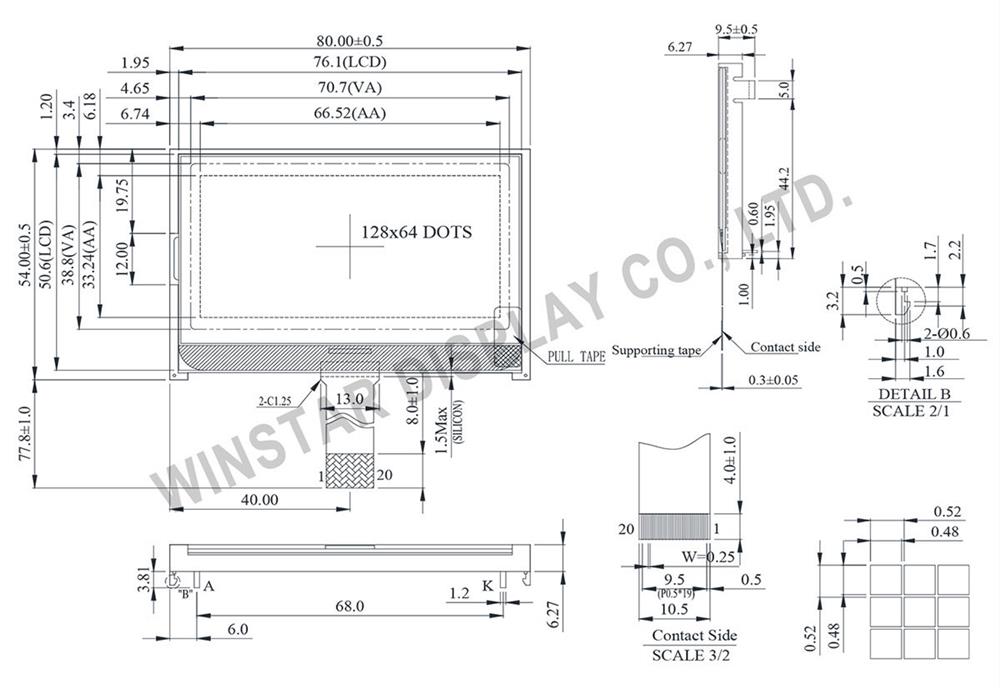

DRAWING

Monochrome Displays, Monochrome Display 128x64 - WO12864H

SPECIFICATIONS

Interface Pin Function

Pin No.	Symbol	Description
1	PSB	Selects the interface type: Serial or Parallel.
2	C86	Interface selection 6800/8080
3	VG	VG is the power of SEG-drivers.
4	XV0	Negative operating voltage of COM-drivers.
5	V0	Bias voltage levels for LCD driving
6	V_SS	Ground
7	V_DD	Power supply for logic
8~15	D7~D0	Data bus line
16	ERD	8080 family: Read signal, 6800 family: Enable clock
17	RWR	8080 family: Write signal, 6800 family: Read/Write signal
18	A0	Data/ Instruction select signal
19	RSTB	Controller reset signal, Active Low
20	CSB	Chip select input pins

Mechanical Data

Item	Standard Value	Unit
Module Dimension	80.0 × 54.0	mm
Viewing Area	70.7 × 38.8	mm
Dot Pitch	0.52 × 0.52	mm
Dot Size	0.48 × 0.48	mm

Electrical Characteristics

Item	Symbol	Standard value typ.	Unit
Input Voltage	VDD	3.0	V
Recommended LCD Driving Voltage for Normal Temp. Version module @25°C	Vo-Vss	10.0	V

SKU: WO12864-85HH#FC

Brand: Winstar

Disponibile: Si

Si tratta dela prima recensione per questo prodotto

Kit Accessori

Display Connector
Touch-Panel Connector
Touch-Panel

Prezzi per quantità

Quantità

10+

25+

Prezzo

€10,70

€7,90

€7,60

€7,30

Per quantita’ maggiori di 25pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

€10,70 IVA esclusa

Overview
Specifiche
Download
Contattaci

DESCRIPTION

DRAWING

SPECIFICATIONS

Interface Pin Function

Pin No.	Symbol	Description
1	PSB	Selects the interface type: Serial or Parallel.
2	C86	Interface selection 6800/8080
3	VG	VG is the power of SEG-drivers.
4	XV0	Negative operating voltage of COM-drivers.
5	V0	Bias voltage levels for LCD driving
6	V_SS	Ground
7	V_DD	Power supply for logic
8~15	D7~D0	Data bus line
16	ERD	8080 family: Read signal, 6800 family: Enable clock
17	RWR	8080 family: Write signal, 6800 family: Read/Write signal
18	A0	Data/ Instruction select signal
19	RSTB	Controller reset signal, Active Low
20	CSB	Chip select input pins

Mechanical Data

Item	Standard Value	Unit
Module Dimension	80.0 × 54.0	mm
Viewing Area	70.7 × 38.8	mm
Dot Pitch	0.52 × 0.52	mm
Dot Size	0.48 × 0.48	mm

Electrical Characteristics

Item	Symbol	Standard value typ.	Unit
Input Voltage	VDD	3.0	V
Recommended LCD Driving Voltage for Normal Temp. Version module @25°C	Vo-Vss	10.0	V

Specifiche di prodotto

Brand	Winstar
Size	2.9"
Risoluzione	128x64
Area Attiva (mm)	66.52x33.24
Dot Size	0.48x0.48
Colore B/L, Tipo LCD	B/L white, FSTN white pos
Alimentazione	3.3V
Interfaccia Display	6800/8080/SPI
Display IC	ST7567-G
Struttura Costruttiva	COG
Angolo Visione	6H
Frame	No
Touch Panel	No touch
Temperatura O. (°C)	-20~70
Connessione Display	FPC for ZIF Connector
Nr. Pin	20
Passo Pin	0.5mm
Preferred - Not Preferred	Preferred
