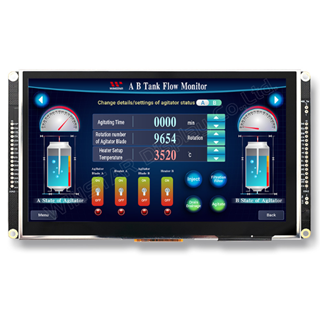

    WL0F0007000A8GFADSA01-FC

    TFT 7" 1024x600, UART interface & GPIO Support, 32MB Flash Memory, 450cd/m², Wide View Angle (IPS), Capacitive touch panel (GG) (Optimized PCB Design)
    Brand: Winstar
    Cod.: WL0F0007000A8GFADSA01-FC

    Kit accessori

    Prezzi per quantità
    Quantità
    1+
    5+
    10+
    Prezzo
    €96,00
    €86,40
    €81,30

    Per quantità maggiori di 24pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

    Disponibilità: Disponibile
    €96,00 IVA esclusa
    i h

    DESCRIPTION

        Link to 'SMART GUI BUILDER' INTRODUCTION & VIDEO

    7 Inch Smart Display (UART series) Features

    • +12V power supply input with 8V to 35V dynamic range power input, the power consumption is around 6 Watt.
    • Self-testing after booting function.
    • UART communication interface.
    • Supports UART protocol, default baud rate at 115200Kbps.
    • Built in 32M external flash memory to store the font and Object Dictionary Data.
    • Support capacitive touch panel (CTP).
    • Build in buzzer and can be controlled by Master Device.

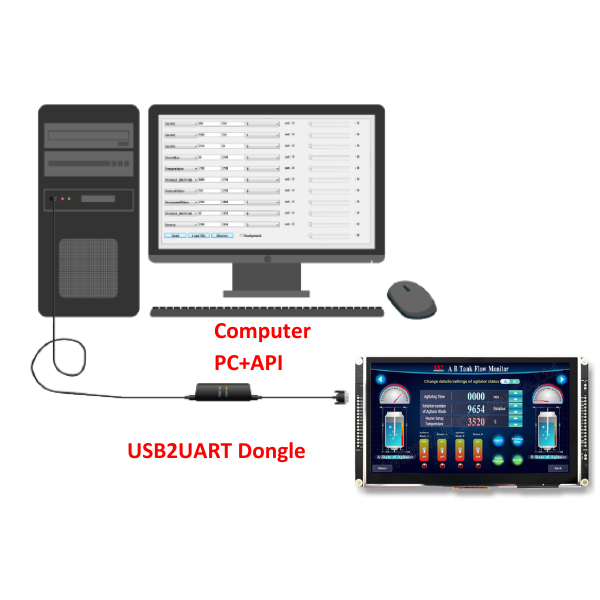

    • Demo set HOST can be used on multiple platforms, such as Computer (with USB to  UART Dongle), MCU, Raspberry Pi (with PiCAN2).Design the UI without writing a line of code by Winstar GUI builder! (►Link to GUI Builder Introduction)
    • GPIO PIN support with 3.3V TTL.



    DRAWING

    SPECIFICATIONS

    General Specifications

    ItemStandard ValueUnit
    Operating voltage 8~35 Vdc
    Communication Interface UART --
    MCU STM32F746 N/A
    Flash Memory 32 MB
    SDRAM Memory 16 MHz
    LCD display size 7.0 inch
    Dot Matrix 1024 x RGB x 600(TFT) dot
    Module dimension 184.1(W) x 103.8(H) x 22(D) mm
    Active area 154.2144 x 85.92 mm
    Dot pitch 0.1506 x 0.1432 mm
    Brightness Min:400; Typ:450 cd/m2
    LCD type TFT, Normally Black, Transmissive
    View Direction 85/85/85/85
    Aspect Ratio 16:9
    Touch Panel With CTP
    Surface Glare



    Absolute Maximum Ratings

    ItemSymbolMinTypMaxUnit
    Operating Temperature TOP -20 - +70 ℃
    Storage Temperature TST -30 - +80 ℃



    Electrical Characteristics

    ItemSymbolConditionMinTypMaxUnit
    Supply Voltage VIN - 8 12 35 V
    Supply current I(mA) - - 520 - mA



    BOM

    ItemDescription
    LCM WF70-­1024600A8L#BP3­-FC
    PCBA SV10007R00A8K00N0109



    Interface Pin Function

    CON2 definition:

    PinSymbolFunctionRemark
    1 VIN Power supply GND input Input
    2 GND Power supply 8V to 35V input Input
    3 Reserve - -
    4 Reserve - -
    5 GND Power supply GND input Input
    6 GND Power supply GND input Input
    7 Reserve - -
    8 Reserve - -
    9 NC - -
    10 UART_RX UART RX interface I/O
    11 UART_TX UART TX interface I/O
    12 GND Power supply GND input Input
    13 VIN Power supply 8V to 35V input Input
    14 Reserve - -
    15 Reserve - -
    16 GND Power supply GND input Input


    CON3 definition:

    PinSymbolFunctionRemark
    1 +3V3 3.3V power for JTAG interface Output
    2 SWCLK CLK pin for JTAG interface Input
    3 GND GND for JTAG interface Output
    4 SWDIO Data pin for JTAG interface I/O
    5 NRST Reset pin for JTAG interface Input
    6 GND Power GND Output
    7 Wkup WKup,ADC,Timer,Event,I/O Input
    8 BOOT0 Lo: Internal flash boot (Default)
    Hi: External flash boot
    Input
    9 IO_0 ADC,DAC,Timer,Event,I/O @3.3V I/O
    10 IO_1 ADC,Timer,Event,I/O @3.3V I/O
    11 IO_2 ADC,Timer,Event,I/O @3.3V I/O
    12 IO_3 ADC,Timer,Event,I/O @3.3V I/O
    13 IO_4 ADC,Timer,Event,I/O @3.3V I/O
    14 IO_5 ADC,Timer,Event,I/O @3.3V I/O
    15 IO_6 ADC,Timer,Event,I/O @3.3V I/O
    16 IO_7 RST,ADC,Event,I/O @3.3V I/O

    @3.3V : I/O allow below 3.3V input, If exceeding 3.3V may cause MCU damage.



    Display Usage

    Functional description

    Smart Display can be used to display the coordinate, status and data information provided by the connected HOST device. Customers can configure the position coordinates they want to display in normal operation mode.

    The Display is designed to be easily connected to a controller network, and to use the register type of Holding Register

    Splash Screen

    The default splash image is shown below.

    This product is produced as a generic product. If you require a custom splash image for your application, contact us to discuss.

    Acquisition of Displayed Data

    Smart Display uses the Modbus protocol to get and send the data.

    On Config mode, customers can set the coordinates or type of objects; On Display mode, customers can send and get data of objects.

    Configuring the Display

    Winstar Smart Display RS-485 series offers an out-of-the-box Modbus development experience that will lower customers' development costs and speed time-to-market expectations.

    The Smart Display can use wide-temperature are designed to support control applications in harsh operating conditions, which designed to be connected to a variety of different situation combinations, such as automotive, marine, power generation and oil-and-gas.

    The Smart Display can use wide-temperature are designed to support control applications in harsh operating conditions, which designed to be connected to a variety of different situation combinations, such as automotive, marine, power generation and oil-and-gas.

    The Smart Display comes with standard UI objects to get customers project off the ground quickly. If customers need custom UI objects support, our engineers are here to help. Send over your contents in PNG/JPG format, we will send over a new set of UI objects within 3~5 working days

    The Smart Display is defined as a slave device, which is controlled by master device via RS-485 command to render display content on the display screen and return touch event data with protocol objects.

    Example Screen Layout (Industry application)

    The screen layout described in this section is intended to demonstrate the settings of screen items that can be used in a industry application situation.

    Example Screen Layout (Vehicle automotive)

    The screen layout described in this section is intended to demonstrate the settings of screen items that can be used in a vehicle automotive situation.

    Example Screen Layout (Medical application)

    The screen layout described in this section is intended to demonstrate the settings of screen items that can be used in a Medical application situation.

    EVALUATION KIT

    Evaluation Kit P/N WWSSDEMO70A8-FA-11#003 available at the links:

    ITA: https://www.first-components.com/it/wwssdemo70a8-fa-11003

    ENG: https://www.first-components.com/en/wwssdemo70a8-fa-11003
