    WL0F0007000A8GFAASA01-FC

    TFT 7" 1024x600, UART interface & GPIO Support, 32MB Flash Memory, 450cd/m², Wide View Angle (IPS), Capacitive touch panel (GG)
    Brand: Winstar
    Cod.: WL0F0007000A8GFAASA01-FC

    Kit accessori

    Prezzi per quantità
    Quantità
    1+
    5+
    10+
    Prezzo
    €86,60
    €77,90
    €73,20

    Per quantità maggiori di 24pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

    Disponibilità: Il prodotto non può essere aggiunto al carrello. Prego verificare con FC la futura disponibilità
    €86,60 IVA esclusa
    i h

    RECOMMENDED ONLY AS SPARE PARTS

    For new projects please contact us at [email protected].



    DESCRIPTION

        Link to 'SMART GUI BUILDER' INTRODUCTION & VIDEO

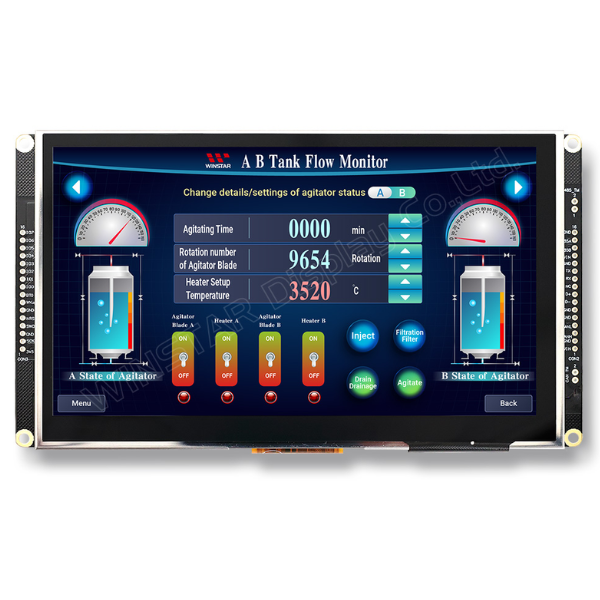

    The WINSTAR 7" UART Smart Display (Model: WL0F0007000A8GFAASA01-FC) is designed for engineers and developers, combining advanced display technology with user-friendly development tools, allowing you to easily create various UI widgets.

    This smart display is equipped with the standard WINSTAR 7" TFT LCD module WF70-1024600A8L#BP3-FC. It features IPS panel technology with a wide viewing angle (85/85/85/85 degrees) and a resolution of 1024×600 pixels, along with a capacitive touch panel. This configuration not only provides excellent display quality but also enhances the user interaction experience, making your applications more flexible and convenient.

    Whether you are developing embedded systems or designing custom interfaces, the WINSTAR 7" UART Smart Display offers reliable support to help you quickly realize your ideas and functionalities.

    Product Features:

    • Power Supply: Typically accepts a +12V power supply input with a dynamic range of 8V to 35V; typical power consumption is approximately 6 Watts.
    • Self-Testing: Features a self-testing function after booting.
    • Communication Interface: UART communication interface supported.
    • Protocol Support: Compatible with Proprietary UART protocol, with a default baud rate of 115200 bps.
    • Designed with STMicroelectronics' (ST) controller which supports ST development tools
    • Memory: Built-in 32MB external flash memory for storing fonts and Object Dictionary data.
    • Touch Support: Supports capacitive touch panel (CTP).
    • Buzzer: Integrated buzzer controllable by the master device.
    • Compatibility: Demo set HOST compatible with multiple platforms, including computers (using USB to UART dongle), MCUs, and Raspberry Pi (with PiCAN2).
    • Design the UI without writing a line of code by Winstar GUI builder! (►Link to GUI Builder Introduction)
    • GPIO Support: GPIO pins support 3.3V TTL logic with a maximum tolerance of 5.5V, suitable for physical switches and indicators.



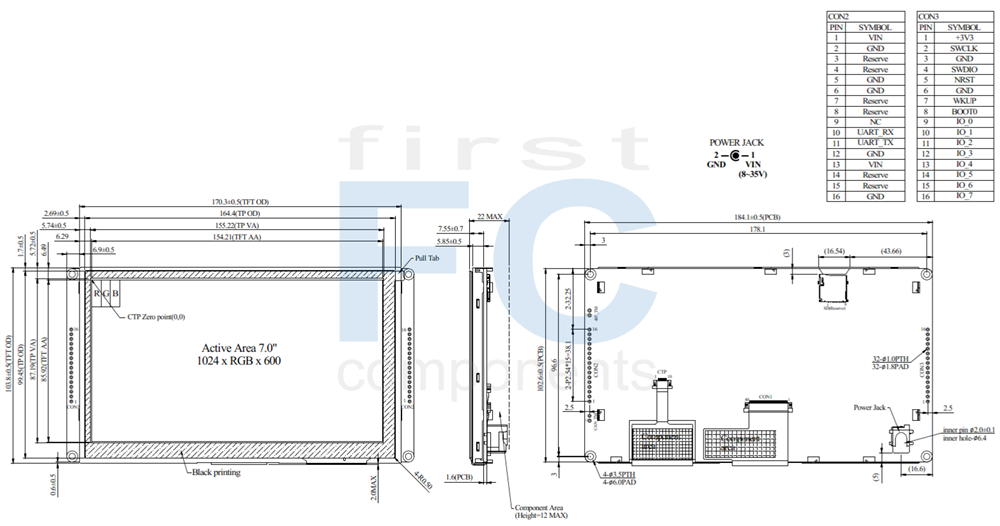

    DRAWING

    SPECIFICATIONS

    General Specifications

    ItemStandard ValueUnit
    Operating voltage 8~35 Vdc
    Communication Interface UART --
    MCU STM32F746 N/A
    Flash Memory 32 MB
    SDRAM Frequency 100 MHz
    LCD display size 7.0 inch
    Dot Matrix 1024 x RGB x 600(TFT) dot
    Module dimension 184.1(W) x 103.8(H) x 22(D) mm
    Active area 154.2144 x 85.92 mm
    Dot pitch 0.1506 x 0.1432 mm
    Brightness Min:400; Typ:450 cd/m2
    LCD type TFT, Normally Black, Transmissive
    View Direction 85/85/85/85
    Aspect Ratio 16:9
    Touch Panel Capacitive Touch Panel
    Surface Glare



    Absolute Maximum Ratings

    ItemSymbolMinTypMaxUnit
    Operating Temperature TOP -20 - +70 ℃
    Storage Temperature TST -30 - +80 ℃



    Electrical Characteristics

    ItemSymbolConditionMinTypMaxUnit
    Supply Voltage VIN - 8 12 35 V
    Supply current I(mA) - - 490 - mA



    BOM

    ItemDescription
    LCM WF70-1024600A8L#BP3-FC
    PCBA SV10007R00A8C00N0108



    Interface Pin Function

    CON2 definition:

    PinSymbolFunctionRemark
    1 VIN Power +8V~35V Input
    2 GND Power GND --
    3 Reserve - -
    4 Reserve - -
    5 GND Power supply GND input GND
    6 GND Power supply GND input GND
    7 Reserve - -
    8 Reserve - -
    9 VBUS Power supply 5V input Input
    10 UART_RX UART RX interface I/O
    11 UART_TX UART TX interface I/O
    12 GND Power supply GND input Input
    13 VIN Power supply 8V to 35V input Input
    14 Reserve - -
    15 Reserve - -
    16 GND Power supply GND input Input


    CON3 definition:

    PinSymbolFunctionRemark
    1 +3V3 3.3V power for JTAG interface Output
    2 SWCLK CLK pin for JTAG interface Input
    3 GND GND for JTAG interface Output
    4 SWDIO Data pin for JTAG interface I/O
    5 NRST Reset pin for JTAG interface Input
    6 GND Power GND Output
    7 Wkup WKup,ADC,Timer,Event,I/O Input
    8 BOOT0 Lo: Internal flash boot (Default)
    Hi: External flash boot
    Input
    9 IO_0 ADC,DAC,Timer,Event,I/O @3.3V I/O
    10 IO_1 ADC,Timer,Event,I/O @3.3V I/O
    11 IO_2 ADC,Timer,Event,I/O @3.3V I/O
    12 IO_3 ADC,Timer,Event,I/O @3.3V I/O
    13 IO_4 ADC,Timer,Event,I/O @3.3V I/O
    14 IO_5 ADC,Timer,Event,I/O @3.3V I/O
    15 IO_6 ADC,Timer,Event,I/O @3.3V I/O
    16 IO_7 RST,ADC,Event,I/O @3.3V I/O

    @3.3V : I/O allow below 3.3V input, If exceeding 3.3V may cause MCU damage.



    Display Usage

    Functional description

    Smart Display can be used to display the coordinate, status and data information provided by the connected HOST device. Customers can configure the position coordinates they want to display in normal operation mode.

    The Display is designed to be easily connected to a controller network, and to use the register type of Holding Register

    Splash Screen

    The default splash image is shown below.

    This product is produced as a generic product. If you require a custom splash image for your application, contact us to discuss.

    Acquisition of Displayed Data

    Smart Display uses the Modbus protocol to get and send the data.

    On Config mode, customers can set the coordinates or type of objects; On Display mode, customers can send and get data of objects.

    Configuring the Display

    Winstar Smart Display RS-485 series offers an out-of-the-box Modbus development experience that will lower customers' development costs and speed time-to-market expectations.

    The Smart Display can use wide-temperature are designed to support control applications in harsh operating conditions, which designed to be connected to a variety of different situation combinations, such as automotive, marine, power generation and oil-and-gas.

    The Smart Display can use wide-temperature are designed to support control applications in harsh operating conditions, which designed to be connected to a variety of different situation combinations, such as automotive, marine, power generation and oil-and-gas.

    The Smart Display comes with standard UI objects to get customers project off the ground quickly. If customers need custom UI objects support, our engineers are here to help. Send over your contents in PNG/JPG format, we will send over a new set of UI objects within 3~5 working days

    The Smart Display is defined as a slave device, which is controlled by master device via RS-485 command to render display content on the display screen and return touch event data with protocol objects.

    Example Screen Layout (Industry application)

    The screen layout described in this section is intended to demonstrate the settings of screen items that can be used in a industry application situation.

    Example Screen Layout (Vehicle automotive)

    The screen layout described in this section is intended to demonstrate the settings of screen items that can be used in a vehicle automotive situation.

    Example Screen Layout (Medical application)

    The screen layout described in this section is intended to demonstrate the settings of screen items that can be used in a Medical application situation.



    EVALUATION KIT

    Evaluation Kit P/N WWSSDEMO70A8-FA-11#001 available at the links:

    ITA: https://www.first-components.com/it/wwssdemo70a8-fa-11001

    ENG: https://www.first-components.com/en/wwssdemo70a8-fa-11001

    Specifiche di prodotto
    Size 7"
    Resolution 1024x600
    Active Area (mm) 154.21x85.92
    Color Full Color
    Power supply 12V
    Display Interface UART + GPIO
    View Angle IPS
    Frame Yes
    Touch Panel Capacitive
    O. Temperature (°C) -20~70
    Preferred - Not Preferred Not Preferred
    Date Notice Link/Description
    2025/12/09 PCN PCB Optimization for Winstar's 7” Smart Displays with GPIO



    For more details, please contact us @ [email protected]

    *
    *
    *
    *
