    WG240128B-TMI-TZ#

    Graphic LCD 4.8" 240x128, B/L white, STN blue neg, Transmissive, COB, 5V, Interface 8080, 6 O'clock, VNEG, Temperature compensator
    Brand: Winstar
    Cod.: WG240128B-TMI-TZ#

    Kit accessori

    Prezzi per quantità
    Quantità
    1+
    5+
    10+
    25+
    50+
    Prezzo
    €62,60
    €56,30
    €53,00
    €51,70
    €51,10

    Per quantità maggiori di 99pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

    Disponibilità: Disponibile
    €62,60 IVA esclusa
    i h

    DESCRIPTION



    WG240128B is a 240 x 128 graphic LCD module which is having the module dimension 144x104 mm and AA size of 107.98x57.58 mm, diagonal size 4.8 inch. This 240x128 graphic LCD module is built in with RA6963 controller and negative voltage built in on module.  It supports 8080 8-bit parallel interface and 5V power supply, this module is temperature compensation optional, and touch panel optional.  WG240128B module can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.


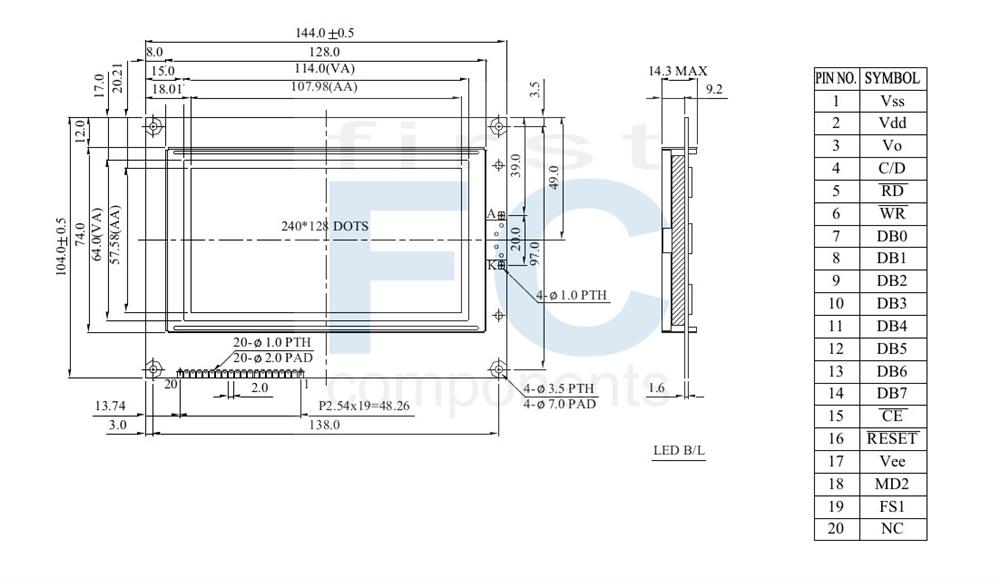

    DRAWING



    SPECIFICATIONS



    Interface Pin Function

    Pin No.SymbolDescription
    1 VSS Ground
    2 VDD Power supply for logic
    3 VO Contrast Adjustment
    4 C/D Data/ Instruction select signal
    5 /RD Data read. Read data from LCD Controller
    6 /WR Data write. Write data into LCD Controller
    7~14 DB0~DB7 Data bus line
    15 /CE Enable signal
    16 /RESET Controller reset signal, Active Low
    17 VEE Negative Voltage Output
    18 MD2 H: 32 columns ; L: 40 columns
    19 FS1 Selection of font; H : 6 * 8 , L : 8 * 8
    20 NC No connection



    Mechanical Data

    ItemStandard ValueUnit
    Module Dimension 144.0 × 104.0 mm
    Viewing Area 114.0 × 64.0 mm
    Mounting Hole 138.0 × 97.0 mm
    Dot Pitch 0.45 × 0.45 mm
    Dot Size 0.43 × 0.43 mm



    Electrical Characteristics

    ItemSymbolStandard Value
    typ.
    Unit
    Input Voltage VDD 3/5 V
    Recommended LCD Driving
    Voltage for Normal Temp.
    Version module @25°C
    VDD-VO 19.5 V


    Specifiche di prodotto
    Size 4.8"
    Resolution 240x128
    Active Area (mm) 107.98x57.58
    Dot Size 0.43x0.43
    B/L color, LCD type B/L white, STN blue neg
    Power supply 5V
    Display Interface 8080
    Display IC RA6963
    Constructive Structure COB
    View Angle 6H
    Frame Yes
    Touch Panel No touch
    O. Temperature (°C) -20~70
    Data Connection Soldering PAD
    Pin Nr. 20
    Pin Pitch 2.54mm
    Preferred - Not Preferred Preferred
    Date Notice Link/Description
    2021/03/18 PCN RAIO IC RA6963-N > RA6963-N1 for monochrome COB LCDs



    For more details, please contact us @ [email protected]

    *
    *
    *
    *
