WG14432A5-TMI-V#T

Graphic LCD 2.4" 144x32, B/L white, STN blue neg, Transmissive, COB, 5V, Interface 6800/SPI, 6 O'clock, VNEG

DESCRIPTION

WG14432A3/WG14432A5 is a monochrome 144x32 graphics LCD module which is built in with ST7920 controller IC. WG14432A3/A5 is having the same mechanical size as Character WH1602C. This WG14432A module supports 8080 8-bit parallel and SPI interface; +3.3V/+5V power supply, also internal boost 3.3V optional. This 144x32 graphic LCD display supports Traditional Chinese and Simplified Chinese Font. It can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.

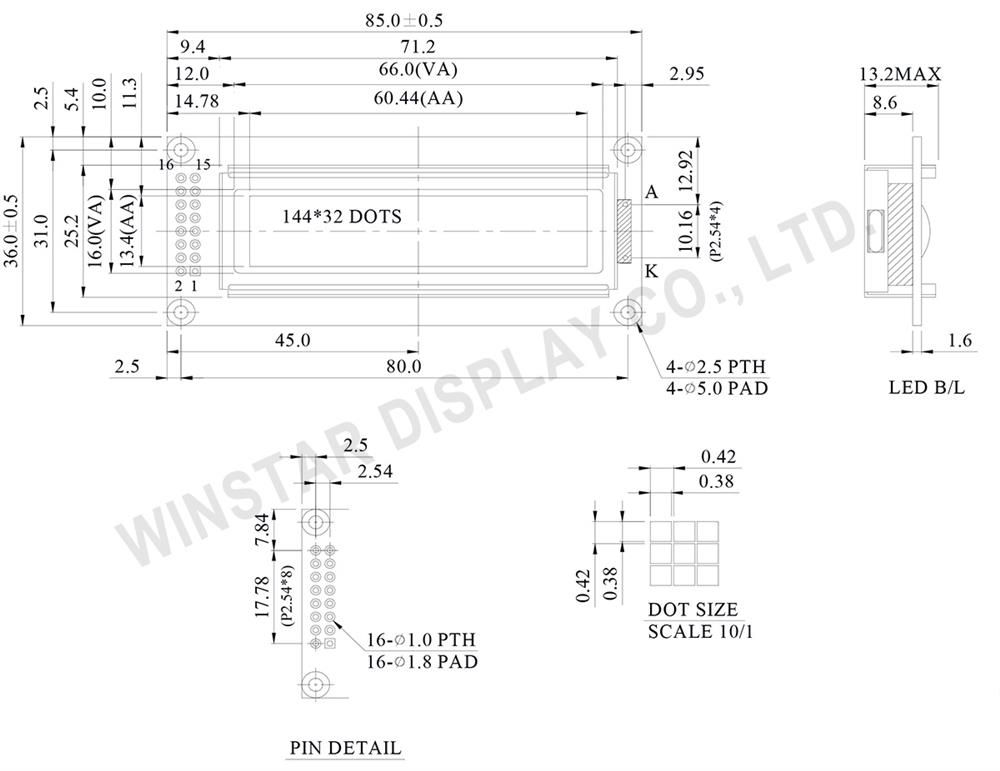

DRAWING

Winstar 144x32 Graphic LCD Module - WG14432A3/WG14432A5

SPECIFICATIONS

Interface Pin Function

Pin No.	Symbol	Level	Description
1	VSS	0V	GND
2	VDD	3.3V	Power Supply
3	NC	－	No connection
4	RS	H/L	H: Data , L : Instruction
5	R/W	H/L	H: Read (MPU←Module) , L: Write (MPU→Module)
6	E	H/L	Enable signal
7	DB0	H/L	Data bus line
8	DB1	H/L	Data bus line
9	DB2	H/L	Data bus line
10	DB3	H/L	Data bus line
11	DB4	H/L	Data bus line
12	DB5	H/L	Data bus line
13	DB6	H/L	Data bus line
14	DB7	H/L	Data bus line
15	A	－	Power supply for B/L +
16	K	－	Power supply for B/L -

Mechanical Data

Item	Dimension	Unit
Number of dots	144 x 32	－
Module dimension	85.0 x 36.0 x 13.2 (MAX)	mm
View area	66.0 x 16.0	mm
Active area	60.44 x 13.4	mm
Dot size	0.38 x 0.38	mm
Dot pitch	0.42 x 0.42	mm
Duty	1/32
Backlight Type	LED
IC	ST7920

Absolute Maximum Ratings

Item	Symbol	Min	Typ	Max	Unit
Operating Temperature	TOP	-20	－	+70	℃
Storage Temperature	TST	-30	－	+80	℃
Input Voltage	VIN	-0.3	－	VDD+0.3	V

SKU: WG14432A5-TMI-V#T

Brand: Winstar

Disponibile: Si

Si tratta dela prima recensione per questo prodotto

Kit Accessori

Display Connector

Prezzi per quantità

Quantità

10+

25+

Prezzo

€17,30

€12,70

€12,30

€11,90

Per quantita’ maggiori di 25pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

€17,30 IVA esclusa

Overview
Specifiche
Download
Contattaci

DESCRIPTION

DRAWING

SPECIFICATIONS

Interface Pin Function

Pin No.	Symbol	Level	Description
1	VSS	0V	GND
2	VDD	3.3V	Power Supply
3	NC	－	No connection
4	RS	H/L	H: Data , L : Instruction
5	R/W	H/L	H: Read (MPU←Module) , L: Write (MPU→Module)
6	E	H/L	Enable signal
7	DB0	H/L	Data bus line
8	DB1	H/L	Data bus line
9	DB2	H/L	Data bus line
10	DB3	H/L	Data bus line
11	DB4	H/L	Data bus line
12	DB5	H/L	Data bus line
13	DB6	H/L	Data bus line
14	DB7	H/L	Data bus line
15	A	－	Power supply for B/L +
16	K	－	Power supply for B/L -

Mechanical Data

Item	Dimension	Unit
Number of dots	144 x 32	－
Module dimension	85.0 x 36.0 x 13.2 (MAX)	mm
View area	66.0 x 16.0	mm
Active area	60.44 x 13.4	mm
Dot size	0.38 x 0.38	mm
Dot pitch	0.42 x 0.42	mm
Duty	1/32
Backlight Type	LED
IC	ST7920

Absolute Maximum Ratings

Item	Symbol	Min	Typ	Max	Unit
Operating Temperature	TOP	-20	－	+70	℃
Storage Temperature	TST	-30	－	+80	℃
Input Voltage	VIN	-0.3	－	VDD+0.3	V

Specifiche di prodotto

Brand	Winstar
Size	2.4"
Risoluzione	144x32
Area Attiva (mm)	60.44x13.44
Dot Size	0.38x0.38
Colore B/L, Tipo LCD	B/L white, STN blue neg
Alimentazione	5V
Interfaccia Display	6800/SPI
Display IC	ST7920
Struttura Costruttiva	COB
Angolo Visione	6H
Frame	Yes
Touch Panel	No touch
Temperatura O. (°C)	-20~70
Connessione Display	Soldering PAD
Nr. Pin	16
Passo Pin	2.54mm
Preferred - Not Preferred	Preferred
