    WO240160-85HA#FC

    Graphic LCD 2.7" 240x160, B/L white, FSTN white pos, Transflective, COG, 3.3V, Interface 6800/8080, 6 O'clock, Frame
    Brand: Winstar
    Cod.: WO240160-85HA#FC

    Kit accessori

    Prezzi per quantità
    Quantità
    1+
    5+
    10+
    Prezzo
    €32,70
    €29,40
    €27,70

    Per quantità maggiori di 24pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

    Disponibilità: Disponibile
    €32,70 IVA esclusa
    i h

    DESCRIPTION

    COG 240x160 LCD Graphic Display which is built in with ST7529 controller IC. It supports 6800 / 8080 parallel interface. The display has outline dimension 93x55 mm and AA size of 69.58 x 43.98 mm.  Operating temperatures from -20℃ to +70℃; storage temperatures range from -30℃ to +80℃.  This COG 240x160 LCD display is very suitable for the applications that demand more compact package displays.


    DRAWING

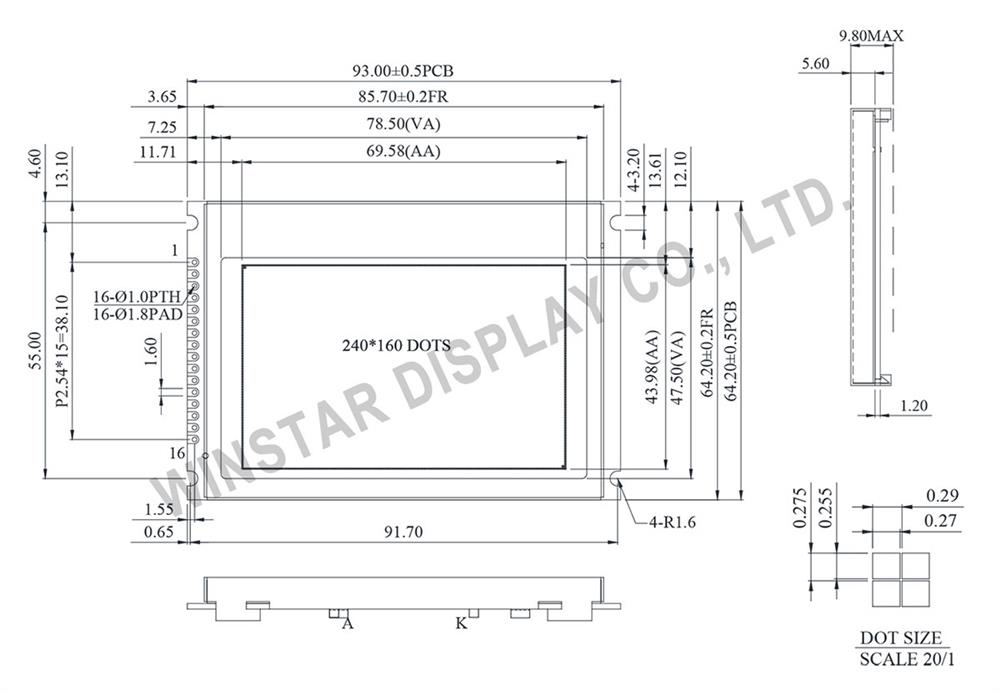

    Winstar WO240160A 240x160 LCD COG Module

    SPECIFICATIONS



    Interface Pin Function

    Pin No.SymbolDescription
    1 VDD Power supply for logic
    2 VSS Ground
    3 /CS Chip select input pins
    4 RS Data/ Instruction select signal
    5 /WR Data write. Write data into LCD Controller
    6 /RD Data read. Read data from LCD Controller
    7 DB0 Data bus line
    8~14 DB1~DB7 Data bus line
    15 /RST Controller reset signal, Active Low
    16 BLA Power supply for B/L +



    Mechanical Data

    ItemStandard ValueUnit
    Module Dimension 93.0 × 64.2 mm
    Viewing Area 78.5 × 47.5 mm
    Mounting Hole 91.7 × 55.0 mm
    Dot Pitch 0.29 × 0.275 mm
    Dot Size 0.27 × 0.255 mm



    Electrical Characteristics

    ItemSymbolStandard value
    typ.
    Unit
    Input Voltage VDD 3.3 V
    Recommended LCD Driving
    Voltage for Normal Temp.
    Version module @25°C
    Vo-Vss 14.5 V


    Specifiche di prodotto
    Size 2.7"
    Resolution 240x160
    Active Area (mm) 69.58x43.98
    Dot Size 0.25x0.20
    B/L color, LCD type B/L white, FSTN white pos
    Power supply 3.3V
    Display Interface 6800/8080
    Display IC ST7529
    Constructive Structure COG
    View Angle 6H
    Frame Yes
    Touch Panel No touch
    O. Temperature (°C) -20~70
    Data Connection Soldering PAD
    Pin Nr. 16
    Pin Pitch 2.54mm
    Preferred - Not Preferred Preferred
