WG12864D-TTI-VZ#

Graphic LCD 2.7" 128x64, B/L white, FSTN black neg, Transmissive, COB, 5V, Interface 8080, 6 O'clock, VNEG

DESCRIPTION

[8Apr21] PCN from IC RA6963-N to IC RA6963-N1

WG12864D is a 2.7- inch 128x64 LCD display module which is having the same mechanical size as WG12864C.  WG12864D model is built in with RA6963; it communicates via 8080 8-bit parallel interface and negative voltage built in on module. WG12864D is available in various LED colors including yellow/green, blue, white, red, etc.  This 128 x 64 LCD module can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.

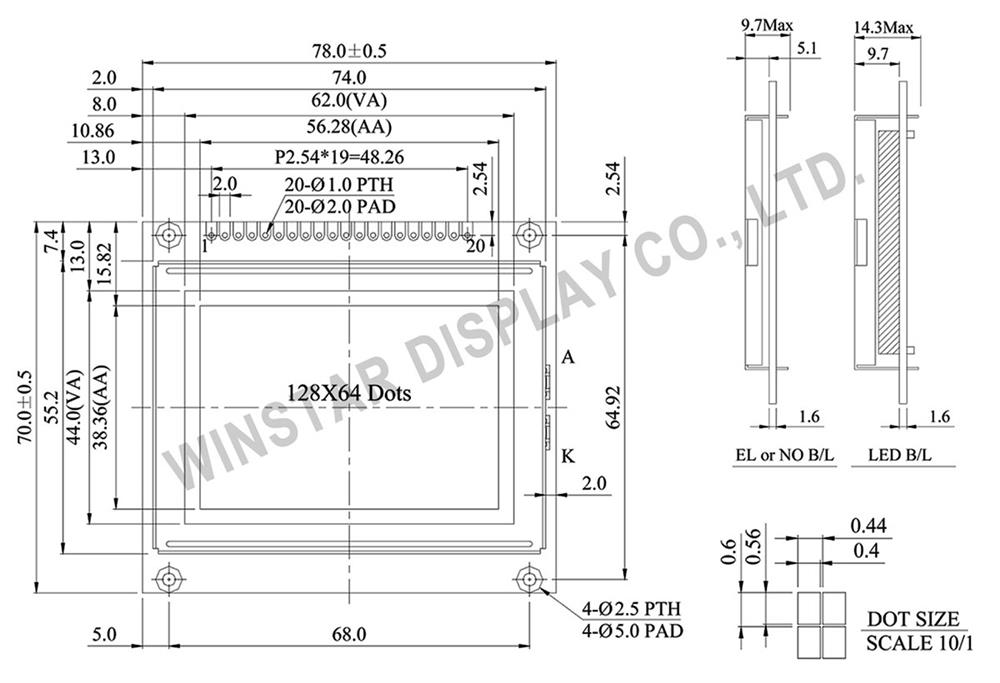

DRAWING

128x64 LCD Display, 12864 LCD - Winstar WG12864D



SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 VEE Negative Voltage Output
2 VSS Ground
3 VDD Power supply for logic
4 VO Contrast Adjustment
5 /WR Data write. Write data into LCD Controller
6 /RD Data read. Read data from LCD Controller
7 /CE Enable signal
8 /CD Data/ Instruction select signal
9 /RESET Controller reset signal, Active Low
10~17 DB0~DB7 Data bus line
18 FS Selection of font; H : 6 * 8 , L : 8 * 8
19 K Power supply for B/L -
20 A Power supply for B/L +



Mechanical Data

ItemStandard ValueUnit
Module Dimension 78.0 ×70.0 mm
Viewing Area 62.0 × 44.0 mm
Mounting Hole 68.0 × 64.92 mm
Dot Pitch 0.44 × 0.60 mm
Dot Size 0.42 × 0.58 mm



Electrical Characteristics

ItemSymbolStandard Value
typ.		Unit
Input Voltage VDD 3/5 V
Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C		 VDD-VO 8.50 V


SKU: WG12864D-TTI-VZ#
Brand: Winstar
Disponibile: No
Si tratta dela prima recensione per questo prodotto
Kit Accessori
Prezzi per quantità
Quantità
1+
5+
10+
Prezzo
€36,20
€32,60
€30,70

Per quantita’ maggiori di 25pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

€36,20 IVA esclusa

DESCRIPTION

[8Apr21] PCN from IC RA6963-N to IC RA6963-N1

WG12864D is a 2.7- inch 128x64 LCD display module which is having the same mechanical size as WG12864C.  WG12864D model is built in with RA6963; it communicates via 8080 8-bit parallel interface and negative voltage built in on module. WG12864D is available in various LED colors including yellow/green, blue, white, red, etc.  This 128 x 64 LCD module can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.


DRAWING

128x64 LCD Display, 12864 LCD - Winstar WG12864D



SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 VEE Negative Voltage Output
2 VSS Ground
3 VDD Power supply for logic
4 VO Contrast Adjustment
5 /WR Data write. Write data into LCD Controller
6 /RD Data read. Read data from LCD Controller
7 /CE Enable signal
8 /CD Data/ Instruction select signal
9 /RESET Controller reset signal, Active Low
10~17 DB0~DB7 Data bus line
18 FS Selection of font; H : 6 * 8 , L : 8 * 8
19 K Power supply for B/L -
20 A Power supply for B/L +



Mechanical Data

ItemStandard ValueUnit
Module Dimension 78.0 ×70.0 mm
Viewing Area 62.0 × 44.0 mm
Mounting Hole 68.0 × 64.92 mm
Dot Pitch 0.44 × 0.60 mm
Dot Size 0.42 × 0.58 mm



Electrical Characteristics

ItemSymbolStandard Value
typ.		Unit
Input Voltage VDD 3/5 V
Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C		 VDD-VO 8.50 V


Specifiche di prodotto
Brand Winstar
Size 2.7"
Risoluzione 128x64
Area Attiva (mm) 56.30x38.38
Dot Size 0.42x0.58
Colore B/L, Tipo LCD B/L white, FSTN black neg
Alimentazione 5V
Interfaccia Display 8080
Display IC RA6963
Struttura Costruttiva COB
Angolo Visione 6H
Frame Yes
Touch Panel No touch
Temperatura O. (°C) -20~70
Connessione Display Soldering PAD
Nr. Pin 20
Passo Pin 2.54mm
Preferred - Not Preferred Preferred
Download
Specifiche di prodotto
Brand Winstar
Size 2.7"
Risoluzione 128x64
Area Attiva (mm) 56.30x38.38
Dot Size 0.42x0.58
Colore B/L, Tipo LCD B/L white, FSTN black neg
Alimentazione 5V
Interfaccia Display 8080
Display IC RA6963
Struttura Costruttiva COB
Angolo Visione 6H
Frame Yes
Touch Panel No touch
Temperatura O. (°C) -20~70
Connessione Display Soldering PAD
Nr. Pin 20
Passo Pin 2.54mm
Preferred - Not Preferred Preferred
