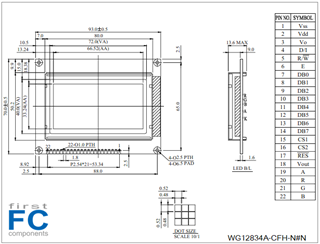

    Graphic LCD 2.9" 128x64, B/L RGB, FSTN white pos, Transflective, COB, 3.3V, Interface 6800, 6 O'clock, No VNEG
    Brand: Winstar
    Cod.: WG12864A-CFH-N#N

    Kit accessori

    Prezzi per quantità
    Quantità
    1+
    5+
    10+
    Prezzo
    €27,00
    €24,30
    €22,80

    Per quantità maggiori di 24pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

    Disponibilità: Il prodotto non può essere aggiunto al carrello. Prego verificare con FC la futura disponibilità
    €27,00 IVA esclusa
    i h

    DESCRIPTION



    Winstar WG12864A is a monochrome graphic LCD 128x64 module. WG12864A model is built in with NT7108 controller or equivalent IC; it supports 6800 8-bit parallel interface.  This WG12864A graphic Display LCD 128x64 module is 5V power supply.  There are two derivative versions of WG12864A; they are WG12864AB for negative voltage 3.3V power supply and WG12864A1 for double-row pinout interface.

    Specifiche di prodotto
    Size 2.9"
    Resolution 128x64
    Active Area (mm) 66.52x33.24
    Dot Size 0.48x0.48
    B/L color, LCD type B/L RGB, FSTN white pos
    Power supply 3.3V
    Display Interface 6800
    Display IC NT7107T+NT7108T
    Constructive Structure COB
    View Angle 6H
    Frame Yes
    Touch Panel No touch
    O. Temperature (°C) -20~70
    Data Connection Soldering PAD
    Pin Nr. 22
    Pin Pitch 2.54mm
    Preferred - Not Preferred Not Preferred
    *
    *
    *
    *
