RECOMMENDED ONLY AS SPARE PARTS
For new projects please contact us at [email protected].
MOQ
After sample PO, MP MOQ 1K
(Please see our preferred and standard product in the below 'Related product' section)
DESCRIPTION

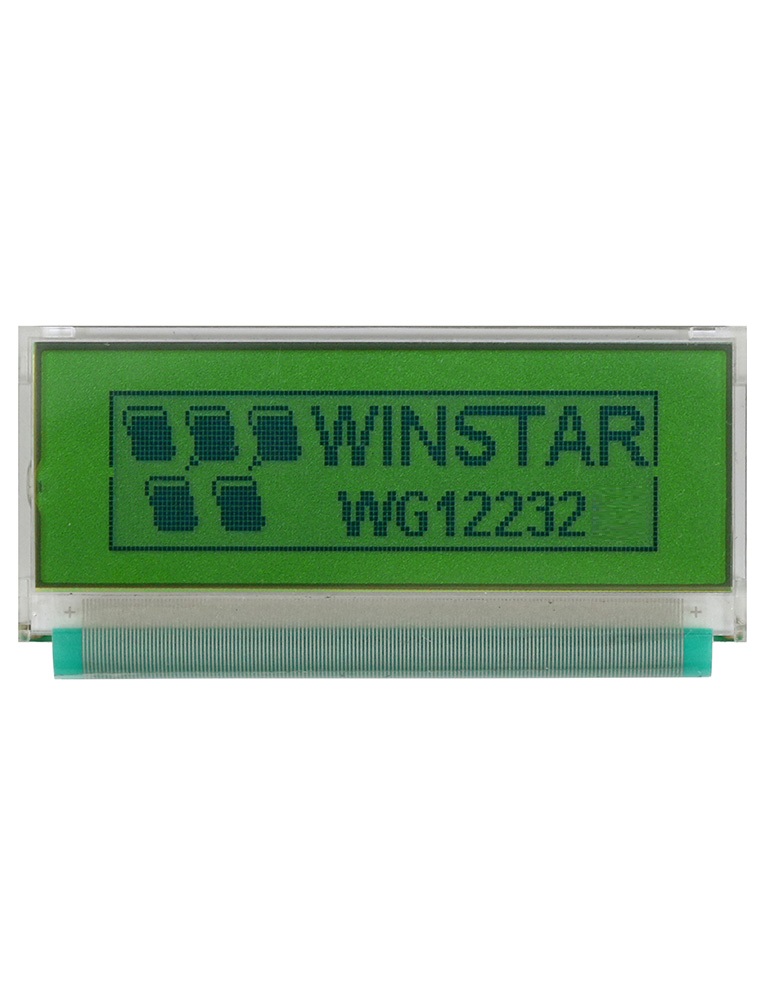

WG12232BP1 is a 122x32 graphic mono display LCD module which is having the outline size 65.4 x 28.32 mm and AA size of 48.76 x 14.36 mm, diagonal size 2.0 inch. This 122x32 graphic LCD module is built in with SBN1661G controller IC or equivalent IC. It supports 6800 8-bit parallel interface and supports 5V power supply only. WG12232BP1 and WG12232G are having the same outline dimension and VA and AA size, but the pinout of these two types are different. The WG12232G is having FFC on module, as to the WG12232BP1 is having connecter not FFC.

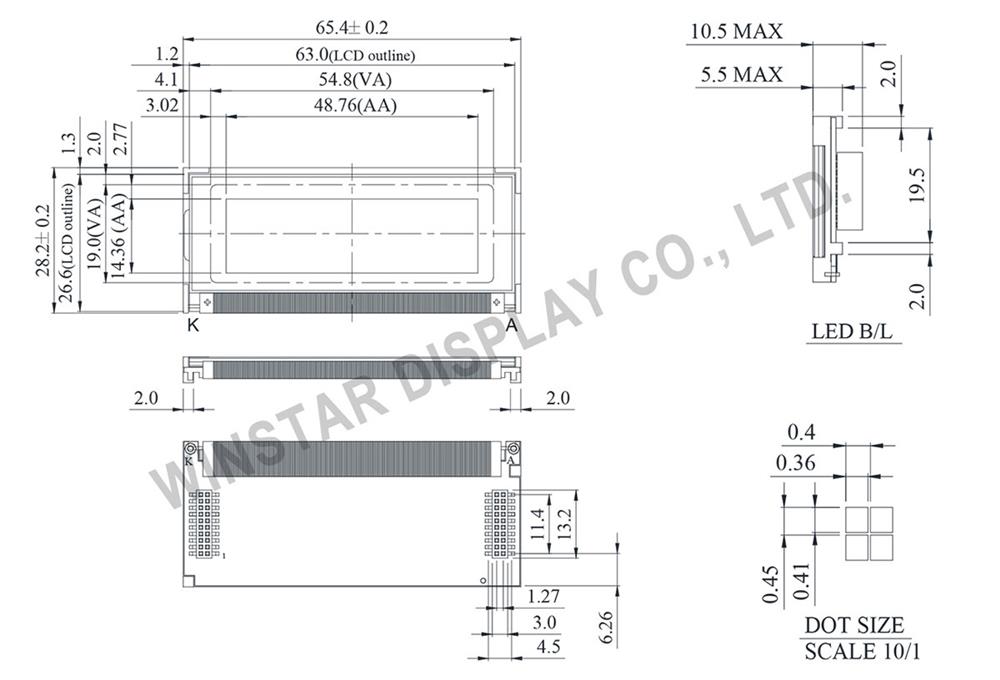

DRAWING
SPECIFICATIONS
Interface Pin Function
| Pin No. | Symbol | Description |
| 1 |
VDD |
Power supply for logic |
| 2 |
VSS |
Ground |
| 3 |
VO |
Contrast Adjustment |
| 4 |
RES |
Controller reset signal, Active Low |
| 5 |
E1 |
Enable signal |
| 6 |
E2 |
Enable signal |
| 7 |
R/W |
Read/Write select signal |
| 8 |
A0 |
Data/ Instruction select signal |
| 9~16 |
DB0~DB7 |
Data bus line |
| 17 |
A |
Power supply for B/L + |
| 18 |
K |
Power supply for B/L - |
Mechanical Data
| Item | Standard Value | Unit |
| Module Dimension |
65.4 × 28.2 |
mm |
| Viewing Area |
54.8 × 19.0 |
mm |
| Dot Pitch |
0.40 × 0.45 |
mm |
| Dot Size |
0.36 × 0.41 |
mm |
Electrical Characteristics
| Item | Symbol | Standard Value typ. | Unit |
| Input Voltage |
VDD |
5.0 |
V |
Recmmended LCD Driving Voltage for Normal Temp. Version module @25°C |
VDD-VO |
4.70 |
V |
Specifiche di prodotto
|
Size
|
2" |
|
Resolution
|
122x32 |
|
Active Area (mm)
|
48.76x14.32 |
|
Dot Size
|
0.36x0.41 |
|
B/L color, LCD type
|
B/L yellow/green, STN yellow/green pos |
|
Power supply
|
5V |
|
Display Interface
|
6800 |
|
Display IC
|
SBN1661G |
|
Constructive Structure
|
COB |
|
View Angle
|
6H |
|
Frame
|
No |
|
Touch Panel
|
No touch |
|
O. Temperature (°C)
|
-20~70 |
|
Data Connection
|
Soldering PAD |
|
Pin Nr.
|
18 |
|
Pin Pitch
|
1mm |
|
Preferred - Not Preferred
|
Not Preferred |
