Eval Kit for TFT 10.1" 1024x600, CAN Bus interface with CUSTOMIZABLE CAN ID & GPIO Support, 500cd/m², Wide View Angle (IPS), Super extended temperature, No Touch

DESCRIPTION

Below are the features of this 10.1 inches Smart Display (Custom CAN ID + GPIO series):

  • +12V power supply input, the power consumption is around 6W.
  • Self testing after booting function.
  • CAN bus communication interface.
  • Supports Custom CAN ID protocol. Default baud rate is at 250KB.
  • Built in 16MB flash memory, store the font and Object Dictionary Data.
  • Without touch.
  • Embedded buzzer controlled by Master Device.
  • Demo set HOST can be used on multiple platforms, such as Computer (with USB to CAN Dongle), MCU, Raspberry Pi (with PiCAN2).
  • GPIO PIN support.

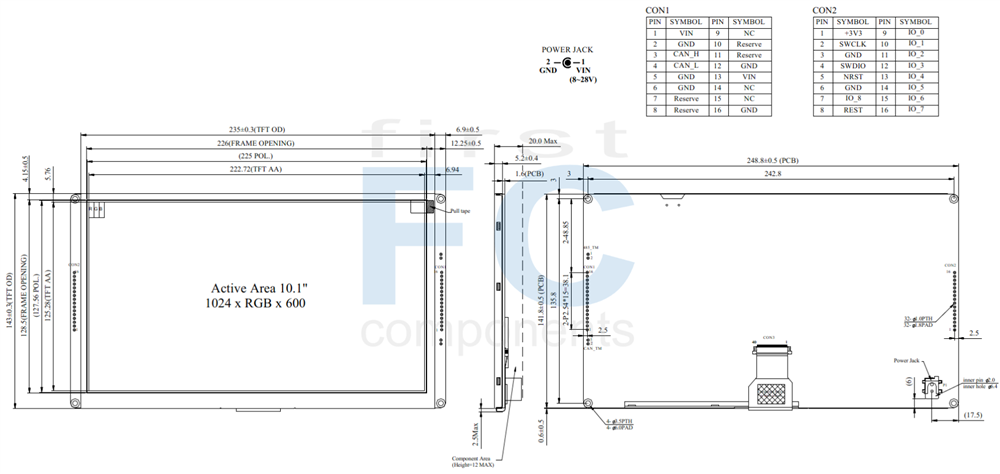

DRAWING



SPECIFICATIONS



General Specifications

General information

ItemStandard ValueUnit
Operating voltage 8V~28V dynamic Vdc
Communication Interface CAN bus Vpp
MCU STM32F746 N/A
Flash Memory 16 MB
LCD display size 10.1 inch
Dot Matrix 1024 x RGB x 600(TFT) dots
Module dimension 248.8(W) x 143(H) x 20(D) mm
Active area 222.72 (H) x 125.28(V) mm
Dot pitch 0.2175(W) x 0.2088(H) mm
Brightness Min: 500; Typ: 500
LCD type LED, Normally Black, Transmissive
View Direction 85/85/85/85
Aspect Ratio 16:9
Touch Panel Withuot TP
Surface Anti-Glare

Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃

Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage VCC － 8 12 28 V
Supply LCM current I(mA) - - 550 - mA

 BOM

ItemDescription
LCM WF101­1024600JL#0P0­FC
PCBA SV10010R100JC00N0102



Interface Pin Function

CON1 definition

PinSymbolFunction
1 VIN Power supply 8V to 28V input
2 GND Power supply GND input
3 CAN_H CAN bus D+
4 CAN_L CAN bus D-
5   GND Power supply GND input
6 GND Power supply GND input
7 Reserve USB_D-
8 Reserve USB_D+
9 NC -
10 Reserve USART RX interface(Reserve)
11 Reserve USART TX interface(Reserve)
12 GND Power supply GND input
13 VIN Power supply 8V to 28V input
14 NC -
15 NC -
16 GND Power supply GND input

CON2 definition

PinSymbolFunctionRemark
1 3V3 3.3V power for JTAG interface Output
2 SWCLK CLK pin for JTAG interface Input
3 GND GND for JTAG interface Output
4 SWDIO Data pin for JTAG interface I/O
5   NRST Reset pin for JTAG interface Input
6 GND GND Output
7 IO_8 WKup,ADC,Timer,Event,I/O TTL signal voltage is 3.3V
8 REST Reset TTL signal voltage is 3.3V
9 IO_0 ADC,DAC,Timer,Event,I/O TTL signal voltage is 3.3V
10 IO_1 ADC,Timer,Event,I/O TTL signal voltage is 3.3V
11 IO_2 ADC,Timer,Event,I/O TTL signal voltage is 3.3V
12 IO_3 RST,Timer,Event,I/O TTL signal voltage is 3.3V
13 IO_4 RST,Timer,Event,I/O TTL signal voltage is 3.3V
14 IO_5 ADC,Timer,Event,I/O TTL signal voltage is 3.3V
15 IO_6 RST,Timer,Event,I/O TTL signal voltage is 3.3V
16 IO_7 RST,ADC,Event,I/O TTL signal voltage is 3.3V



Display Usage

Functional description

Smart Display can be used to display the coordinate, status and data information provided by the connected HOST device. Customers can configure the position coordinates they want to display in normal operation mode (Node ID = 0x7B).

The Display is designed to be easily connected to a controller network, and to operate with minimum setup or knowledge of the SDO configuration on the controllers.


Splash Screen

The default splash image is shown below:

This product is produced as a generic product. If you require a custom splash image for your application, contact us to discuss.


Default Selection

Press the preferred application and hold for 3 seconds for the first time power on.

Default Selection



Example Screen Layout (Industry application)

The screen layout described in this section is intended to demonstrate the settings of screen items that can be used in an industry application situation.


Example Screen Layout (Vehicle automotive)

The screen layout described in this section is intended to demonstrate the settings of screen items that can be used in a vehicle automotive situation.


Example Screen Layout (Medical application)

The screen layout described in this section is intended to demonstrate the settings of screen items that can be used in a Medical application situation.

SKU: WWSSDEMO101J-AA-30#
Brand: Winstar
Disponibile: Si
Si tratta dela prima recensione per questo prodotto
Kit Accessori
€187,90 IVA esclusa

DESCRIPTION

Below are the features of this 10.1 inches Smart Display (Custom CAN ID + GPIO series):

  • +12V power supply input, the power consumption is around 6W.
  • Self testing after booting function.
  • CAN bus communication interface.
  • Supports Custom CAN ID protocol. Default baud rate is at 250KB.
  • Built in 16MB flash memory, store the font and Object Dictionary Data.
  • Without touch.
  • Embedded buzzer controlled by Master Device.
  • Demo set HOST can be used on multiple platforms, such as Computer (with USB to CAN Dongle), MCU, Raspberry Pi (with PiCAN2).
  • GPIO PIN support.



DRAWING



SPECIFICATIONS



General Specifications

General information

ItemStandard ValueUnit
Operating voltage 8V~28V dynamic Vdc
Communication Interface CAN bus Vpp
MCU STM32F746 N/A
Flash Memory 16 MB
LCD display size 10.1 inch
Dot Matrix 1024 x RGB x 600(TFT) dots
Module dimension 248.8(W) x 143(H) x 20(D) mm
Active area 222.72 (H) x 125.28(V) mm
Dot pitch 0.2175(W) x 0.2088(H) mm
Brightness Min: 500; Typ: 500
LCD type LED, Normally Black, Transmissive
View Direction 85/85/85/85
Aspect Ratio 16:9
Touch Panel Withuot TP
Surface Anti-Glare

Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃

Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage VCC － 8 12 28 V
Supply LCM current I(mA) - - 550 - mA

 BOM

ItemDescription
LCM WF101­1024600JL#0P0­FC
PCBA SV10010R100JC00N0102



Interface Pin Function

CON1 definition

PinSymbolFunction
1 VIN Power supply 8V to 28V input
2 GND Power supply GND input
3 CAN_H CAN bus D+
4 CAN_L CAN bus D-
5   GND Power supply GND input
6 GND Power supply GND input
7 Reserve USB_D-
8 Reserve USB_D+
9 NC -
10 Reserve USART RX interface(Reserve)
11 Reserve USART TX interface(Reserve)
12 GND Power supply GND input
13 VIN Power supply 8V to 28V input
14 NC -
15 NC -
16 GND Power supply GND input

CON2 definition

PinSymbolFunctionRemark
1 3V3 3.3V power for JTAG interface Output
2 SWCLK CLK pin for JTAG interface Input
3 GND GND for JTAG interface Output
4 SWDIO Data pin for JTAG interface I/O
5   NRST Reset pin for JTAG interface Input
6 GND GND Output
7 IO_8 WKup,ADC,Timer,Event,I/O TTL signal voltage is 3.3V
8 REST Reset TTL signal voltage is 3.3V
9 IO_0 ADC,DAC,Timer,Event,I/O TTL signal voltage is 3.3V
10 IO_1 ADC,Timer,Event,I/O TTL signal voltage is 3.3V
11 IO_2 ADC,Timer,Event,I/O TTL signal voltage is 3.3V
12 IO_3 RST,Timer,Event,I/O TTL signal voltage is 3.3V
13 IO_4 RST,Timer,Event,I/O TTL signal voltage is 3.3V
14 IO_5 ADC,Timer,Event,I/O TTL signal voltage is 3.3V
15 IO_6 RST,Timer,Event,I/O TTL signal voltage is 3.3V
16 IO_7 RST,ADC,Event,I/O TTL signal voltage is 3.3V



Display Usage

Functional description

Smart Display can be used to display the coordinate, status and data information provided by the connected HOST device. Customers can configure the position coordinates they want to display in normal operation mode (Node ID = 0x7B).

The Display is designed to be easily connected to a controller network, and to operate with minimum setup or knowledge of the SDO configuration on the controllers.


Splash Screen

The default splash image is shown below:

This product is produced as a generic product. If you require a custom splash image for your application, contact us to discuss.


Default Selection

Press the preferred application and hold for 3 seconds for the first time power on.

Default Selection



Example Screen Layout (Industry application)

The screen layout described in this section is intended to demonstrate the settings of screen items that can be used in an industry application situation.


Example Screen Layout (Vehicle automotive)

The screen layout described in this section is intended to demonstrate the settings of screen items that can be used in a vehicle automotive situation.


Example Screen Layout (Medical application)

The screen layout described in this section is intended to demonstrate the settings of screen items that can be used in a Medical application situation.

Specifiche di prodotto
Brand Winstar
Size 10.1"
Risoluzione 1024x600
Area Attiva (mm) 222.72x125.28
Colore Full Color
Alimentazione 12V
Interfaccia Display CAN Bus + GPIO
Angolo Visione IPS
Frame Yes
Touch Panel No touch
Temperatura O. (°C) -30~80
Preferred - Not Preferred Preferred
Download
Specifiche di prodotto
Brand Winstar
Size 10.1"
Risoluzione 1024x600
Area Attiva (mm) 222.72x125.28
Colore Full Color
Alimentazione 12V
Interfaccia Display CAN Bus + GPIO
Angolo Visione IPS
Frame Yes
Touch Panel No touch
Temperatura O. (°C) -30~80
Preferred - Not Preferred Preferred
