    Graphic LCD 2.2" 122x32, B/L white, STN blue neg, Transmissive, COB, 5V, Interface 6800, 6 O'clock, No VNEG, IC SBN1661G
    Brand: Winstar
    Cod.: WG12232A-TMI-N#A

    Kit accessori

    Prezzi per quantità
    Quantità
    1+
    5+
    10+
    25+
    Prezzo
    €14,60
    €13,10
    €12,40
    €12,10

    Per quantità maggiori di 49pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

    Disponibilità: Disponibile
    €14,60 IVA esclusa
    i h

    RECOMMENDED ONLY AS SPARE PARTS

    For new projects please contact us at [email protected].



    DESCRIPTION



    WG12232A is a monochrome 122x32 graphic LCD display module which is having the outline size 84 x 44 mm and viewing area size of 60 x 18 mm. This 122x32 graphic LCD display is built in with SBN1661G controller IC or compatible controller.  It supports 6800  8-bit parallel interface and 5V power supply; it also Negative Voltage Generator 3V optional.  The WG12232A type is available for internal oscillation, if customers require External oscillation 2KHz, please choose WG12232C type. This module can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.


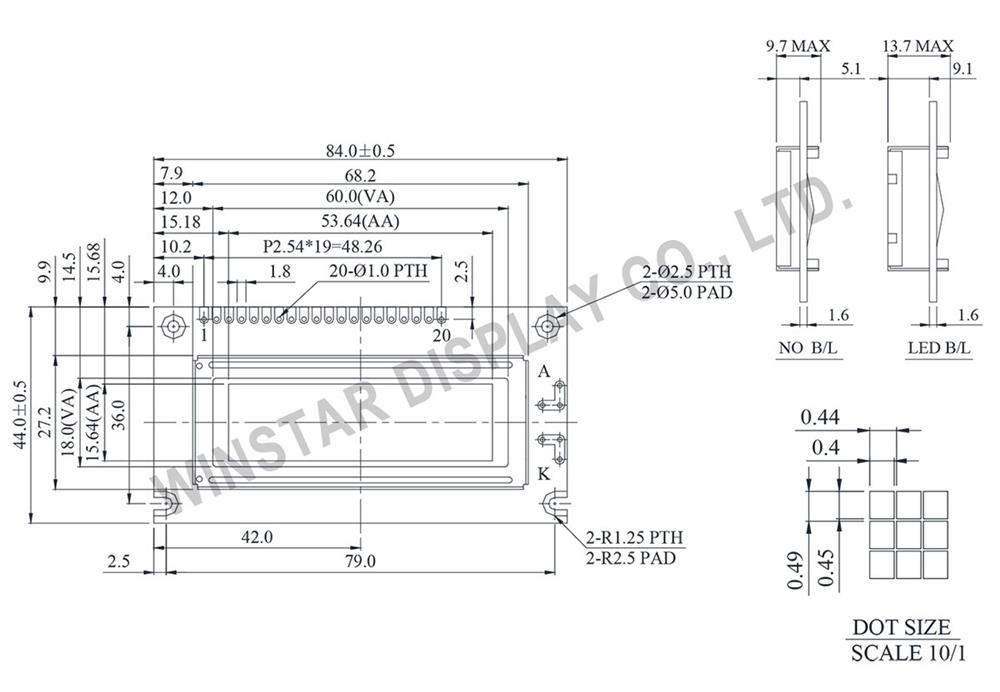

    DRAWING

    122x32 Graphic LCD, Graphic LCD Display Module

    SPECIFICATIONS



    Interface Pin Function

    Pin No.SymbolDescription
    1 VSS Ground
    2 VDD Power supply for logic
    3 VO Contrast Adjustment
    4 A0 Data/ Instruction select signal
    5 CS1 Chip enable IC1
    6 CS2 Chip enable IC2
    7 NC/CL No connection
    8 NC/E No connection
    9 R/W Read/Write select signal
    10~17 DB0~DB7 Data bus line
    18 RES Controller reset signal, Active Low
    19 A Power supply for B/L +
    20 K Power supply for B/L -



    Mechanical Data

    ItemStandard ValueUnit
    Module Dimension 84.0 × 44.0 mm
    Viewing Area 60.0 × 18.0 mm
    Mounting Hole 79.0 × 36.0 mm
    Dot Pitch 0.44 × 0.49 mm
    Dot Size 0.4 × 0.45 mm



    Electrical Characteristics

    ItemSymbolStandard Value
    typ.
    Unit
    Input Voltage VDD 3/5 V
    Recmmended LCD Driving
    Voltage for Normal Temp.
    Version module @25°C
    VDD-VO 4.45 V


    Specifiche di prodotto
    Size 2.2"
    Resolution 122x32
    Active Area (mm) 53.64x15.64
    Dot Size 0.40x0.45
    B/L color, LCD type B/L white, STN blue neg
    Power supply 5V
    Display Interface 6800
    Display IC SBN1661G
    Constructive Structure COB
    View Angle 6H
    Frame Yes
    Touch Panel No touch
    O. Temperature (°C) -20~70
    Data Connection Soldering PAD
    Pin Nr. 20
    Pin Pitch 2.54mm
    Preferred - Not Preferred Not Preferred
    *
    *
    *
    *
