WFN1560EA5#0P0-FC

Name: WFN1560EA5#0P0-FC
SKU: WFN1560EA5#0P0-FC
Price: 130.20 EUR
Availability: InStock

TFT 15.6" 1920x1080, LCD Panel, Interface eDP, 600cd/m², Wide View Angle (IPS), Anti-Glare, No touch

Brand: Winstar

Cod.: WFN1560EA5#0P0-FC

Prezzi per quantità

Quantità

10+

Prezzo

€130,20

€117,20

€110,20

Per quantità maggiori di 24pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

€130,20 IVA esclusa

Quantità:

i h

Overview
Specifiche
Download
Contattaci

DESCRIPTION

WFN1560EA5#0P0-FC is a 15.6”(15.6”diagonal) TFT Liquid Crystal Display module withDriver ICs and 30 pins eDP interface. This product supports 1920x 1080 FHD mode and can display 16.7 M colors.

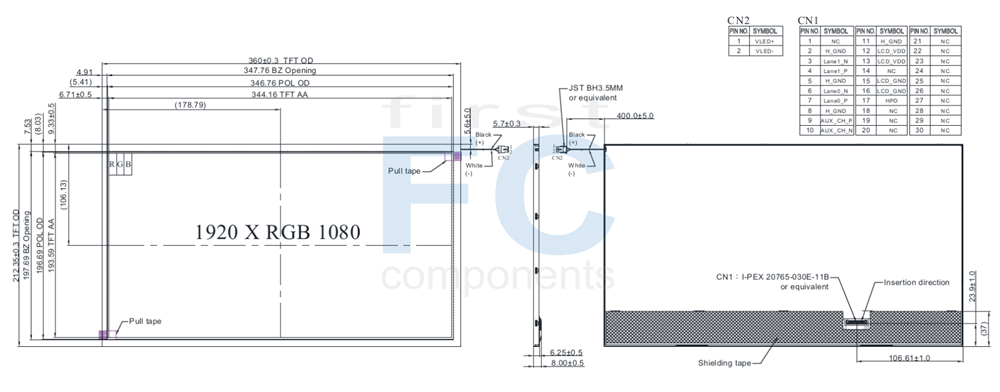

DRAWING

SPECIFICATIONS

Interface

LCM PIN Definition (CN1)

Pin No.	Signal Name	Description
1	NC	No Connection (Reserved for LCD test)
2	H_GND	High Speed Ground
3	Lane1_N	Complement Signal-Lane 1
4	Lane1_P	True Signal-Main Lane 1
5	H_GND	High Speed Ground
6	Lane0_N	Complement Signal-Lane 0
7	Lane0_P	True Signal-Main Lane 0
8	H_GND	High Speed Ground
9	AUX_CH_P	True Signal Auxiliary Channel
10	AUX_CH_N	Complement Signal-Auxiliary Channel
11	H_GND	High Speed Ground
12	LCD_VDD	Power Supply +3.3V(typical)
13	LCD_VDD	Power Supply +3.3V(typical)
14	NC	No Connection (Reserved for LCD test)
15	LCD_GND	Ground
16	LCD_GND	Ground
17	HPD	Hot Plug Detect
18-30	NC	Not Connection

Backlight PIN Definition (CN2)

Pin No.	Symbol	Description
1	VLED+	Black, LED_Anode
2	VLED-	White, LED_Cathode

General Specifications

Item	Dimension	Unit
Size	15.6	inch
Dot Matrix	1920 x RGB x 1080	dots
Module dimension	360.0(W) x 212.35(H) x 8.0(D)	mm
Active area	344.16 x 193.59	mm
Pixel pitch	0.17925 (H) x 0.17925 (V)	mm
LCD type	TFT, Normally Black, Transmissive
Viewing Angle	80/80/80/80
Backlight Type	LED, Normally White
TFT Driver IC	TC2065G3PUR09UT-A2-I or Equivalent
TFT Interface	eDP 1.2
Touch Panel	Without Touch Panel
Surface	Anti-Glare

Absolute Maximum Ratings

Item	Symbol	Min	Typ	Max	Unit
Operating Temperature	TOP	-20	－	+70	℃
Storage Temperature	TST	-30	－	+80	℃

Electrical Characteristics

Parameter		Symbol	Min.	Typ.	Max.	Units
Supply Voltage For LCM		LCD_VDD	3.0	3.3	3.6	V
Ripple Voltage		V_RP	-	50	150	mV
Inrush Current		I_RUSH	0	-	1.5	A
LCD_VDD Current		IDD	-	250	350	mA
LCD_VDD Current		IDDMAX	-	-	400	mA
HDP Pull-Low Resistance		R_HDP	30K	-	100K	ohm
HPD	High Level	VH_HDP	2.25	-	2.75	V
HPD	Low Level	VL_HDP	0	-	0.4	V

Specifiche di prodotto

Size	15.6"
Resolution	1920x1080
Active Area (mm)	344.16x193.59
Color	Full Color
Display Interface	eDP
Display IC	No
View Angle	IPS
Frame	No
Touch Panel	No touch
O. Temperature (°C)	-20~70
Data Connection	eDP Connector
Pin Nr.	30
Pin Pitch	0.5mm
Preferred - Not Preferred	Preferred
