DESCRIPTION
The WFN0500DA2#000-FC is a 5-inch transflective color TFT display module that offers excellent sunlight readability and consistent viewing from all angles, thanks to its IPS panel. This module is well-suited for outdoor industrial devices, vehicle GPS displays, and portable equipment used in challenging environments.
Featuring an RGB interface and integrated JD9165 driver IC, the WFN0500DA2#000-FC is easy to integrate into space-constrained systems. The transflective display mode helps reduce power consumption while maintaining visibility in a wide range of lighting conditions, making it a reliable choice for compact and efficient HMI designs.
Key Features:
- 5-inch transflective IPS TFT with 800x480 resolution
- Wide viewing angles in both transmissive and reflective modes
- Transmissive: 60/60/60/50 (U/D/L/R)
- Reflective: 70/60/70/60 (U/D/L/R)
- Brightness: 200 cd/m² for improved outdoor readability
- Long-life LED backlight rated for 25,000 hours
- Operating temperature: -30°C to +85°C (wide range)
With its sunlight-readable performance, low power consumption, and rugged specifications, the WFN0500DA2#000-FC is an ideal solution for engineers developing reliable HMI systems for outdoor or vehicle applications.

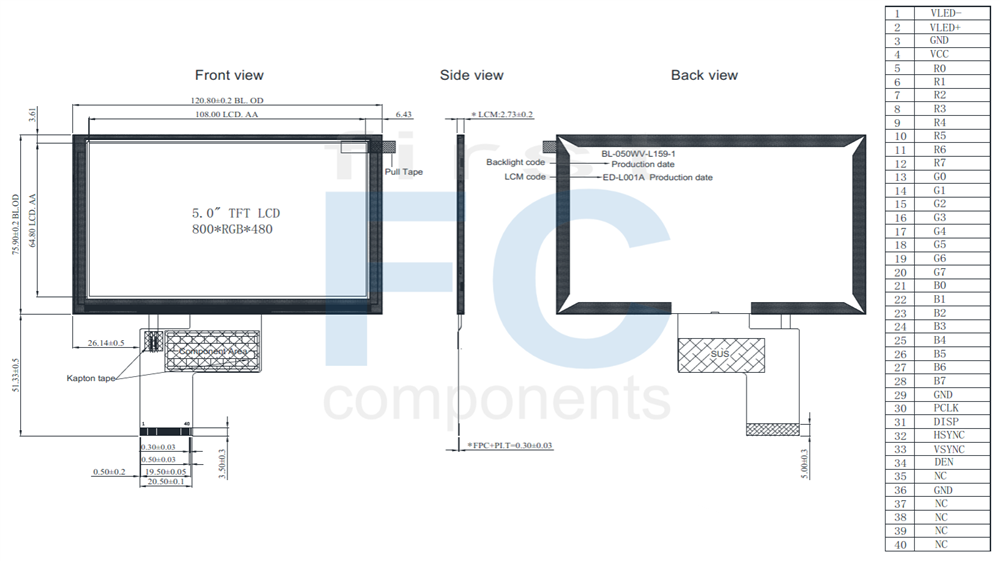

DRAWING

SPECIFICATIONS
General Specifications
| Item | Dimension | Unit |
| Size |
5.0 |
inch |
| Dot Matrix |
800 × RGB × 480 (TFT) |
dots |
| Module dimension |
120.8 × 75.9 × 2.73 |
mm |
| Active area |
108.0 × 64.8 |
mm |
| Pixel Pitch |
0.135 × 0.135 |
mm |
| LCD type |
TFT, Normally Black, Transflective |
| Viewing angle: |
Trans: Typ. 60/60/60/50(U/D/L/R) Ref: Typ. 70/60/70/60(U/D/L/R) |
| TFT Driver IC |
JD9165 |
| TFT Interface |
RGB 24bits |
| Backlight Type |
LED, Normally White |
| Touch Panel |
Without Touch Panel |
| Surface |
Glare |
Absolute Maximum Ratings
| Item | Symbol | Min | Typ | Max | Unit |
| Operating Temperature |
TOP |
-30 |
- |
+85 |
℃ |
| Storage Temperature |
TST |
-30 |
- |
+85 |
℃ |
Electrical Characteristics
Operating conditions
| Item | Symbol | Min. | Typ. | Max. | Unit |
| Power Supply Voltage |
VDD |
3.0 |
3.3 |
3.6 |
V |
| Power Supply Current |
IDD |
- |
30 |
- |
mA |
| Logic Input High Voltage |
VIH |
0.7VDD |
- |
VDD |
V |
| Logic Input Low Voltage |
VIL |
0 |
- |
0.3VDD |
V |
| Panel Power Consumption |
PVDD |
- |
0.099 |
- |
W |
| Module Power Consumption |
PLCM |
- |
1.719 |
- |
W |
LED driving conditions
| Item | Symbol | Min. | Typ. | Max. | Unit |
| LED current |
- |
- |
90 |
- |
mA |
| LED voltage |
VLED+ |
16.8 |
18 |
19.2 |
V |
| Backlight Power consumption |
PLED |
- |
1.62 |
- |
W |
| LED Life Time |
- |
25,000 |
- |
- |
Hr |
Interface Pin Function
LCM PIN Definition
| Pin No. | Symbol | I/O | Description |
| 1 |
VLED- |
P |
Power supply for backlight cathode |
| 2 |
VLED+ |
P |
Power supply for backlight anode |
| 3 |
GND |
P |
Power Ground |
| 4 |
VDD |
P |
Power supply to the internal logic power regulator( 3.3V) |
| 5-12 |
R0-R7 |
I |
Red data input. |
| 13-20 |
G0-G7 |
I |
Green data input. |
| 21-28 |
B0-B7 |
I |
Blue data input. |
| 29 |
GND |
P |
Power Ground |
| 30 |
PCLK |
I |
Pixel clock input pin, Negative polarity |
| 31 |
DISP |
I |
Standby mode. Normally pulled high. |
| 32 |
HSYNC |
I |
Horizontal sync signal, Negative polarity |
| 33 |
VSYNC |
I |
Vertical sync signal, Negative polarity |
| 34 |
DE |
I |
Data input enable. Display access is enabled when DE is “H” |
| 35 |
NC |
- |
Dummy |
| 36 |
GND |
P |
Power Ground |
| 37 |
NC |
- |
Dummy |
| 38 |
NC |
- |
Dummy |
| 39 |
NC |
- |
Dummy |
| 40 |
NC |
- |
Dummy |
Specifiche di prodotto
|
Brand
|
Winstar |
|
Size
|
5" |
|
Resolution
|
800x480 |
|
Active Area (mm)
|
108.00x64.80 |
|
Color
|
Full Color |
|
Display Interface
|
RGB |
|
Display IC
|
No |
|
View Angle
|
IPS |
|
Sunlight Readable
|
Transflective |
|
Frame
|
No |
|
Touch Panel
|
No touch |
|
O. Temperature (°C)
|
-30~80 |
|
Data Connection
|
FPC for ZIF Connector |
|
Pin Nr.
|
40 |
|
Pin Pitch
|
0.5mm |
|
Preferred - Not Preferred
|
Preferred |
