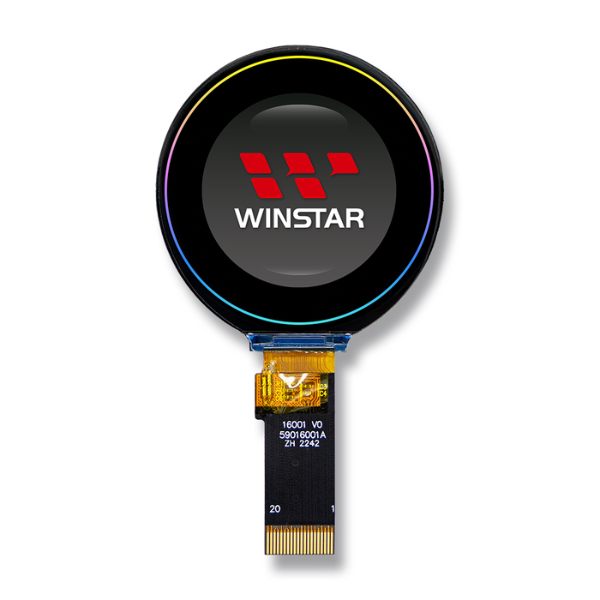

WFN0160MA2#0P0-FC

TFT 1.6" 400x400, Round LCD Panel, Full Color, Interface MIPI IC ST7797, Wide View Angle (IPS), 350 cd/m2, Standard Temp., No touch

DESCRIPTION

This 1.6-inch Circular IPS TFT LCD Display Module features advanced Thin Film Transistor (TFT) technology, utilizing Amorphous Silicon TFT as the switching element. The module offers a high-resolution display of 400x400 pixels with support for up to 16.7 million colors, ensuring sharp and vibrant visuals.

The display is equipped with In-Plane Switching (IPS) technology, providing a wide viewing angle of 85° in all directions (up, down, left, and right). With a typical brightness of 350 cd/m² and a contrast ratio of 1000:1, it delivers stable and clear visuals in most standard application environments.

The module is controlled by the ST7797 IC and has a 1-Lane MIPI interface, making it easy to integrate with a variety of embedded systems. It operates with a digital supply voltage range of 2.5V to 3.6V (typical 3.3V) and boasts an LED backlight lifetime of up to 50,000 hours, ensuring long-lasting performance.

This circular display module is ideal for applications in smart home devices, industrial control systems, and wearable technologies, as well as any other innovative designs requiring a round display area.


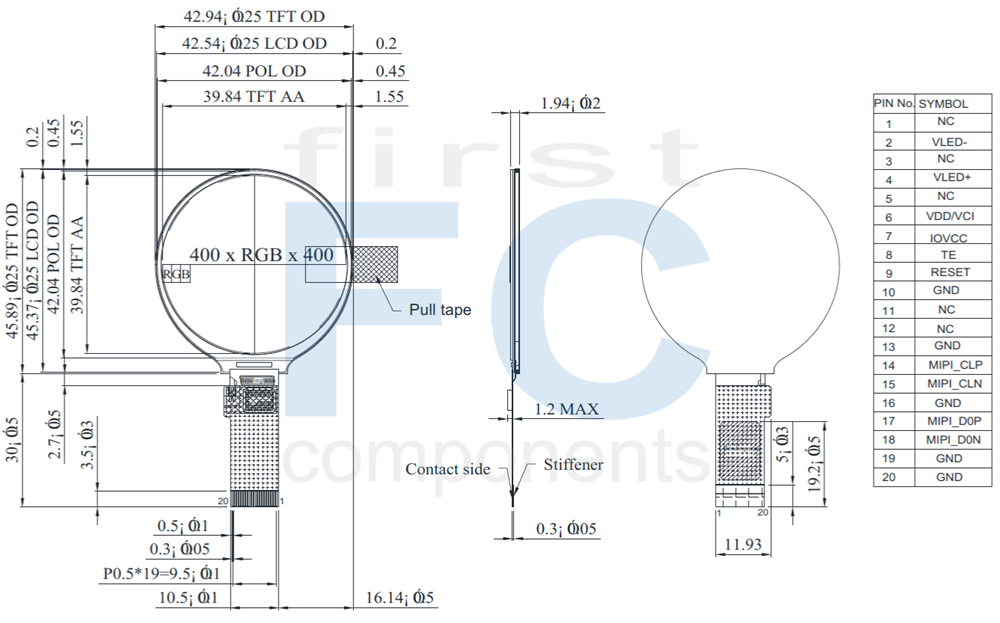

DRAWING

SPECIFICATIONS

General Specifications

ItemDimensionUnit
Size 1.6 inch
Dot Matrix 400 x RGB x 400 (TFT) dots
Module dimension 42.94 x 45.89 x 1.94 mm
Active area 39.84 x 39.84 mm
Pixel pitch 0.0996 x 0.0996 mm
LCD type TFT, Normally Black, Transmissive
Viewing Angle 85/85/85/85
TFT Interface 1-Lane MIPI
Backlight Type LED ,Normally White
TFT Controller IC ST7797 or Equivalent
Touch Panel Without Touch Panel
Surface Anti-Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 +70
Storage Temperature TST -30 +80



Electrical Characteristics

Operating Conditions

ItemSymbolMin.Typ.Max.Unit
Digital Supply Voltage VCI 2.5 3.3 3.6 V
Interface Operation Voltage IOVCC 1.65 1.8 3.3 V
Normal mode Current consumption IDD -- 10 20 mA
Level input voltage VIH 0.7 IOVCC -- Iovcc V
VIL GND -- 0.3 IOVCC V
Level output voltage VOH 0.8 IOVCC -- Iovcc V
VOL GND -- 0.2 IOVCC V
Differential Input High Threshold Voltage VIT+ -- 0 50 mV
Differential Input Low Threshold Voltage VIT- -50 0 -- mV
Single-ended Receiver Input Operation Voltage Range VIR 0.5 - 1.2 V



LED Driving Conditions

ItemSymbolMin.Typ.Max.Unit
LED current - - 60 - mA
LED voltage VLED+ 2.8 3.2 3.4 V
LED Life Time - 50000 - - Hr



Interface

LCM PIN Definition

Pin NoSymbolFunction
1 NC No connection
2 VLED- Cathode pin of backlight.
3 NC No connection
4 VLED+ Anode pin of backlight.
5 NC No connection
6 VDD/VCI Supply Voltage (3.3V).
7 IOVCC I/O power supply voltage.
8 TE -Tearing effect output
Leave the pin to open when not in use.
9 RESET - The external reset input.
Initializes the chip with a low input. Be sure to execute a power-on reset after supplying power.
10 GND Ground.
11 NC No connection
12 NC No connection
13 GND Ground.
14 MIPI_CLP MIPI DSI differential clock pair (DSI-CLK+/-).
15 MIPI_CLN
16 GND Ground.
17 MIPI_D0P MIPI DSI differential data pair (DSI-Dn+/-).
18 MIPI_D0N
19 GND Ground.
20 GND Ground.


SKU: WFN0160MA2#0P0-FC
Brand: Winstar
Disponibile: Si
Kit Accessori
Prezzi per quantità
Quantità
1+
5+
Prezzo
€15,40
€11,30

Per quantita’ maggiori di 25pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

€15,40 IVA esclusa
