    WF70-800480B6L#0SPW0-FC

    TFT 7" 800x480 LCD Panel, Interface LVDS (20pin), High Brightness 1100cd/m², Wide View Angle (IPS), Super extended Temperature, No touch, (alternative of Mitsubishi 7” TFT P/N AA070ME11)
    Brand: Winstar
    Cod.: WF70-800480B6L#0SPW0-FC
    Prezzi per quantità
    Quantità
    1+
    5+
    10+
    Prezzo
    €93,00
    €83,70
    €78,70

    Per quantità maggiori di 24pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

    Disponibilità: Disponibile
    €93,00 IVA esclusa
    i h

    DESCRIPTION

    7 inch 800 x 480 LVDS interface IPS TFT-LCD module. It is an alternative of Mitsubishi 7” TFT Part No. AA070ME11. Mitsubishi announced in June 2020 that it will end of production of TFT-LCD modules manufacturing by its wholly owned subsidiary Melco Display Technology Inc.  Customers can choose module as a replacement for Mitsubishi AA070ME11.

    It is featured with IPS technology which is having the advantages of wider viewing angle of Left:80 / Right:80 / Up:80 / Down:80 degree, contrast ratio 1000:1 (typical value), high brightness 1100 nits, anti-glare surface panel, aspect ratio 15:9. This module is built-in with HX8249-A and HX8678-C driver ICs, it supports LVDS interface. The LVDS(Low-Voltage-Differential-Signaling)becomes more popular for TFT LCD display. This module was designed to use LVDS interface which is a popular choice for TFT LCDs and peripherals in need of high bandwidth, like high-definition graphics and fast frame rates. It is a great solution because of its high speed of data transmission while using low voltage and improved noise performance. The supply voltage (VDD) is from 2.7V to 3.6V, typical value 3.3V. It can be operated at temperatures from -30°C to +80°C and storage temperatures from -30°C to +80°C.


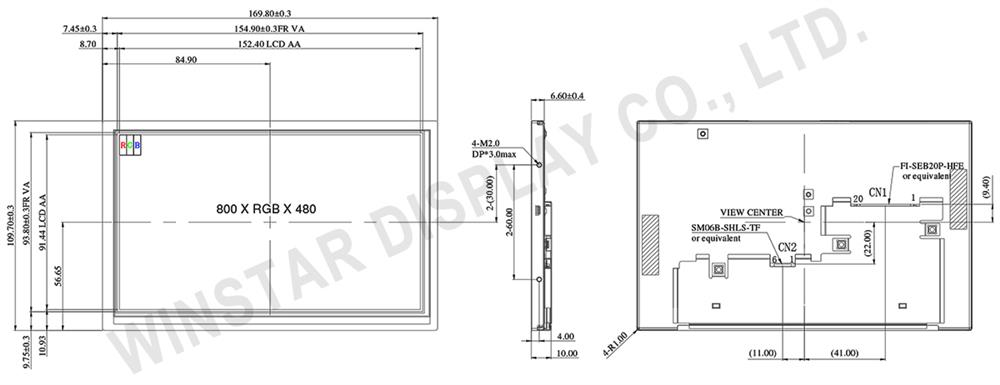

    DRAWING



    SPECIFICATIONS

    Interface

    LCM PIN Definition(CN1)

    PinSymbolFunction
    1 VDD Power voltage
    2 VDD Power voltage
    3 GND(DISP) Power Ground
    4 GND Power Ground
    5 LINK0- Input pins without termination resistor for LVDS mode.
    Keep these pins floating or connect to VSS1 if not used.
    6 LINK0+
    7 NC No connection
    8 LINK1- Input pins without termination resistor for LVDS mode.
    Keep these pins floating or connect to VSS1 if not used.
    9 LINK1+
    10 NC No connection
    11 LINK2- Input pins without termination resistor for LVDS mode.
    Keep these pins floating or connect to VSS1 if not used.
    12 LINK2+
    13 NC No connection
    14 CLKIN- Input pins without termination resistor for LVDS mode.
    Keep these pins floating or connect to VSS1 if not used.
    15 CLKIN
    16 NC No connection
    17 LINK3- Input pins without termination resistor for LVDS mode.
    Keep these pins floating or connect to VSS1 if not used.
    18 LINK3+
    19 MODE Input data format selection. Effective when FCS=1.
    MODEFunctionNote
    1 8-bit Default
    0 6-bit -
    20 SC RL & TB Selection
    1: Left to Right, Top to Bottom. (Default)
    0: Right to Left, Bottom to Left.




    Backlight PIN Definition(CN2)

    PinSymbolDescription
    1-2 NC No connection
    3 VLED1- VLED1_ Cathode
    4 VLED1+ VLED1_ Anode
    5 VLED2- VLED2_ Cathode
    6 VLED2+ VLED2_ Anode



    General Specifications

    ItemDimensionUnit
    Size 7.0 inch
    Dot Matrix 800 x RGB x 480(TFT) dots
    Module dimension 169.8 (W) x 109.7 (H) x 10.0 (D) mm
    Active area 152.40 x 91.44 mm
    Pixel pitch 0.1905 x 0.1905 mm
    LCD type TFT, Normally Black, Transmissive
    View Direction 80/80/80/80
    TFT Interface LVDS
    TFT Driver IC HX8249-A + HX8678-C or Equivalent
    Aspect Ratio 15:9
    Backlight Type LED, Normally White
    Touch Panel Without Touch Panel
    Surface Anti-Glare



    Absolute Maximum Ratings

    ItemSymbolMinTypMaxUnit
    Operating Temperature TOP -30 - +80 ℃
    Storage Temperature TST -30 - +80 ℃



    Electrical Characteristics

    Operating conditions

    ItemSymbolMinTypMaxUnit
    Supply Voltage VDD 2.7 3.3 3.6 V
    Current of power supply IDD - 133 200 mA


    Specifiche di prodotto
    Size 7"
    Resolution 800x480
    Active Area (mm) 152.40x91.44
    Color Full Color
    Display Interface LVDS
    Display IC No
    View Angle IPS
    Sunlight Readable High 601~1200cd/m²
    Frame No
    Touch Panel No touch
    O. Temperature (°C) -30~80
    Data Connection LVDS Connector
    Pin Nr. 20
    Pin Pitch 1.25mm
    Preferred - Not Preferred Preferred
    *
    *
    *
    *
