    WF70-800480A9D#0SPW1-FC

    TFT 7" 800x480 LCD Panel, Interface RGB (50pin), High Brightness 700cd/m², Wide View Angle (IPS) Square pixels, Super extended Temperature, Resistive touch panel
    Brand: Winstar
    Cod.: WF70-800480A9D#0SPW1-FC

    Kit accessori

    Prezzi per quantità
    Quantità
    1+
    5+
    10+
    Prezzo
    €86,90
    €78,20
    €73,50

    Per quantità maggiori di 24pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

    Disponibilità: Il prodotto non può essere aggiunto al carrello. Prego verificare con FC la futura disponibilità
    €86,90 IVA esclusa
    i h

    DESCRIPTION

    High Brightness 7 inch IPS Wide Temperature TFT-LCD display with Resistive Touch Panels (RTP), made of resolution 800x480 pixels. This module is built in with HX8249-A and HX8678-C driver ICs, it supports 24-bit RGB interface. It is adopted IPS panel which is having the advantage of wider view angle of Left:80 / Right:80 / Up:80 / Down:80 degree (typical), contrast ratio 1000:1 (typical value), high brightness 700 nits (typical value), anti-glare surface panel, aspect ratio 15:9. Standard brightness also available.

    The supply voltage (VCC) is from 2.7V to 3.6V, typical value 3.3V. Operating temperatures from -30℃ to +80℃ and storage temperatures from -30℃ to +80℃.

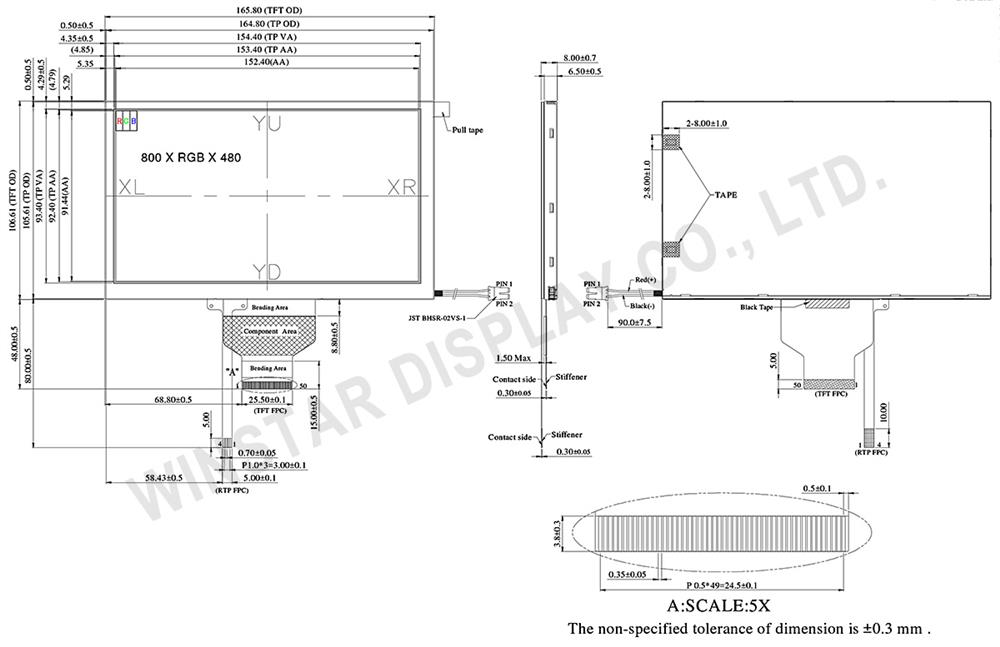

    DRAWING





    SPECIFICATIONS



    Interface

    1.LCM PIN Definition

    PinSymbolFunctionRemark
    1-4 NC No connection
    5 GND Power Ground
    6 NC No connection
    7 VCC Power voltage
    8 MODE Input timing mode selection.
    MODE Function Note
    0 DE only -
    1 HS+VS Default

    9 DE Data enable signal for TTL mode.
    10 VS Vertical sync input
    11 HS Horizontal sync input
    12 B7 Blue data(MSB)
    13 B6 Blue data
    14 B5 Blue data
    15 B4 Blue data
    16 B3 Blue data
    17 B2 Blue data
    18 B1 Blue data
    19 B0 Blue data(LSB)
    20 G7 Green data(MSB)
    21 G6 Green data
    22 G5 Green data
    23 G4 Green data
    24 G3 Green data
    25 G2 Green data
    26 G1 Green data
    27 G0 Green data(LSB)
    28 R7 Red data(MSB)
    29 R6 Red data
    30 R5 Red data
    31 R4 Red data
    32 R3 Red data
    33 R2 Red data
    34 R1 Red data
    35 R0 Red data (LSB)
    36 GND Power Ground
    37 DCLK Sample clock
    38 GND Power Ground
    39 L/R Horizontal shift direction (source output) selection.
    L/RSource output sequence and data orderNote
    1 Left to right Default
    0 Right to left -
    Note1
    40 U/D Vertical shift direction (gate output) selection.
    U/DFunctionNote
    1 Top→bottom Default
    0 Bottom→top -
    Note2
    41 NC No connection
    42 NC No connection
    43 NC No connection
    44 RESET Reset pin. The chip is in reset state when RESETB=0.
    45 NC No connection
    46 NC No connection
    47 DITHB STBYB Standby mode setting pin. The chip is in standby mode when STBYB=0.
    48 GND Power Ground
    49 NC No connection
    50 NC No connection

    Note 1: Selection of scanning mode
    Setting of scan control inputScanning direction
    U/DL/R
    1 1 Top to Bottom, left to right
    1 0 Top to Bottom, right to left
    0 0 Bottom to Top, right to left
    0 1 Bottom to Top, left to right
    Note 2: Definition of scanning direction.
    Refer to the figure as below:

    2.Backlight PIN Definition

    PinSymbolDescription
    1 VLED+ Red, LED_ Anode
    2 VLED- Black, LED_ Cathode



    General Specifications

    ItemDimensionUnit
    Size 7.0 inch
    Dot Matrix 800 x RGB x 480(TFT) dots
    Module dimension 165.8 (W) x 106.61 (H) x 8.0(D) mm
    Active area 152.40 x 91.44 mm
    Pixel pitch 0.1905 x 0.1905 mm
    LCD type TFT, Normally Black, Transmissive
    View Direction 80/80/80/80
    TFT Interface 24-bit RGB
    TFT Driver IC HX8249-A + HX8678-C or Equivalent
    Aspect Ratio 15:9
    Backlight Type LED, Normally White
    Touch Panel Resistive Touch Panel
    Surface Anti-Glare



    Absolute Maximum Ratings

    ItemSymbolMinTypMaxUnit
    Operating Temperature TOP -30 - +80 ℃
    Storage Temperature TST -30 - +80 ℃



    Electrical Characteristics

    Operating conditions

    ItemSymbolMinTypMaxUnit
    Supply Voltage Vcc 2.7 3.3 3.6 V
    Current of power supply Icc - 101 150 mA
    Specifiche di prodotto
    Size 7"
    Resolution 800x480
    Active Area (mm) 152.40x91.44
    Color Full Color
    Display Interface RGB
    Display IC No
    View Angle IPS
    Sunlight Readable High 601~1200cd/m²
    Frame No
    Touch Panel Resistive
    O. Temperature (°C) -30~80
    Data Connection FPC for ZIF Connector
    Pin Nr. 50
    Pin Pitch 0.5mm
    Preferred - Not Preferred Preferred
    *
    *
    *
    *
