WF46-800320AD#A00-FC

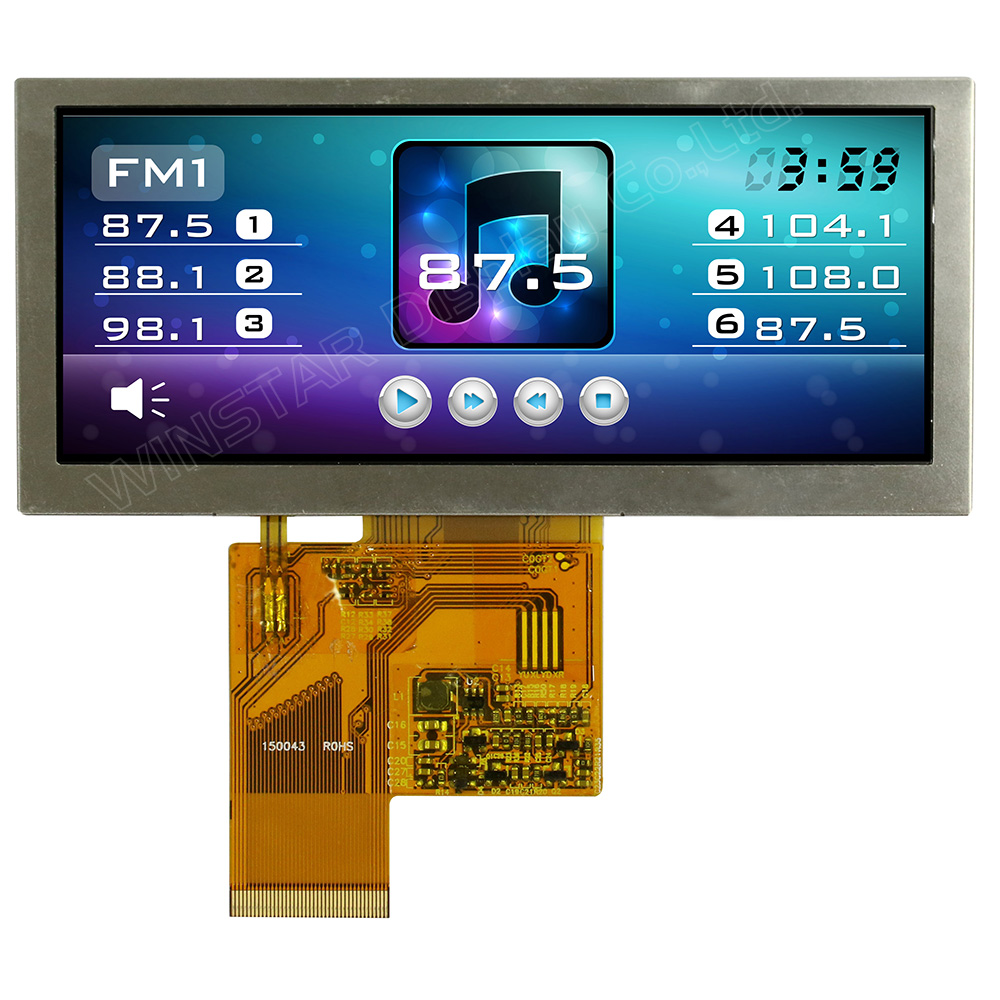

Immagine di WF46-800320AD#A00-FC Immagine di WF46-800320AD#A00-FC
TFT 4.6" 800x320, Bar Type, Interface RGB, 400cd/m², View direction 12H, No touch (PIN32/33 NC - Option HSYNC/VSYNC)

DESCRIPTION

4.6 inch TFT LCD display module made of 800x320 dots pixel.  It has module dimension of 120.7x56.16 mm and Active area size of 108x43.2 mm.  This TFT LCD display is without built in controller on module. It supports RGB interface, 3.3V (typical) power supply, supports DE mode and Sync mode.  It’s View Angle (U/D/R/L) is 50/70/70/70 (typical); brightness is 400 cd/m2.  This TFT module can be used in information display device, server system, audio system, industrial device, security equipment which requires display in high quality and colorful image. Operating temperature from -20℃ to +70℃; its storage temperature range from -30℃ to +80℃.


DRAWING

Winstar 4.6" TFT LCD Module - WF46ATIATDNN0

SPECIFICATIONS



Interface

LCM PIN Definition

No.SymbolDescription
1 VLED- Backlight LED Cathode
2 VLED+ Backlight LED Anode.
3 GND System Ground
4 VCC Power supply for logic operation
5~12 R0~R7 Data bus
13~20 G0~G7 Data bus
21~28 B0~B7 Data bus
29 GND System Ground
30 DCLK Pixel clock signal
31 DISP Display on/off control
32 HSYNC Horizontal Sync signal
33 VSYNC Vrtical Sync signal
34 DE Data Enable
35 NC No connect
36 GND System Ground
37 NC No connect
38 NC No connect
39 NC No connect
40 NC No connect



General Specifications

ItemDimensionUnit
Size 4.6 inch
Dot Matrix 800 × RGB × 320(TFT) dots
Module dimension 120.7(W) × 56.16(H) × 3.1(D) mm
Active area 108 × 43.2 mm
Dot pitch 0.045(W) × 0.135(H) mm
LCD type TFT, Normally White, Transmissive
View Direction 12 o'clock
Gray Scale Inversion Direction 6 o'clock
Aspect Ratio Bar Type
Backlight Type LED, Normally White
Touch Panel Without touch panel (screen)
Surface Anti-Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Electronical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For LCM VCC — 3.0 3.3 3.6 V
Supply Current For LCM ICC VCC=3.3V — 50 70 mA
SKU: WF46-800320AD#A00-FC
Brand: Winstar
Disponibile: Si
Si tratta dela prima recensione per questo prodotto
Kit Accessori
Prezzi per quantità
Quantità
1+
5+
10+
Prezzo
€53,60
€48,20
€42,90

Per quantita’ maggiori di 25pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

€53,60 IVA esclusa

DESCRIPTION

4.6 inch TFT LCD display module made of 800x320 dots pixel.  It has module dimension of 120.7x56.16 mm and Active area size of 108x43.2 mm.  This TFT LCD display is without built in controller on module. It supports RGB interface, 3.3V (typical) power supply, supports DE mode and Sync mode.  It’s View Angle (U/D/R/L) is 50/70/70/70 (typical); brightness is 400 cd/m2.  This TFT module can be used in information display device, server system, audio system, industrial device, security equipment which requires display in high quality and colorful image. Operating temperature from -20℃ to +70℃; its storage temperature range from -30℃ to +80℃.


DRAWING

Winstar 4.6" TFT LCD Module - WF46ATIATDNN0

SPECIFICATIONS



Interface

LCM PIN Definition

No.SymbolDescription
1 VLED- Backlight LED Cathode
2 VLED+ Backlight LED Anode.
3 GND System Ground
4 VCC Power supply for logic operation
5~12 R0~R7 Data bus
13~20 G0~G7 Data bus
21~28 B0~B7 Data bus
29 GND System Ground
30 DCLK Pixel clock signal
31 DISP Display on/off control
32 HSYNC Horizontal Sync signal
33 VSYNC Vrtical Sync signal
34 DE Data Enable
35 NC No connect
36 GND System Ground
37 NC No connect
38 NC No connect
39 NC No connect
40 NC No connect



General Specifications

ItemDimensionUnit
Size 4.6 inch
Dot Matrix 800 × RGB × 320(TFT) dots
Module dimension 120.7(W) × 56.16(H) × 3.1(D) mm
Active area 108 × 43.2 mm
Dot pitch 0.045(W) × 0.135(H) mm
LCD type TFT, Normally White, Transmissive
View Direction 12 o'clock
Gray Scale Inversion Direction 6 o'clock
Aspect Ratio Bar Type
Backlight Type LED, Normally White
Touch Panel Without touch panel (screen)
Surface Anti-Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Electronical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For LCM VCC — 3.0 3.3 3.6 V
Supply Current For LCM ICC VCC=3.3V — 50 70 mA
Specifiche di prodotto
Brand Winstar
Size 4.6"
Risoluzione 800x320
Area Attiva (mm) 108.00x43.20
Colore Full Color
Interfaccia Display RGB
Display IC No
Angolo Visione TN
Frame No
Touch Panel No touch
Temperatura O. (°C) -20~70
Connessione Display FPC for ZIF Connector
Nr. Pin 40
Passo Pin 0.5mm
Preferred - Not Preferred Not Preferred
Download
Specifiche di prodotto
Brand Winstar
Size 4.6"
Risoluzione 800x320
Area Attiva (mm) 108.00x43.20
Colore Full Color
Interfaccia Display RGB
Display IC No
Angolo Visione TN
Frame No
Touch Panel No touch
Temperatura O. (°C) -20~70
Connessione Display FPC for ZIF Connector
Nr. Pin 40
Passo Pin 0.5mm
Preferred - Not Preferred Not Preferred
