    WF39-480128FD#0PW0-FC

    TFT 3.9" 480x128, Bar Type, Interface RGB, 500cd/m², Wide View Angle (IPS), Super Extended Temperature
    Brand: Winstar
    Cod.: WF39-480128FD#0PW0-FC

    Kit accessori

    Prezzi per quantità
    Quantità
    1+
    5+
    10+
    Prezzo
    €24,10
    €21,70
    €20,40

    Per quantità maggiori di 24pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

    €24,10 IVA esclusa
    i h

    DESCRIPTION

    TFT 3.9” is a color active matrix a-Si LCD Q-Panel, using a-Si (amorphous silicon) TFTs (Thin Film Transistors) as an active switching devices. The Q-Panel has a 3.9 inch diagonally measured active area with 480×128 resolutions (480 horizontal by 128 vertical pixel array). Each pixel is divided into RED, GREEN, BLUE dots which are arranged in vertical stripe and this Q-Panel can display 16.7 M colors.

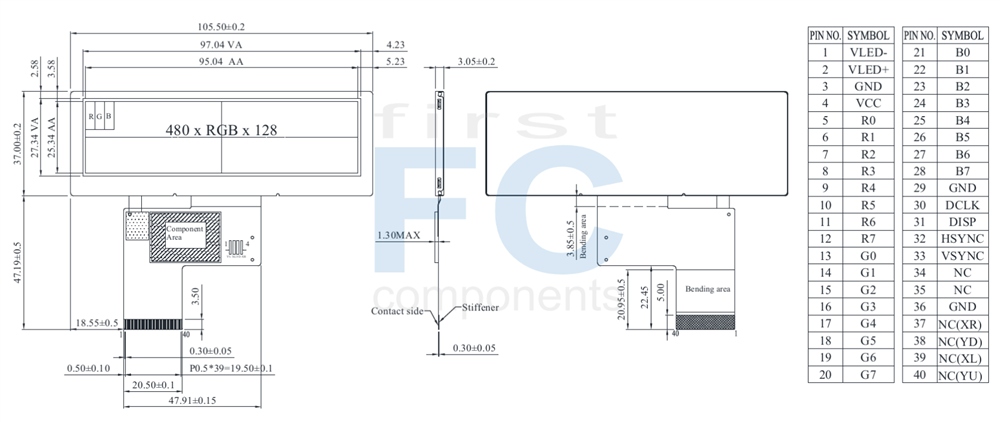

    DRAWING

    SPECIFICATIONS

    Interface

    LCM PIN Definition

    PinSymbolFunction
    1 VLED- Power for LED backlight cathode
    2 VLED+ Power for LED backlight anode
    3 GND Power ground
    4 VCC Power voltage
    5 R0 Red data
    6 R1 Red data
    7 R2 Red data
    8 R3 Red data
    9 R4 Red data
    10 R5 Red data
    11 R6 Red data
    12 R7 Red data
    13 G0 Green data
    14 G1 Green data
    15 G2 Green data
    16 G3 Green data
    17 G4 Green data
    18 G5 Green data
    19 G6 Green data
    20 G7 Green data
    21 B0 Blue data
    22 B1 Blue data
    23 B2 Blue data
    24 B3 Blue data
    25 B4 Blue data
    26 B5 Blue data
    27 B6 Blue data
    28 B7 Blue data
    29 GND Power ground
    30 DCLK Pixel clock input pin
    31 DISP DISP sets the display mode.
    DISPFunction Description
    L Standby mode
    H Normal display mode
    32 HSYNC Horizontal sync signal, default is negative polarity.
    33 VSYNC Vertical sync signal, default is negative polarity.
    34 NC No connection
    35 NC No connection
    36 GND Power ground
    37 NC(XR) No connection
    38 NC(YD) No connection
    39 NC(XL) No connection
    40 NC(YU) No connection



    General Specifications

    ItemDimensionUnit
    Size 3.9 inch
    Dot Matrix 480 × RGB × 128 (TFT) dots
    Module dimension 105.5(W) × 37.0(H) × 3.05(D) mm
    Active area 95.04 × 25.34 mm
    Pixel Pitch 0.198 × 0.198 mm
    LCD type TFT, Normally Black, Transmissive
    Viewing Angle 85/85/85/85
    Aspect Ratio Bar Type
    TFT Driver IC ST7282A or equivalent
    Interface 24-bit RGB
    Backlight Type LED ,Normally White
    With/Without TP Without TP
    Surface Anti-Glare



    Absolute Maximum Ratings

    ItemSymbolMinTypMaxUnit
    Operating Temperature TOP -30 － +80 ℃
    Storage Temperature TST -40 － +90 ℃



    Electrical Characteristics

    Operating conditions

    ItemSymbolMinTypMaxUnit
    Supply Voltage For LCM VCC 3.0 3.3 3.6 V
    Supply Current For LCM ICC - 14.0 25.0 mA



    Specifiche di prodotto
    Size 3.9"
    Resolution 480x128
    Active Area (mm) 95.04x25.34
    Color Full Color
    Display Interface RGB
    Display IC No
    View Angle IPS
    Frame No
    Touch Panel No touch
    O. Temperature (°C) -30~80
    Data Connection FPC for ZIF Connector
    Pin Nr. 40
    Pin Pitch 0.5mm
    Preferred - Not Preferred Preferred
    *
    *
    *
    *
