    WFN0570DA2#0PW1-FC

    TFT 5.7" 640x480 LCD Panel, Interface RGB, 400cd/m², Wide View Angle (IPS), Super Extended Temperature, Resistive touch panel
    Brand: Winstar
    Cod.: WFN0570DA2#0PW1-FC

    Kit accessori

    Prezzi per quantità
    Quantità
    1+
    5+
    10+
    Prezzo
    €69,20
    €62,30
    €58,50

    Per quantità maggiori di 24pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

    €69,20 IVA esclusa
    i h

    DESCRIPTION

    WFN0570DA2#0PW1-FC is a 5.7-inch wide temperature IPS TFT LCD display with a resistive touch panel (RTP). It features a 640x480 resolution, a 4:3 aspect ratio, and a typical brightness of 400 cd/m². The display surface features an anti-glare treatment.

    The IPS panel provides wide viewing angles of 89/89/89/89 degrees. The module measures 124.7 x 100.0 x 7.41 mm, with an active area of 115.2 x 86.4 mm.

    WFN0570DA2#0PW1-FC is equipped with a JD9168S TFT driver IC or equivalent and supports an 18-bit RGB interface with SYNC+DE mode. The TFT operates from a typical 3.15V supply.

    With an operating temperature range of -30°C to +80°C, this 5.7-inch TFT display is suitable for industrial HMI, control equipment, instrumentation, and other embedded applications requiring resistive touch input and wide temperature operation.

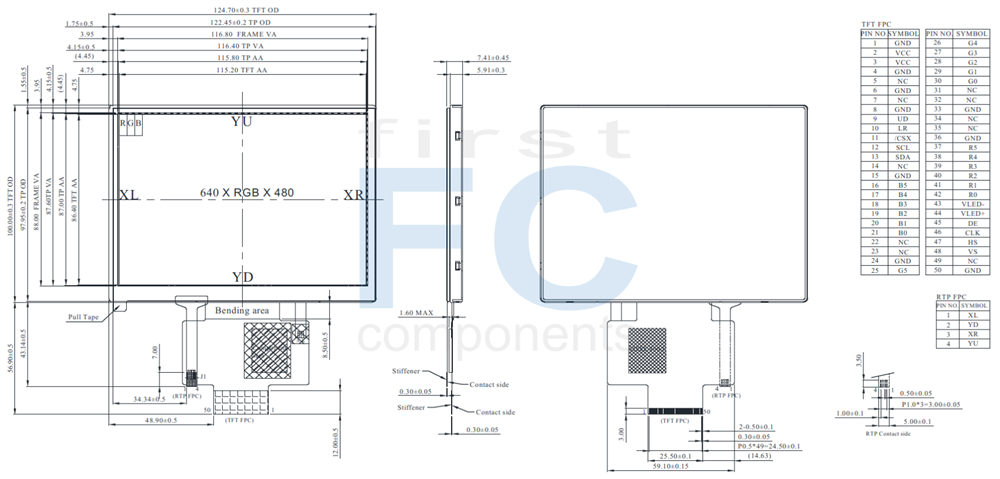

    DRAWING

    SPECIFICATIONS

    General Specifications

    ItemDimensionUnit
    Size 5.7 inch
    Dot Matrix 640 x RGB x 480(TFT) dots
    Module dimension 124.7 x 100 x 7.41 mm
    Active area 115.2 x 86.4 mm
    Pixel pitch 0.18 x 0.18 mm
    LCD type TFT, Normally Black ,Transmissive
    View Angle 89/89/89/89
    TFT Driver IC JD9168S or Equivalent
    TFT Interface RGB 18 bits SYNC+DE mode
    Aspect Ratio 4:3
    Backlight Type LED, Normally White
    Touch Panel Resistive Touch Panel (RTP)
    Surface Anti-Glare



    Absolute Maximum Ratings

    ItemSymbolMinTypMaxUnit
    Operating Temperature TOP -30 － +80 ℃
    Storage Temperature TST -30 － +80 ℃



    Electrical Characteristics

    Operating conditions

    ParameterSymbolConditionMinTypMaxUnit
    Supply Voltage VCC Ta=25⁰C 3.0 3.15 3.3 V
    Input voltage H VIH VCC=3.0V 0.7VCC - VCC
    L VIL VCC=3.0V 0 - 0.3VCC mW
    Power supply Current ICC VCC=3.0V - 50 75 mA

    LED driving conditions

    ParameterSymbolMinTypMaxUnit
    LED current ILED - 80 - mA
    LED voltage VLED+ 15.6 18.0 19.2 V
    LED Life Time - 50,000 - - Hr



    Interface Pin Function

    LCM PIN Definition

    PinSymbolI/OFunction
    1 GND P Ground.
    2 VCC P Power supply for TFT
    3 VCC P Power supply for TFT
    4 GND P Ground.
    5 NC - No connection
    6 GND P Ground.
    7 NC - No connection
    8 GND P Ground.
    9 UD I Up/down selection
    10 LR I Left /right selection
    11 /CSX I Chip select pin. 0: Chip can be accessed; 1: Chip cannot be accessed.
    If this pin is not used, please connect it to VCC.
    12 SCL I Serial clock input in SPI interface .If not use, let it open or VCC or GND.
    13 SDA I Serial data input / output pin in SPI interface operation. If not use, let it open.
    14 NC - No connection
    15 GND P Ground.
    16 B5 I Blue Data bus
    17 B4 I Blue Data bus
    18 B3 I Blue Data bus
    19 B2 I Blue Data bus
    20 B1 I Blue Data bus
    21 B0 I Blue Data bus
    22 NC - No connection
    23 NC - No connection
    24 GND P Ground.
    25 G5 I Green Data bit
    26 G4 I Green Data bit
    27 G3 I Green Data bit
    28 G2 I Green Data bit
    29 G1 I Green Data bit
    30 G0 I Green Data bit
    31 NC - No connection
    32 NC - No connection
    33 GND P Ground.
    34 NC - No connection
    35 NC - No connection
    36 GND P Ground.
    37 R5 I Red Data bit
    38 R4 I Red Data bit
    39 R3 I Red Data bit
    40 R2 I Red Data bit
    41 R1 I Red Data bit
    42 R0 I Red Data bit
    43 VLED- P Power supply for LED cathode
    44 VLED+ P Power supply for LED anode
    45 DE I Data enable input in RGB interface.
    46 CLK I Pixel clock input in RGB interface.
    47 HS I Horizontal sync input in RGB interface.
    48 VS I Vertical sync input in RGB interface
    49 NC - No connection
    50 GND P Ground.
    Specifiche di prodotto
    Size 5.7"
    Resolution 640x480
    Active Area (mm) 115.20x86.40
    Color Full Color
    Display Interface RGB
    Display IC No
    View Angle IPS
    Frame No
    Touch Panel Resistive
    O. Temperature (°C) -30~80
    Data Connection FPC for ZIF Connector
    Pin Nr. 50
    Pin Pitch 0.5mm
    Preferred - Not Preferred Preferred
    *
    *
    *
    *
