WF35-320240QD#0S5-FC

TFT 3.5" 320x240, LCD + IC Controller, Interface MCU (Parallel) IC SSD1963 (8/16bit), High brightness 770cd/m², Frame, Resistive touch panel

RECOMMENDED ONLY AS SPARE PARTS

For new projects please contact us at [email protected].



DESCRIPTION

3.5'' high brightness TFT model with Resistive Touch Screen TFT. It supports 8 bit or 16 bit option and pre-defined pin no. 33 ~ 36 as backlight supply; therefore, the customers no need to design extra backlight circuit. The TFT Q Series Modules provide the following innovative advantages to offer outstanding performance for colorful displays:

  • Q Series integrated a 36 pin-out connector on SSD1963 controller board and all connectors are the same direction.
  • Q Series modules are available in 8 bit and 16 bit parallel interface options.
  • The pin no. 33 ~ 36 already pre-defined as backlight supply.
  • Built in backlight driver IC, Q series TFT displays can be drive by 5.0V (3.5" and 4.3"also support 3.3V). The customers do not have to change the backlight driver circuits while change the TFT module sizes.
  • The 5.7", 7.0", 8.0" and 10.2" Q Series are allowed to design Sleep Mode to close BIAS(VGH, VGL, AVDD) low power consumption mode.
  • Resistive Touch Screen options are available for all Q Series TFT display, and 4-Line signal (X1, Y1, X2, Y2) can be input from 36pin connector.

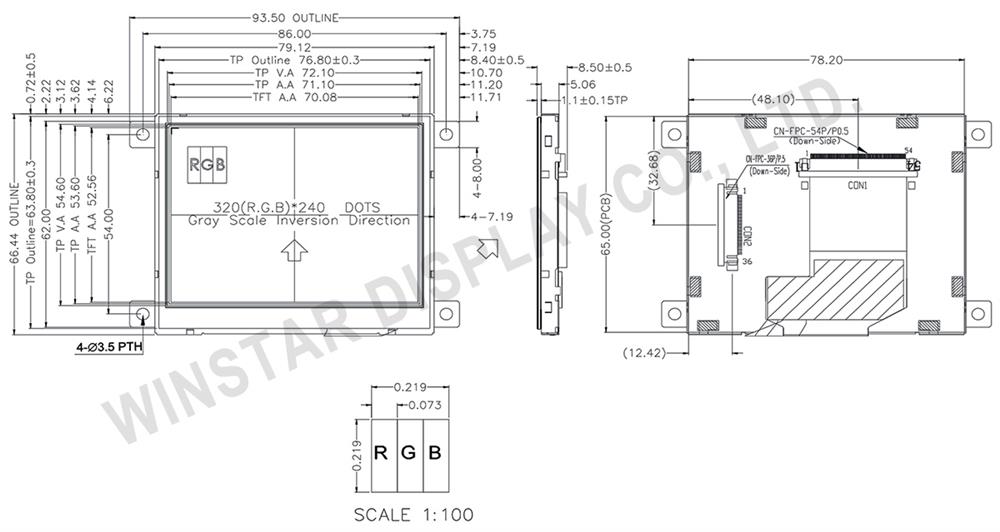

DRAWING

Resistive Touch Screen TFT 3.5, LCD Controller Board - WF35QTIBCDBT0

INTERFACE

PinSymbolFunction
1 GND System ground pin of the IC. Connect to system ground.
2 VDD Power Supply : +3.3V
3 BL_E Backlight control signal , H: On \ L: Off
4 D/C Data/Command select
5 WR Write strobe signal
6 RD Read strobe signal
7~14 DB0~DB7 Data bus
15~22 DB8~DB15 Data bus (When select 8bits Mode, this pin is NC)
23~24 NC No connect
25 CS Chip select
26 RST Hardware reset
27~28 NC No connect
29 XL Left electrode
30 YU Top electrode
31 XR Right electrode
32 YD Down electrode
33~34 VLED- VLED- for B/L LED inverter (GND)
35~36 VLED+ VLED+ for B/L LED inverter(+3.3V)
SKU: WF35-320240QD#0S5-FC
Brand: Winstar
Disponibile: No
Kit Accessori
Prezzi per quantità
Quantità
1+
5+
10+
Prezzo
€52,30
€43,60
€36,90

Per quantita’ maggiori di 25pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

€52,30 IVA esclusa

RECOMMENDED ONLY AS SPARE PARTS

For new projects please contact us at [email protected].



DESCRIPTION

3.5'' high brightness TFT model with Resistive Touch Screen TFT. It supports 8 bit or 16 bit option and pre-defined pin no. 33 ~ 36 as backlight supply; therefore, the customers no need to design extra backlight circuit. The TFT Q Series Modules provide the following innovative advantages to offer outstanding performance for colorful displays:

  • Q Series integrated a 36 pin-out connector on SSD1963 controller board and all connectors are the same direction.
  • Q Series modules are available in 8 bit and 16 bit parallel interface options.
  • The pin no. 33 ~ 36 already pre-defined as backlight supply.
  • Built in backlight driver IC, Q series TFT displays can be drive by 5.0V (3.5" and 4.3"also support 3.3V). The customers do not have to change the backlight driver circuits while change the TFT module sizes.
  • The 5.7", 7.0", 8.0" and 10.2" Q Series are allowed to design Sleep Mode to close BIAS(VGH, VGL, AVDD) low power consumption mode.
  • Resistive Touch Screen options are available for all Q Series TFT display, and 4-Line signal (X1, Y1, X2, Y2) can be input from 36pin connector.

DRAWING

Resistive Touch Screen TFT 3.5, LCD Controller Board - WF35QTIBCDBT0

INTERFACE

PinSymbolFunction
1 GND System ground pin of the IC. Connect to system ground.
2 VDD Power Supply : +3.3V
3 BL_E Backlight control signal , H: On \ L: Off
4 D/C Data/Command select
5 WR Write strobe signal
6 RD Read strobe signal
7~14 DB0~DB7 Data bus
15~22 DB8~DB15 Data bus (When select 8bits Mode, this pin is NC)
23~24 NC No connect
25 CS Chip select
26 RST Hardware reset
27~28 NC No connect
29 XL Left electrode
30 YU Top electrode
31 XR Right electrode
32 YD Down electrode
33~34 VLED- VLED- for B/L LED inverter (GND)
35~36 VLED+ VLED+ for B/L LED inverter(+3.3V)
Date Notice Link/Description
2024/08/26 EOL End production of Innolux TN Panel for WF35-320240L/M/P/Q/Y Families



For more details, please contact us @ [email protected]

Specifiche di prodotto
Brand Winstar
Size 3.5"
Risoluzione 320x240
Area Attiva (mm) 70.08x52.56
Colore Full Color
Interfaccia Display MCU (Parallel)
Display IC SSD1963
Angolo Visione TN
Sunlight Readable High 601~1200cd/m²
Frame Yes
Touch Panel Resistive
Temperatura O. (°C) -20~70
Connessione Display ZIF Connector
Nr. Pin 36
Passo Pin 0.5mm
Preferred - Not Preferred Not Preferred
