WF50-800480FL#BPW3-FC

Immagine di WF50-800480FL#BPW3-FC Immagine di WF50-800480FL#BPW3-FC
TFT 5" 800x480 LCD Panel, Interface LVDS, 400cd/m², Wide view angle (IPS), Super extended Temperature, Capacitive touch panel I2C interface (GG, GT911 IC)

DESCRIPTION

WF50-800480FL#BPW3-FC is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uese amorphous silicon TFT as a swtching device. This TFT LCD has a 5.0 inch diagonally measured active display area with 800x480 (800 horizontal by 480 vertical pixel) resolution. This module is built in with ST7262 driver IC and supports LVDS interface. Contrast ratio 1,000:1 (typical value) and brightness 400 nits (typical value).

This IPS TFT has a wider viewing angle than TN TFT, the view angle is Left:80 / Right:80 / Up:80 / Down:80 degree (typical value). The power voltage is from 3.1 to 3.6V, typical value 3.3V, aspect ratio 5:3, normally black, transmissive LCD type, glare surface glass. Operating temperatures from -30℃ to +80℃ and storage temperatures from -30℃ to +80℃.

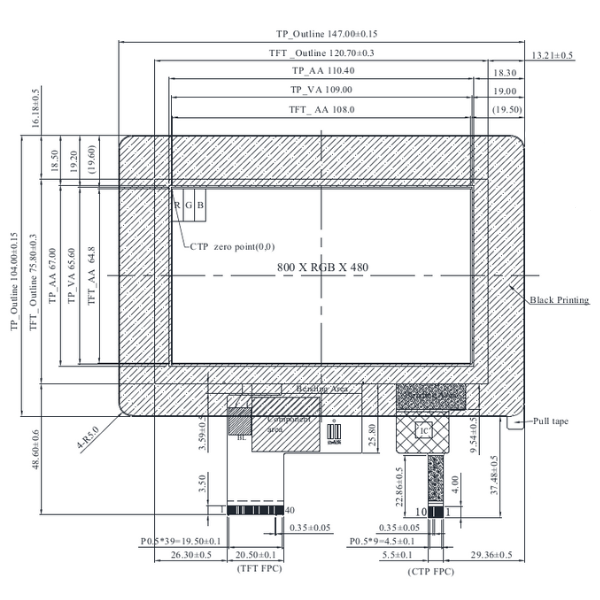

DRAWING



SPECIFICATIONS

Interface

PinSymbolFunction
1 NC No connection
2 VCC Power voltage
3 VCCI Power supply for digital I/O pins.
4 NC No connection
5 GRB Global reset pin. When GRB is “L”, internal initialization procedure is executed
6 DISP Display on/off
7 GND Power Ground
8 RXIN0- LVDS input lane: RX0-/ RX0+ (RX0N/RX0P)
9 RXIN0+
10 GND Power Ground
11 RXIN1- LVDS input lane: RX1-/ RX1+ (RX1N/RX1P)
12 RXIN1+
13 GND Power Ground
14 RXIN2- LVDS input lane: RX2-/ RX2+ (RX2N/RX2P)
15 RXIN2+
16 GND Power Ground
17 RXCLKIN- LVDS input lane, detail pin define please refer to LVDS
Input Pin Mapping Table. (DCLKN/DCLKP)
18 RXCLKIN+
19 GND Power Ground
20 RXIN3- LVDS input lane: RX3-/ RX3+ (RX3N/RX3P)
21 RXIN3+
22 GND Power Ground
23-24 NC No connection
25 FMT

FMT sets LVDS data format.

L: VESA Mode (Default)

H: JEIDA Mode
26-27 NC No connection
28 SELB

SELB LVDS 3-/4- lane.

L: 3-lane

H: 4-lane (deafult)
29 NC No connection
30 GND Power Ground
31-32 VLED- Power for LED backlight (Cathode)
33 L/R

Horizontal scand direction control pin.

L: From right to left.

H: From left to right (Default)
34 U/D

Vertical scan direction control pin.

L: From down to up.

H: From up to down. (Default)
35 NC No connection
36-37 GND Power Ground
38 NC No connection
39-40 VLED+ Power for LED backlight (Anode)



General Specifications

ItemDimensionUnit
Size 5.0 inch
Dot Matrix 800× 3(RGB) × 480 dots
Module dimension 147.0(W) ×104.0(H) ×4.88 mm
Active area 108(W) ×64.8 (H) mm mm
Dot pitch 0.135(W) ×0.135(H) mm mm
LCD type TFT, Normally Black, Transmissive
View Direction 80/80/80/80
Aspect Ratio 5:3
Driver　IC     ST7262 or equivalent
Interface LVDS
Backlight Type LED ,Normally White
CTP IC GT911 or equivalent
CTP Interface I2C
CTP FW Version 65
CTP Resolution 800*480

With/Without TP

 With CTP
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -30 － +80 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

Typical Operation Conditions

ItemSymbolValuesUnit
Min.Typ.Max.
Power voltage VCC 3.1 3.3 3.6 V
Power voltage VCCI 3.1 3.3 3.6 V
Current for Driver(Black) ICC - 67.6 102 mA
Supply CTP VDDT 2.8 - 3.3 V
ICTP - 15 22.5 mA
SKU: WF50-800480FL#BPW3-FC
Brand: Winstar
Disponibile: No
Si tratta dela prima recensione per questo prodotto
Kit Accessori
Prezzi per quantità
Quantità
1+
5+
10+
Prezzo
€42,80
€35,70
€30,90

Per quantita’ maggiori di 25pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

€42,80 IVA esclusa

DESCRIPTION

WF50-800480FL#BPW3-FC is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uese amorphous silicon TFT as a swtching device. This TFT LCD has a 5.0 inch diagonally measured active display area with 800x480 (800 horizontal by 480 vertical pixel) resolution. This module is built in with ST7262 driver IC and supports LVDS interface. Contrast ratio 1,000:1 (typical value) and brightness 400 nits (typical value).

This IPS TFT has a wider viewing angle than TN TFT, the view angle is Left:80 / Right:80 / Up:80 / Down:80 degree (typical value). The power voltage is from 3.1 to 3.6V, typical value 3.3V, aspect ratio 5:3, normally black, transmissive LCD type, glare surface glass. Operating temperatures from -30℃ to +80℃ and storage temperatures from -30℃ to +80℃.



DRAWING



SPECIFICATIONS

Interface

PinSymbolFunction
1 NC No connection
2 VCC Power voltage
3 VCCI Power supply for digital I/O pins.
4 NC No connection
5 GRB Global reset pin. When GRB is “L”, internal initialization procedure is executed
6 DISP Display on/off
7 GND Power Ground
8 RXIN0- LVDS input lane: RX0-/ RX0+ (RX0N/RX0P)
9 RXIN0+
10 GND Power Ground
11 RXIN1- LVDS input lane: RX1-/ RX1+ (RX1N/RX1P)
12 RXIN1+
13 GND Power Ground
14 RXIN2- LVDS input lane: RX2-/ RX2+ (RX2N/RX2P)
15 RXIN2+
16 GND Power Ground
17 RXCLKIN- LVDS input lane, detail pin define please refer to LVDS
Input Pin Mapping Table. (DCLKN/DCLKP)
18 RXCLKIN+
19 GND Power Ground
20 RXIN3- LVDS input lane: RX3-/ RX3+ (RX3N/RX3P)
21 RXIN3+
22 GND Power Ground
23-24 NC No connection
25 FMT

FMT sets LVDS data format.

L: VESA Mode (Default)

H: JEIDA Mode
26-27 NC No connection
28 SELB

SELB LVDS 3-/4- lane.

L: 3-lane

H: 4-lane (deafult)
29 NC No connection
30 GND Power Ground
31-32 VLED- Power for LED backlight (Cathode)
33 L/R

Horizontal scand direction control pin.

L: From right to left.

H: From left to right (Default)
34 U/D

Vertical scan direction control pin.

L: From down to up.

H: From up to down. (Default)
35 NC No connection
36-37 GND Power Ground
38 NC No connection
39-40 VLED+ Power for LED backlight (Anode)



General Specifications

ItemDimensionUnit
Size 5.0 inch
Dot Matrix 800× 3(RGB) × 480 dots
Module dimension 147.0(W) ×104.0(H) ×4.88 mm
Active area 108(W) ×64.8 (H) mm mm
Dot pitch 0.135(W) ×0.135(H) mm mm
LCD type TFT, Normally Black, Transmissive
View Direction 80/80/80/80
Aspect Ratio 5:3
Driver　IC     ST7262 or equivalent
Interface LVDS
Backlight Type LED ,Normally White
CTP IC GT911 or equivalent
CTP Interface I2C
CTP FW Version 65
CTP Resolution 800*480

With/Without TP

 With CTP
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -30 － +80 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

Typical Operation Conditions

ItemSymbolValuesUnit
Min.Typ.Max.
Power voltage VCC 3.1 3.3 3.6 V
Power voltage VCCI 3.1 3.3 3.6 V
Current for Driver(Black) ICC - 67.6 102 mA
Supply CTP VDDT 2.8 - 3.3 V
ICTP - 15 22.5 mA
Specifiche di prodotto
Brand Winstar
Size 5"
Risoluzione 800x480
Area Attiva (mm) 108.00x64.80
Colore Full Color
Interfaccia Display LVDS
Display IC No
Angolo Visione IPS
Frame No
Touch Panel Capacitive
Temperatura O. (°C) -30~80
Connessione Display FPC for ZIF Connector
Nr. Pin 40
Passo Pin 0.5mm
IC Controller Touch Panel GT911
Preferred - Not Preferred Preferred
Download
Specifiche di prodotto
Brand Winstar
Size 5"
Risoluzione 800x480
Area Attiva (mm) 108.00x64.80
Colore Full Color
Interfaccia Display LVDS
Display IC No
Angolo Visione IPS
Frame No
Touch Panel Capacitive
Temperatura O. (°C) -30~80
Connessione Display FPC for ZIF Connector
Nr. Pin 40
Passo Pin 0.5mm
IC Controller Touch Panel GT911
Preferred - Not Preferred Preferred
Prodotti correlati

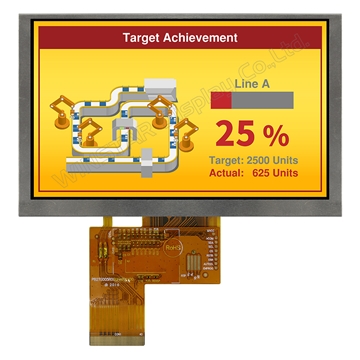

Immagine di WF50-800480FL#0PW0-FC
