    WF101-1280800LL#BSP0-FC

    TFT 10.1" 1280x800 LCD Panel, Interface LVDS, Super High Brightness 1800cd/m², Wide View Angle (IPS), No touch
    Brand: Winstar
    Cod.: WF101-1280800LL#BSP0-FC

    Kit accessori

    Prezzi per quantità
    Quantità
    1+
    5+
    10+
    Prezzo
    €88,50
    €79,70
    €74,90

    Per quantità maggiori di 24pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

    Disponibilità: Disponibile
    €88,50 IVA esclusa
    i h

    DESCRIPTION

    WF101-1280800LL#BSP0-FC is a 10.1-inch high-brightness IPS TFT-LCD display module that supports LVDS interface, equipped with EK79202B1 driver IC. It features a resolution of 1280 x 800 dots and a 16:10 aspect ratio, providing clear and vivid visual images. With a brightness of 1800 cd/m² and a high contrast ratio of 1000:1, it ensures optimal viewing experience even in bright environments.

    This TFT module adopts an IPS panel, presenting wide viewing angles of 80 degrees from all directions (up, down, left, and right), ensuring better viewing angles, excellent color performance, and minimal color distortion, creating a comfortable viewing experience. The 10.1-inch diagonal size, coupled with clear visual effects, is ideal for various applications, including industrial control equipment, testing equipment, medical devices, vending machines, and ATMs.

    WF101-1280800LL#BSP0-FC features an anti-glare surface that effectively reduces light reflection, enhances visibility in bright environments, and minimizes or eliminates glare from light sources. This can reduce eye fatigue and enhance display performance, ensuring clear visibility of content.

    This TFT module has a module size of 230.56 x 155.01 x 6.4 mm, with an effective area of 216.96 x 135.6 mm. It can operate within a temperature range of -20°C to +70°C and maintain stability within a storage temperature range of -30°C to +80°C, reflecting robust design and reliability. The supply voltage range is from 3.0V to 3.5V, with a typical value of 3.3V.



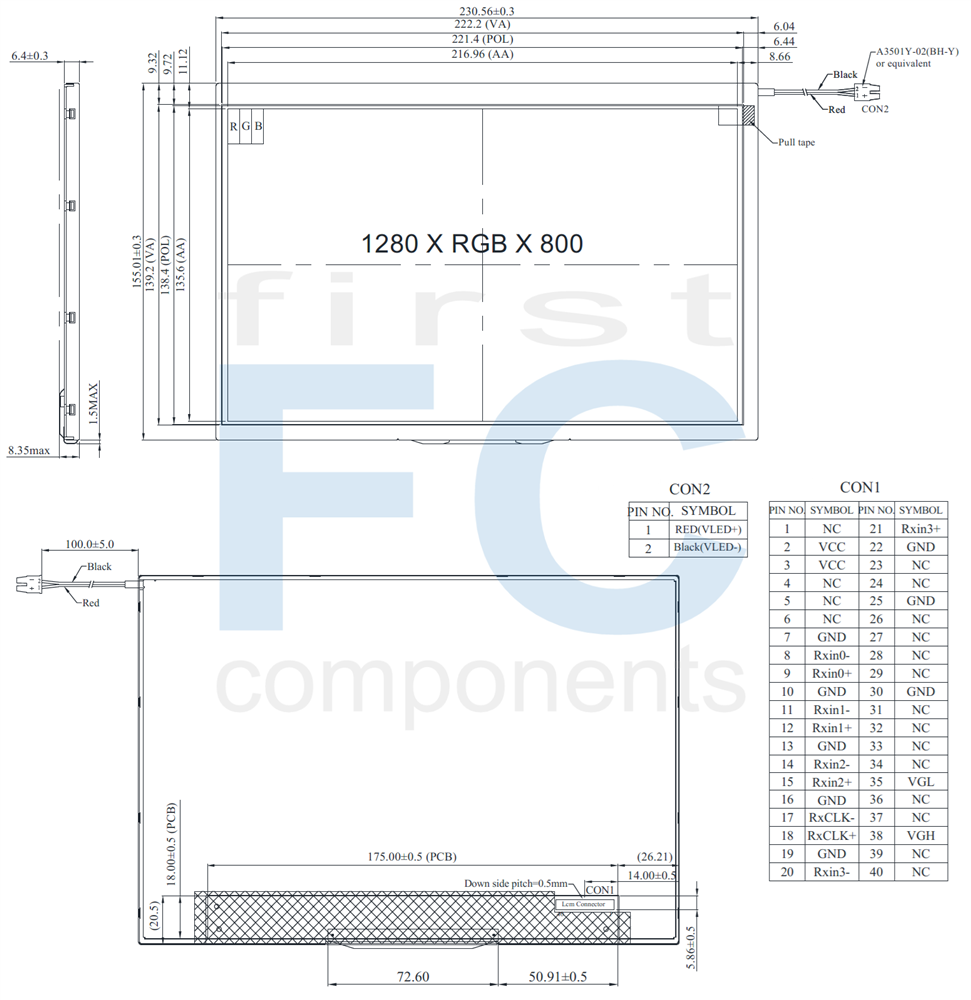

    DRAWING

    SPECIFICATIONS

    General Specifications

    ItemDimensionUnit
    Size 10.1 inch
    Dot Matrix 1280 x 3(RGB) x 800 dots
    Module dimension 230.56 x 155.01 x 6.4 mm
    Active area 216.96 x 135.6 mm
    Pixel pitch 0.1695 x 0.1695 mm
    LCD type TFT, Normally Black ,Transmissive
    View Angle 80/80/80/80(IPS)
    Pixel Arrangement R.G.B. Vertical Stripe
    Driver IC EK79202B1 or Equivalent
    Backlight Type LED,Normally White
    Aspect Ratio 16:10
    Interface LVDS
    Touch Panel Without Touch Panel
    Surface Anti-Glare




    Absolute Maximum Ratings

    ItemSymbolMinTypMaxUnit
    Operating Temperature TOP -20 - +70 ℃
    Storage Temperature TST -30 - +80 ℃



    Electrical Characteristics

    Operating conditions

    ItemSymbolMinTypMaxUnit
    Power voltage VCC 3.0 3.3 3.5 V
    VGH 17.5 18.0 18.5 V
    VGL -11.5 -10.5 -10.0 V
    VSP - 5.5 - V
    VSN - -5.5 - V


    Current Consumption

    ItemSymbolMinTypMaxUnit
    Current for Driver IGH - 7.7 - mA
    IGL - 7.7 - mA
    IVCC - 85 130 mA


    Backlight Characteristics

    ItemSymbolMinTypMaxUnit
    Supply voltage of white LED backlight VL 13.5 15.0 16.5 V
    Current for LED backlight IL - 630 - mA
    LED life time - - 50,000 - Hr



    Interface Pin Function

    Interface Connector

    Pin No.SymbolI/OFunction
    1 NC - No connection
    2 VCC P Power Supply
    3 VCC P Power Supply
    4 NC - No connection
    5 NC - No connection
    6 NC - No connection
    7 GND P Ground
    8 Rxin0- I -LVDS Differential Data Input
    9 Rxin0+ I +LVDS Differential Data Input
    10 GND P Ground
    11 Rxin1- I -LVDS Differential Data Input
    12 Rxin1+ I +LVDS Differential Data Input
    13 GND P Ground
    14 Rxin2- I -LVDS Differential Data Input
    15 Rxin2+ I +LVDS Differential Data Input
    16 GND P Ground
    17 RxCLK- I -LVDS Differential Clock Input
    18 RxCLK+ I +LVDS Differential Clock Input
    19 GND P Ground
    20 Rxin3- I -LVDS Differential Data Input
    21 Rxin3+ I +LVDS Differential Data Input
    22 GND P Ground
    23 NC - No connection
    24 NC - No connection
    25 GND P Ground
    26 NC - No connection
    27 NC - No connection
    28 NC - No connection
    29 NC - No connection
    30 GND P Ground
    31 NC - No connection
    32 NC - No connection
    33 NC - No connection
    34 NC - No connection
    35 VGL P Gate OFF Voltage
    36 NC - No connection
    37 NC - No connection
    38 VGH P Gate ON Voltage
    39 NC - No connection
    40 NC - No connection

    I: input, O: output, P: Power


    Backlight Driving Part

    Pin No.SymbolFunction
    1 VLED+ Red, LED_ Anode
    2 VLED- Black, LED_ Cathode
    Specifiche di prodotto
    Size 10.1"
    Resolution 1280x800
    Active Area (mm) 216.96x135.60
    Color Full Color
    Display Interface LVDS
    Display IC No
    View Angle IPS
    Sunlight Readable Super High >1200cd/m²
    Frame No
    Touch Panel No touch
    O. Temperature (°C) -20~70
    Data Connection ZIF Connector
    Pin Nr. 40
    Pin Pitch 0.5mm
    Preferred - Not Preferred Preferred
    *
    *
    *
    *
