    WF0154-240240AS#0SP0-FC

    TFT 1.54" 240x240, Full Color, Interface MCU (SPI) IC ST7789T3-G4-1, High Brightness 850 cd/m2, Wide View Angle (IPS), No touch
    Brand: Winstar
    Cod.: WF0154-240240AS#0SP0-FC
    Prezzi per quantità
    Quantità
    1+
    5+
    10+
    25+
    Prezzo
    €9,50
    €8,50
    €8,00
    €7,80

    Per quantità maggiori di 49pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

    Disponibilità: Disponibile
    €9,50 IVA esclusa
    i h

    DESCRIPTION

    WF0154-240240AS#0SP0-FC is a 1.54-inch square IPS TFT LCD with a resolution of 240x240 pixels and an IPS panel. This square IPS TFT has the advantages of higher contrast, a full black background when the display or pixel is off, wider viewing angles of Left:80 / Right:80 / Up:80 / Down:80 degrees (typical), a high brightness of 850 nits (typical value), 900:1 contrast ratio (typical value), an anti-glare glass surface.

    This 1.54" display is built-in with ST7789T3-G4-1 driver IC that can communicate via SPI interfaces. The supply voltage of the analog is from 2.4V to 3.3V, with a typical value of 2.8V. It can operate at the temperature range from -10℃ to +60℃, and its storage temperature range is from -20℃ to +70℃. This WINSTAR high-brightness 1.54-inch LCD is suited for wireless microphone system, coffee scale, personal, and pulse oximeters.

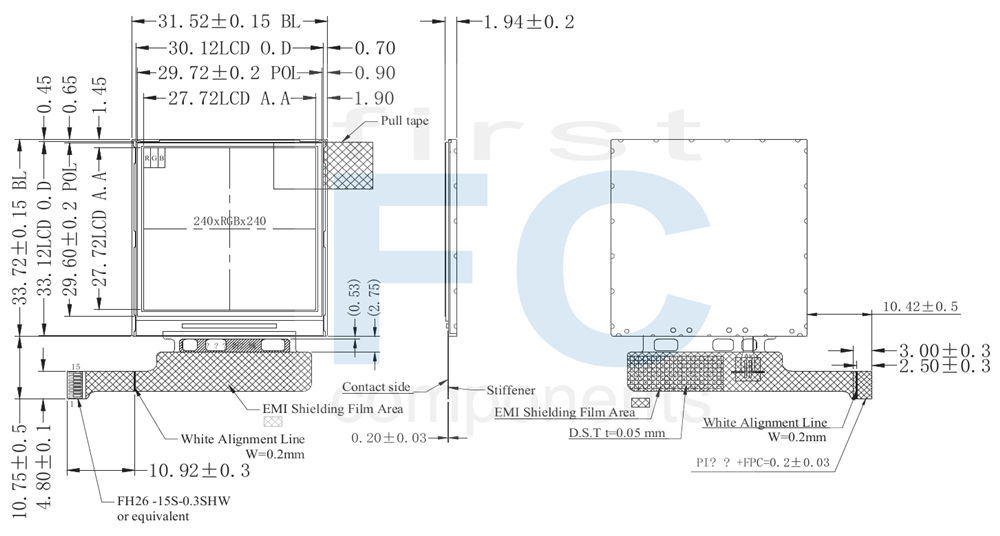

    DRAWING



    SPECIFICATIONS

    Interface

    LCM PIN Definition

    Pin No.SymbolFunction
    1 GND Ground.
    2 IOVCC Power Supply for I/O System
    3 CS Chip selection pin
    4 RESET This signal will reset the device
    5 RS Display data/command selection pin in 4-line serial interface
    6 GND Ground.
    7 SCL This pin is used to be serial interface clock
    8 SDA SPI interface input/output pin
    9 GND Ground.
    10 VDD Power Supply for Analog
    11 FMARK Tearing effect signal is used to synchronize MCU to frame
    memory writing.
    12 VLED- Power Supply For LED Backlight Cathode Input
    13 VLED- Power Supply For LED Backlight Cathode Input.
    14 VLED+ Power Supply For LED Backlight Anode Input.
    15 VLED+ Power Supply For LED Backlight Anode Input.



    General Specifications

    ItemDimensionUnit
    Size 1.54 inch
    Dot Matrix 240 × RGB × 240 dots
    Module dimension 31.52 × 33.72 × 1.94 mm
    Active area 27.72 × 27.72 mm
    Pixel pitch 0.1155 × 0.1155 mm
    LCD type TFT, Normally Black, Transmissive
    Viewing Angle 80/80/80/80
    Backlight Type LED, Normally White
    Drive IC ST7789T3-G4-1 or Equivalent
    TFT Interface SPI
    Touch Panel Without Touch Panel
    Surface Anti-Glare



    Absolute Maximum Ratings

    ItemSymbolMinTypMaxUnit
    Operating Temperature TOP -10 - +60 ℃
    Storage Temperature TST -20 - +70 ℃



    Electrical Characteristics

    ParameterSymbolValueUnit
    Min.Typ.Max.
    Analog Supply Voltage VDD 2.4 2.8 3.3 V
    Power Supply for I/O System IOVCC 1.65 1.8 3.3 V
    Input High Voltage VIH 0.7 IOVCC - IOVCC V
    Input Low Voltage VIL GND - 0.3 IOVCC mA
    Output High Voltage VoH 0.8 IOVCC - IOVCC mA
    Output Low Voltage VoL GND - 0.2 IOVCC W
    (Panel+LSI) Power Consumption Black Mode - 6.0 - mA
    Sleeping Mode - 0.015 - mA


    Specifiche di prodotto
    Size 1.54"
    Resolution 240x240
    Active Area (mm) 27.72x27.72
    Color Full Color
    Display Interface MCU (SPI)
    Display IC ST7789T3-G4-1
    View Angle IPS
    Frame No
    Touch Panel No touch
    O. Temperature (°C) -10~60
    Data Connection FPC for ZIF Connector
    Pin Nr. 15
    Pin Pitch 0.3mm
    Preferred - Not Preferred Preferred
    *
    *
    *
    *
