    WEO12864W#JP3N00002-FC

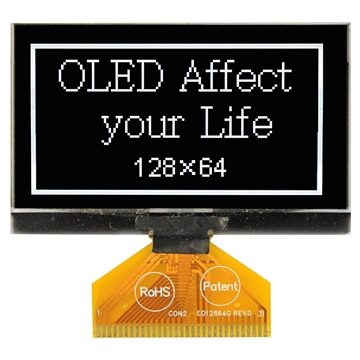

    PMOLED 2.42" Graphic 128x64, White color, COG + PCB, 3V, Interface SPI, Frame, Glare
    Brand: Winstar
    Cod.: WEO12864W#JP3N00002-FC

    Kit accessori

    Prezzi per quantità
    Quantità
    1+
    5+
    10+
    Prezzo
    €26,30
    €23,70
    €22,30

    Per quantità maggiori di 24pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

    Disponibilità: Disponibile
    €26,30 IVA esclusa
    i h

    DESCRIPTION

    The COG OLED 128x64 is one of the most popular resolutions. The Winstar 2.42" graphic display OLED 128x64 module is built-in with SSD1309 IC and it supports hardware command "Segment Remap" and "COM Output Scan Direction" mode.  This display is OLED COG structure but with a PCB on module which made it more easily to fix on customer's application.



    DRAWING

    SPECIFICATIONS

    General Specification

    ItemDimensionUnit
    Dot Matrix 128 x 64 -
    Module Dimension 75.0 x 52.7 x 8.5 mm
    Active Area 55.01 x 27.29 mm
    Pixel Size 0.40 x 0.40 mm
    Pixel Pitch 0.43 x 0.43 mm
    Display Mode Passive Matrix
    Display Color Monochrome (White)
    Drive Duty 1/64 Duty



    Interface Pin Function

    Pin No.SymbolDescription
    1 VDD Power supply pin for corelogic operation.
    2 VSS Ground
    3 NC No connection
    4 SCLK Serial clock input
    5 SDIN Serial data input
    6 NC No connection
    7 NC No connection. This pin can ben connected to VSS.
    8 NC No connection. This pin can ben connected to VSS.
    9 NC No connection. This pin can ben connected to VSS.
    10 NC No connection. This pin can ben connected to VSS.
    11 NC No connection. This pin can ben connected to VSS.
    12 CS# This pin is the chip select inout connecting to the MCU.
    This chip is enabled for MCU communication only when CS# is pulled LOW (active LOW).
    13 NC No Connection
    14 RES# This pin is reset signal inoput.
    When the pin is pulled LOW, initialization of the chip is executed.
    Keep this pin pull HIGH during normal operation.
    15 NC No connection. This pin can ben connected to VSS.
    16 D/C# This pin is Data/Command control pin connecting to the MCU.
    17 NC No connection. This pin can ben connected to VSS.
    18 NC No connection
    19 DISP Display off whrn it's pulled low. Display on when it's pulle high.
    20 NC No connection



    Absolute Maximum Ratings

    ItemSymbolMinMaxUnit
    Supply Voltage for Logic VDD -0.3 4 V
    Operating Temperature TOP -40 +80 °C
    Storage Temperature TSTG -40 +80 °C



    Electrical Characteristics

    ItemSymbolConditionMinTypMaxUnit
    Supply Voltage for Logic VDD - 2.8 3.0 3.3 V
    High Level Input VIH - 0.8xVDD - - V
    Low Level Input VIL - - - 0.2xVDD V
    High Level Output VOH - 0.9xVDD - - V
    Low Level Output VOL - - - 0.1xVDD V
    50% Check Board operating Current IDD VDD=3.0V 120 135 145 mA



    Specifiche di prodotto
    Size 2.42"
    Resolution 128x64
    Active Area (mm) 55.01x27.49
    Dot Size 0.40x0.40
    Polarizer Glare
    Color White
    Power supply 3V
    Display Interface SPI
    Display IC SSD1309Z
    Constructive Structure COG + PCB
    Frame Yes
    Touch Panel No touch
    O. Temperature (°C) -40~80
    Data Connection Soldering PAD
    Pin Nr. 20
    Pin Pitch 2.54mm
    Preferred - Not Preferred Not Preferred
    *
    *
    *
    *
