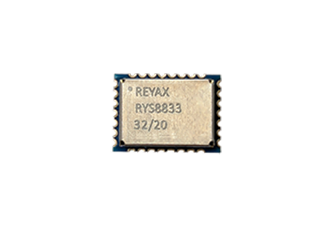

RYS8833

Ultra Low Power 1.8V UART/I2C interface GNSS module

The RYS8833 is a multi-GNSS module with high sensitivity, the RYS8833 also has integrated digital noise filters and spectrum analyzer.

  • SONY CXD5605AGF Engine
  • A multi-GNSS module for GPS(L1 C/A), GLONASS(L1 OF), SBAS(L1 C/A), QZSS(L1 C/A), BeiDou(B1 TBD) and Galileo(E1 CBOC TBD)
  • Including SAW filter, LNA and TCXO
  • Embedded digital noise filters and spectrum analyzer
  • UART / I2C Interface optional

Specification

Item Min. Typical Max. Unit Condition
Power Supply Voltage 1.71 1.8 1.89 V VDD
  0.9 1.8 1.95 V VDD_LDO_IN



GNSS continuous mode

Item Min. Typical Max. Unit Condition
Satellite acquisition Current   19   mA
Satellite tracking Current   13   mA
Idle Current   3.7   mA
Sleep2 mode current   0.2   mA
Satellite acquisition Current   11.5   mA Use buck regulator
Satellite tracking Current   8.2   mA Use buck regulator
Idle Current   3.3   mA Use buck regulator
Sleep0 mode Current   0.5   mA Use buck regulator
Sleep1 mode Current   0.26   mA Use buck regulator
Sleep2 mode Current   0.26   mA Use buck regulator



GNSS low power mode

Item Min. Typical Max. Unit Condition
Satellite tracking average current 2.6   8.2 mA Use buck regulator
@GSOP command
Sleep1 and normal mode cycle
I2C slave         2C clock : 400kHz
Address length : 7 bits
Slave address : 0x24
Default Baud Rate   115200   bps 8, N, 1
Digital input level high 0.7*VDD   VDD+0.3 V VIH
Digital input level low -0.3   0.3*VDD V VIL
Digital output level high 0.8*VDD   VDD V VOH 2mA
Digital output level low 0   0.2*VDD V VOL 2mA
Flash size   8   M-bit
GNSS Center Frequency   1561.098

1575.42

1602.5625

  MHz BeiDou

GPS

Glonass

Navigation update rate   1   Hz
Accuracy   1   M Signal strength is -130dBm
Cold starts   35   Sec. Signal strength is -130dBm
Hot starts   1   Sec.
Tracking Sensitivity   -161   dBm
Hot starts Sensitivity   -160   dBm
Cold starts Sensitivity   -147   dBm
Operating Temperature -40 25 +85 °C
Dimensions         11mm*8mm*2.2mm
Weight   0.37   g



SKU: RYS8833
Brand: Reyax
Disponibile: Si
Prezzi per quantità
Quantità
1+
5+
Prezzo
€10,70
€10,20

Per quantita’ maggiori di 25pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

€10,70 IVA esclusa

The RYS8833 is a multi-GNSS module with high sensitivity, the RYS8833 also has integrated digital noise filters and spectrum analyzer.

  • SONY CXD5605AGF Engine
  • A multi-GNSS module for GPS(L1 C/A), GLONASS(L1 OF), SBAS(L1 C/A), QZSS(L1 C/A), BeiDou(B1 TBD) and Galileo(E1 CBOC TBD)
  • Including SAW filter, LNA and TCXO
  • Embedded digital noise filters and spectrum analyzer
  • UART / I2C Interface optional

Specification

Item Min. Typical Max. Unit Condition
Power Supply Voltage 1.71 1.8 1.89 V VDD
  0.9 1.8 1.95 V VDD_LDO_IN



GNSS continuous mode

Item Min. Typical Max. Unit Condition
Satellite acquisition Current   19   mA
Satellite tracking Current   13   mA
Idle Current   3.7   mA
Sleep2 mode current   0.2   mA
Satellite acquisition Current   11.5   mA Use buck regulator
Satellite tracking Current   8.2   mA Use buck regulator
Idle Current   3.3   mA Use buck regulator
Sleep0 mode Current   0.5   mA Use buck regulator
Sleep1 mode Current   0.26   mA Use buck regulator
Sleep2 mode Current   0.26   mA Use buck regulator



GNSS low power mode

Item Min. Typical Max. Unit Condition
Satellite tracking average current 2.6   8.2 mA Use buck regulator
@GSOP command
Sleep1 and normal mode cycle
I2C slave         2C clock : 400kHz
Address length : 7 bits
Slave address : 0x24
Default Baud Rate   115200   bps 8, N, 1
Digital input level high 0.7*VDD   VDD+0.3 V VIH
Digital input level low -0.3   0.3*VDD V VIL
Digital output level high 0.8*VDD   VDD V VOH 2mA
Digital output level low 0   0.2*VDD V VOL 2mA
Flash size   8   M-bit
GNSS Center Frequency   1561.098

1575.42

1602.5625

  MHz BeiDou

GPS

Glonass

Navigation update rate   1   Hz
Accuracy   1   M Signal strength is -130dBm
Cold starts   35   Sec. Signal strength is -130dBm
Hot starts   1   Sec.
Tracking Sensitivity   -161   dBm
Hot starts Sensitivity   -160   dBm
Cold starts Sensitivity   -147   dBm
Operating Temperature -40 25 +85 °C
Dimensions         11mm*8mm*2.2mm
Weight   0.37   g
