    PH480272T017-ZBC02

    TFT 4.3" 480x272 LCD Panel, Interface MCU (Parallel/SPI) IC NV3041A-01, 370cd/m², Wide View Angle (IPS), Capacitive touch panel I2C interface (GG, FT5446U IC)
    Brand: Powertip
    Cod.: PH480272T017-ZBC02

    Kit accessori

    Prezzi per quantità
    Quantità
    1+
    5+
    10+
    25+
    Prezzo
    €30,60
    €27,50
    €25,90
    €25,30

    Per quantità maggiori di 49pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

    Disponibilità: Il prodotto non può essere aggiunto al carrello. Prego verificare con FC la futura disponibilità
    €30,60 IVA esclusa
    i h

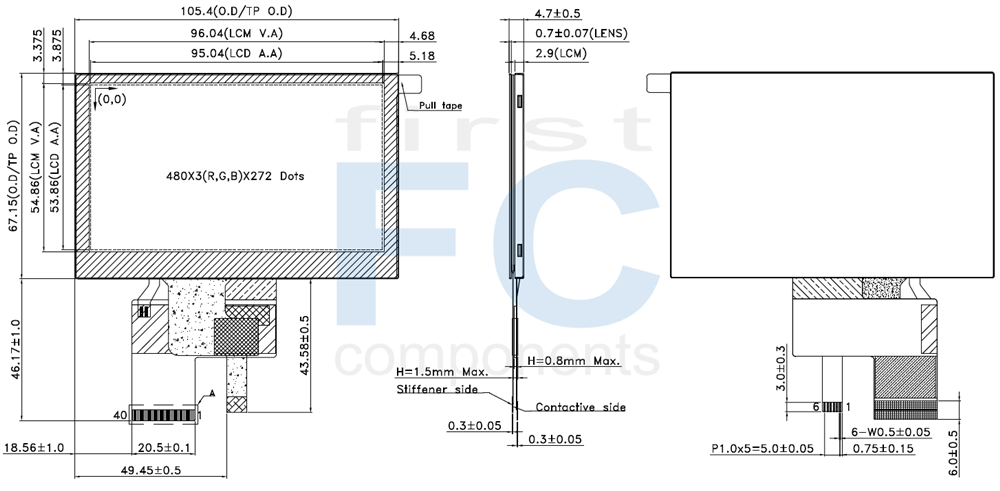

    DRAWING



    SPECIFICATIONS

    Interface Pin Function

    Pin
    Number
    SymbolFunction
    1 VDD Digital Power
    2 VDD Digital Power
    3 NC Not Connect
    4 GND Ground
    5 CS A chip select signal. Signal is active low
    6 SDA/SDO1 SPI bi-direction data pin
    7 WRX/SCL Write sgnal input for 8080 I/F, Clock inout SPI I/F
    8 RDX Read enable inout
    9 DCX/SDO2

    8080 & 3/4 Line I/F

    Data or Command

    DCX = "H" is data, DCX = "L" is command

    Dual-SPI: the second data lane

    Quard-SPI: the second data pin

    10 GND Ground
    11 RESET Global reset. Active low
    12 GND Ground
    13 D0

    When using 8080 8-bit parallel interface D8-D15 is pull low

    When using 8080 9-bit parallel interface D9-D15 is pull low

    When using 3/4 SPI interface

    D[15:0] are not used and should connect to "L" by GND

    When using Dual-SPI interface

    SDA: In/Out, DCX: In

    D[15:0] are not used and should connect to "L" by GND

    When using Quard-SPI interface

    D2: the third pin of Quard-SPI SDO3

    D3: the fourth pin of Quard-SPI SDO4

    D[15:2] are not used and should connect to "L" by GGND

    14 D1
    15 D2
    16 D3
    17 D4
    18 D5
    19 D6
    20 D7
    21 D8
    22 D9
    23 D10
    24 D11
    25 D12
    26 D13
    27 D14
    28 D15
    29 TE Tearing effect output pin is used to syncrhronize MCU frame writing, activated bt S/W command. When this pin is not activated (TE function OFF), this pin is GND level
    30 IM0

    IM0, IM1 selects interface mode.

    IM1 IM0 Selected Interface
    0 0 8080 series 8bit
    8080 series 9bit
    8080 series 16bit
    0 1 3/4-wire SPI
    1 0 Dual SPI
    1 1 Quad SPI



    31 IM1
    32 SPI4W

    SPI 3/4 wire selection.

    SPI4W="H", 4 wire SPI

    SPI4W="L", 3 wire SPI

    33 GND Ground
    34 NC Not Connect
    35 A Power supply for LED Backlight anode input
    36 K Power supply for LED Backlight cathode input
    37 NC Not Connect
    38 NC Not Connect
    39 NC Not Connect
    40 NC Not Connect



    Capacitive Touch Panel (CTP) Interface

    Pin
    Number
    SymbolFunction
    1 TPVDD Power Supply Voltage (3.3V)
    2 GND Ground
    3 SCL I2C Clock
    4 SDA I2C Data
    5 INT Active Low
    6 WAKE Active low reset signal input



    General Specification

    ItemDimensionUnit
    Display Type 480 × 3(RGB) x 272 Dots -
    Module dimension 105.4(W) × 67.15(L) × 4.7(H) mm
    Active Area 95.04(W) × 53.86(L) mm
    Pixel Size 0.198(W) × 0.198(H) mm
    LCD Type Full Viewing Angle, Normally Black, Transmissive type
    Screen size (inch) 4.3"(Diagonal)
    Color configuration R,G,B, vertical stripe
    Display Interface 8080 8 Bit - 9 Bit - 16 Bit & 3/4 Line - Dual SPI & Quad SPI/IF
    Driver IC NV3041A-01
    ROHS This product conforms the RoHS of PTC



    Absolute Maximum Ratings

    ParameterSymbolConditionMinMaxUnit
    System Power Supply Voltage VDD GND=0 -0.5 +4.6 V
    Input Voltage Range Vin - -0.5 VDD+0.3 V
    Operating Temperature TOP (Ts) Note 1 -20 +70 °C
    Storage Temperature TST (Ta) Note 2 -30 +80 °C
    Storage Humidity HD Ta≤60°C - 90 %RH

    Note 1: Ts is the temperature of panel's surface.

    Note 2: Ta is the ambient temperature of samples.



    Electronical Characteristics

    ItemSymbolConditionMinTypMaxUnit
    Power Supply Voltage VDD - 3.0 3.3 3.6 V
    "H" Input Voltage VIH - 0.7×VDD - VDD V
    "L" Input Voltage VIL - GND - 0.3×VDD V
    "H" Output Voltage VOH - VDD-0.4 - VDD V
    "L" Output Voltage VOL - GND - GND +0.4 V
    Supply Current IDD VDD =3V - (35) (50) mA

    GND=0, Ta=25°C

    Specifiche di prodotto
    Size 4.3"
    Resolution 480x272
    Active Area (mm) 95.04x53.86
    Color Full Color
    Display Interface MCU (Parallel/SPI)
    Display IC NV3041A-01
    View Angle IPS
    Frame No
    Touch Panel Capacitive
    O. Temperature (°C) -20~70
    Data Connection FPC for ZIF Connector
    Pin Nr. 40
    Pin Pitch 0.5mm
    Touch Panel IC Controller FT5446U
    Preferred - Not Preferred Preferred
