NT121-C001PT

TFT 12.1" 1280x800 LCD Panel, Interface LVDS, High Brightness 850cd/m², Wide View Angle (IPS), Capacitive touch panel I2C Interface (GG, ILI2132 IC)

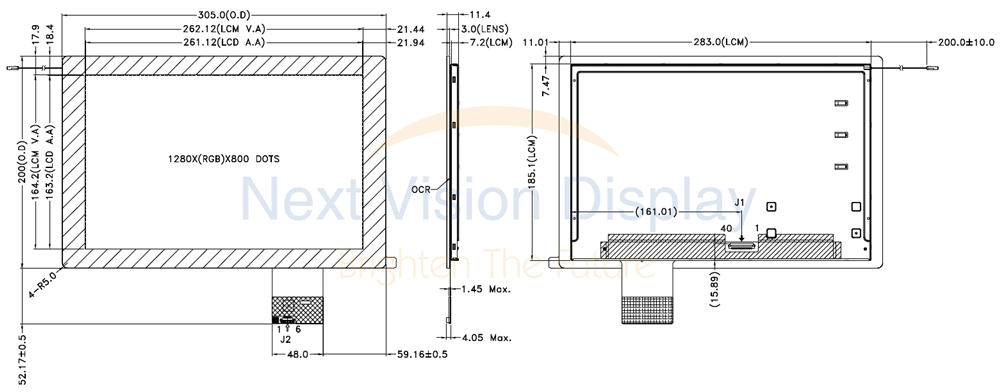

DRAWING

SPECIFICATIONS

LCM Interface

Pin	Symbol	Function
1	NC	No Connection
2	VDD	Power Supply
3	VDD	Power Supply
4	VDD	Power Supply
5	NC	No Connection
6	GND	Ground
7	GND	Ground
8	RIN0-	-LVDS Differential Data Input
9	RIN0+	+LVDS Differential Data Input
10	GND	Ground
11	RIN1-	-LVDS Differential Data Input
12	RIN1+	+LVDS Differential Data Input
13	GND	Ground
14	RIN3-	-LVDS Differential Data Input
15	RIN3+	+LVDS Differential Data Input
16	GND	Ground
17	LVDS_CLK-	-LVDS Differential Clock Input
18	LVDA_CLK+	+LVDS Differential Clock Input
19	GND	Ground
20	RIN3+	-LVDS Differential Data Input
21	RIN3+	+LVDS Differential Data Input
22	GND	Ground
23	NC	No Connection
24	NC	No Connection
25	GND	Ground
26	SDA	Serial data inout/output for I2C interface
27	SCL	Clock input for I2C interface
28	GND	Ground
29	NC	No Connection
30	NC	No Connection
31	GND	Ground
32	GND	Ground
33	GND	Ground
34	NC	No Connection
35	NC	No Connection
36	NC	No Connection
37	NC	No Connection
38	NC	No Connection
39	NC	No Connection
40	NC	No Connection

Touch Panel Interface

Pin	Symbol	Function
1	GND	Ground
2	SDA	I2C Data
3	SCL	I2C Clock
4	INT	Active Low
5	RESET	Active low global reset signal input
6	VDD_3.3V	Power Supply Voltage (3.3V)

General Specifications

Item	Dimension	Unit
Size	12.1	inch
Dot Matrix	1280 × RGB × 800	dots
Outline dimension	305.00(W) × 200.00(L) × 11.40(H)	mm
Active area	261.12 × 163.20	mm
Display Mode	Full Viewing Angle, Transmissive, Normally Black
Color	16.7M
Weight	-
Interface	8 bit LVDS
Touch type	Projective capacitive touch panel
Output Interface	I2C
Touch IC	ILI2132

Absolute Maximum Ratings

Item	Symbol	Condition	Min	Max	Unit
Logic Supply Voltage	V_DD	GND_0V	-0.3	3.6	V
Operating Temperature	T_OP(Ts)	Note 1	-20	+70	℃
Storage Temperature	T_ST(Ta)	Note 2	-30	+80	℃
Storage Humidity	H_D	Ta<60°C	10	+90	%RH

Note 1: Ts is the temperature of panel's surface-

Note 2: Ta is the ambient temperature of samples.

Electrical Characteristics

Operating Conditions

Item	Symbol	Condition	Min.	Typ.	Max.
Power Supply Voltage for LCM Driver	VDD	-	3.0	3.3	3.6	V
Power Supply Current	IDD	VDD=3.3V	-	(130)	-	mA

SKU: NT121-C001PT

Brand: Powertip

Disponibile: No

Si tratta dela prima recensione per questo prodotto

Prezzi per quantità

Quantità

10+

Prezzo

€189,90

€176,30

€170,20

Per quantita’ maggiori di 25pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

€189,90 IVA esclusa

Overview
Specifiche
Download
Contattaci

DRAWING

SPECIFICATIONS

LCM Interface

Pin	Symbol	Function
1	NC	No Connection
2	VDD	Power Supply
3	VDD	Power Supply
4	VDD	Power Supply
5	NC	No Connection
6	GND	Ground
7	GND	Ground
8	RIN0-	-LVDS Differential Data Input
9	RIN0+	+LVDS Differential Data Input
10	GND	Ground
11	RIN1-	-LVDS Differential Data Input
12	RIN1+	+LVDS Differential Data Input
13	GND	Ground
14	RIN3-	-LVDS Differential Data Input
15	RIN3+	+LVDS Differential Data Input
16	GND	Ground
17	LVDS_CLK-	-LVDS Differential Clock Input
18	LVDA_CLK+	+LVDS Differential Clock Input
19	GND	Ground
20	RIN3+	-LVDS Differential Data Input
21	RIN3+	+LVDS Differential Data Input
22	GND	Ground
23	NC	No Connection
24	NC	No Connection
25	GND	Ground
26	SDA	Serial data inout/output for I2C interface
27	SCL	Clock input for I2C interface
28	GND	Ground
29	NC	No Connection
30	NC	No Connection
31	GND	Ground
32	GND	Ground
33	GND	Ground
34	NC	No Connection
35	NC	No Connection
36	NC	No Connection
37	NC	No Connection
38	NC	No Connection
39	NC	No Connection
40	NC	No Connection

Touch Panel Interface

Pin	Symbol	Function
1	GND	Ground
2	SDA	I2C Data
3	SCL	I2C Clock
4	INT	Active Low
5	RESET	Active low global reset signal input
6	VDD_3.3V	Power Supply Voltage (3.3V)

General Specifications

Item	Dimension	Unit
Size	12.1	inch
Dot Matrix	1280 × RGB × 800	dots
Outline dimension	305.00(W) × 200.00(L) × 11.40(H)	mm
Active area	261.12 × 163.20	mm
Display Mode	Full Viewing Angle, Transmissive, Normally Black
Color	16.7M
Weight	-
Interface	8 bit LVDS
Touch type	Projective capacitive touch panel
Output Interface	I2C
Touch IC	ILI2132

Absolute Maximum Ratings

Item	Symbol	Condition	Min	Max	Unit
Logic Supply Voltage	V_DD	GND_0V	-0.3	3.6	V
Operating Temperature	T_OP(Ts)	Note 1	-20	+70	℃
Storage Temperature	T_ST(Ta)	Note 2	-30	+80	℃
Storage Humidity	H_D	Ta<60°C	10	+90	%RH

Note 1: Ts is the temperature of panel's surface-

Note 2: Ta is the ambient temperature of samples.

Electrical Characteristics

Operating Conditions

Item	Symbol	Condition	Min.	Typ.	Max.
Power Supply Voltage for LCM Driver	VDD	-	3.0	3.3	3.6	V
Power Supply Current	IDD	VDD=3.3V	-	(130)	-	mA

Specifiche di prodotto

Brand	Powertip
Size	12.1"
Risoluzione	1280x800
Area Attiva (mm)	261.12x163.20
Colore	Full Color
Interfaccia Display	LVDS
Display IC	No
Angolo Visione	IPS
Sunlight Readable	High 601~1200cd/m²
Frame	No
Touch Panel	Capacitive
Temperatura O. (°C)	-20~70
Connessione Display	LVDS Connector
Nr. Pin	40
Passo Pin	0.5mm
IC Controller Touch Panel	ILI2132
Preferred - Not Preferred	Preferred
