NT024-C001DW

Immagine di NT024-C001DW

Immagine di NT024-C001DW

Immagine di NT024-C001DW

TFT 2.4" 240x320 Portrait LCD Panel, Interface RGB, 250 cd/m2, Capacitive touch panel I2C interface (GG,GT911 IC)

General Specification

Color	262K
LCD Type	TN-TFT-LCD
Viewing Angle	Normal viewing angle, 45/45/45/20(L/R/U/D)
Display Area(A.A)	36.72(W)*48.96(H)
Driver IC	ILI9341
Luminance	250cd/m²
LED Numbers	4 LEDS
Interface	RGB_16bit 40PIN_0.5mm

Electrical Characteristics

Analog Voltage	2.8V(Typ.)
Forward Voltage	12.8V(Typ.)
Forward Current	20mA
Uniformity(with L/G)	80%
LED Life-Time	30000 Hr
Power Consumption	256mW

Optical Characteristics

Contrast Ratio	250:1
Response Time	30ms
Transmittance	5.0%

Touch Parameters

Feature	Description
Type	CTP (Capacitive touch panel)
Structure	G+G
Outline size (mm)	42.70(L)60.10(W)1.63(T)
View Area (mm)	37.32(L)*49.56(W)
Control Type	GT911
Surface Hardness	6H
Light Transmittance	≥85%
Operating Temperature	-20~70°C
Storage Temperature	-30~80°C

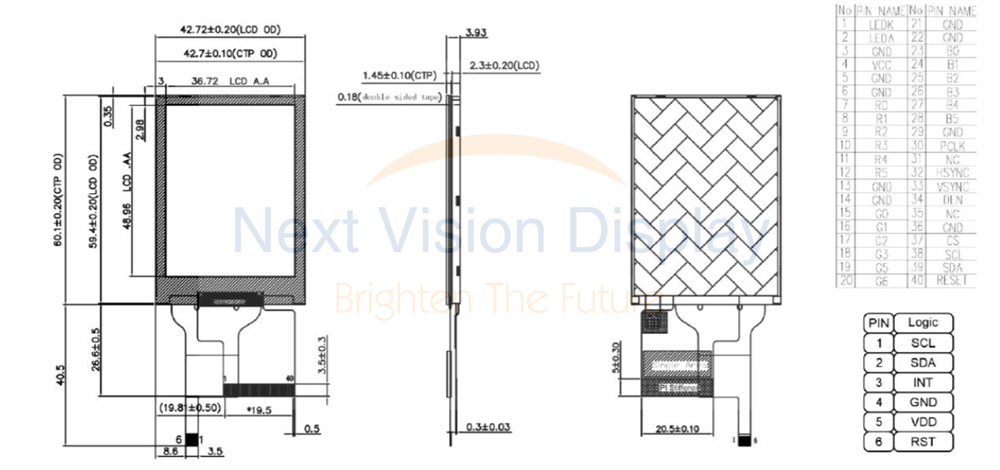

DRAWING

SKU: NT024-C001DW

Brand: Next Vision Display

Disponibile: Si

Si tratta dela prima recensione per questo prodotto

Kit Accessori

Display Connector
Touch-Panel Connector

Prezzi per quantità

Quantità

1+

5+

10+

Prezzo

€15,40

€13,50

€12,00

Per quantita’ maggiori di 25pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

€15,40 IVA esclusa

Overview
Specifiche
Download
Contattaci

General Specification

Color	262K
LCD Type	TN-TFT-LCD
Viewing Angle	Normal viewing angle, 45/45/45/20(L/R/U/D)
Display Area(A.A)	36.72(W)*48.96(H)
Driver IC	ILI9341
Luminance	250cd/m²
LED Numbers	4 LEDS
Interface	RGB_16bit 40PIN_0.5mm

Electrical Characteristics

Analog Voltage	2.8V(Typ.)
Forward Voltage	12.8V(Typ.)
Forward Current	20mA
Uniformity(with L/G)	80%
LED Life-Time	30000 Hr
Power Consumption	256mW

Optical Characteristics

Contrast Ratio	250:1
Response Time	30ms
Transmittance	5.0%

Touch Parameters

Feature	Description
Type	CTP (Capacitive touch panel)
Structure	G+G
Outline size (mm)	42.70(L)60.10(W)1.63(T)
View Area (mm)	37.32(L)*49.56(W)
Control Type	GT911
Surface Hardness	6H
Light Transmittance	≥85%
Operating Temperature	-20~70°C
Storage Temperature	-30~80°C

DRAWING

Specifiche di prodotto

Brand	Next Vision Display
Size	2.4"
Risoluzione	240x320
Area Attiva (mm)	36.72x48.96
Colore	Full Color
Interfaccia Display	RGB
Display IC	No
Angolo Visione	TN
Frame	No
Touch Panel	Capacitive
Temperatura O. (°C)	-20~70
Connessione Display	FPC for ZIF Connector
Nr. Pin	40
Passo Pin	0.5mm
IC Controller Touch Panel	GT911
Preferred - Not Preferred	Preferred

Download

Esegui il Login o Registrati per poter visualizzare PDF.

Nome completo

La tua email

Richiesta

Specifiche di prodotto

Brand	Next Vision Display
Size	2.4"
Risoluzione	240x320
Area Attiva (mm)	36.72x48.96
Colore	Full Color
Interfaccia Display	RGB
Display IC	No
Angolo Visione	TN
Frame	No
Touch Panel	Capacitive
Temperatura O. (°C)	-20~70
Connessione Display	FPC for ZIF Connector
Nr. Pin	40
Passo Pin	0.5mm
IC Controller Touch Panel	GT911
Preferred - Not Preferred	Preferred
