NT101-C002ME

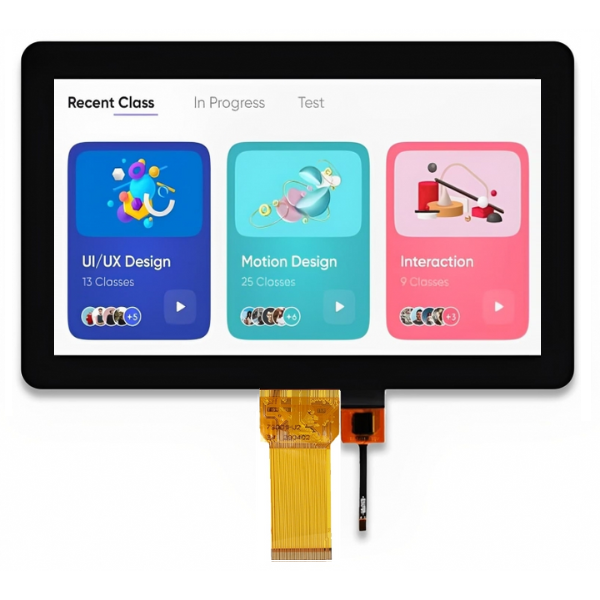

TFT 10.1" 1024x600 LCD Panel, Interface RGB, 500cd/m², Wide View Angle (IPS), Capacitive Touch Panel

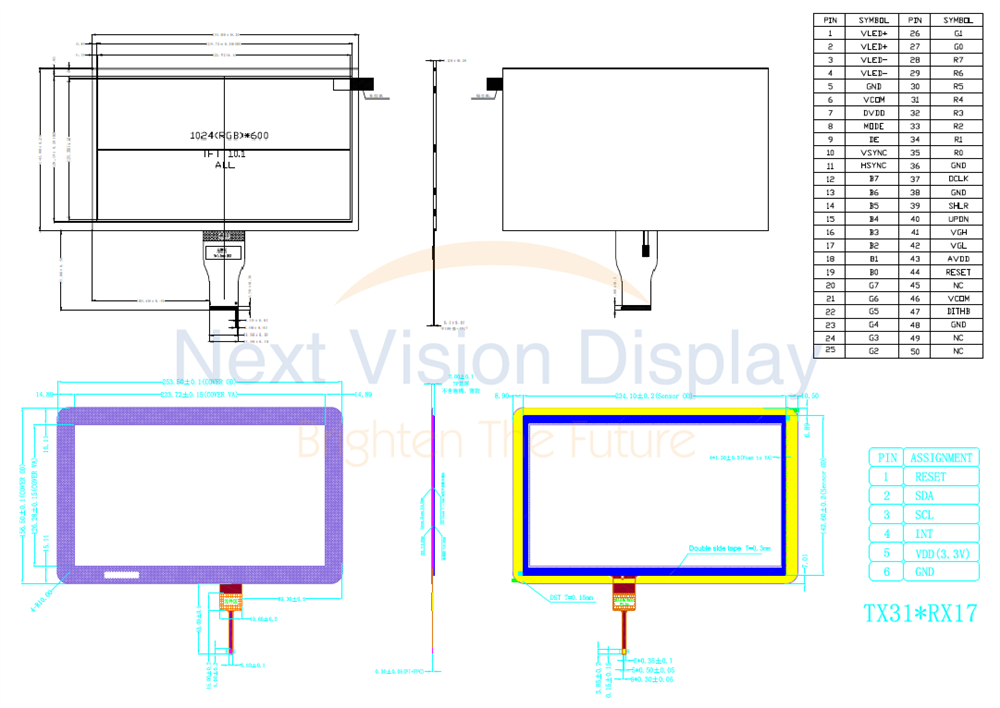

DRAWING

SPECIFICATIONS

General Specifications

Item	Dimension	Unit	Note
LCD Type	Normally Black, Transmissive	-
Display color	16-7M	-	1
Viewing direction	ALL	-
Operating temperature	-20~+70	°C
Storage temperature	-30~+80	°C
Module size	235.00(W)x134.00(H)x5.20(T)	mm	2
Active Area (WxH)	222.72(W)x125.28(H)	mm
Number of Dots	1024xRGBx600	dots
Backlight	42-LEDs (white)	pcs
Data Transfer	RGB 24-bit	-
Driver IC	HX8282-A11+HX8696

Note 1: Color tune is slightly changed by temperature and driving voltage.

Note 2: Without FPC and Solder.

Absolute Maximum Ratings

Item	Symbol	Min	Max	Unit
Digital Supply Voltage	DVDD	-0.3	3.6	V
Analog Supply Voltage	AVDD	0	13.5	V
TFT Gate ON Voltage	VGH	-0.3	20	V
TFT Gate OFF Voltage	VGL	-20	0.3	V
Operating Temperature	TOP	-20	70	℃
Storage Temperature	TST	-30	80	℃

Electrical Characteristics

Item	Symbol	Min	Typ	Max	Unit
Digital Supply Voltage	DVDD	3.0	3.3	3.6	V
Analog Supply Voltage	AVIDD	9.5	9.6	9.7	V
TFT Gate ON Voltage	VGH	17.6	18	18.4	V
TFT Gate OFF Voltage	VGL	-6.4	-6	-5.6	V
TFT Common Electrode Voltage	VCOM	4.0	4.2	4.4	V

Interface

Pin NO.	Symbol	I/O	Description
1	VLED+	-	Power for LED backlight (Anode)
2	VLED+	-	Power for LED backlight (Anode)
3	VLED-	-	Power for LED backlight (Cathode)
4	VLED-	-	Power for LED backlight (Cathode)
5	GND	P	Power ground
6	VCOM	I	Common Voltage
7	DVDD	P	Digital Power
8	MODE	I	DE/SYNC mode select
9	DE	I	Data Enable signal
10	VSYNC	I	Vertical sync input
11	HSYNC	I	Horizontal sync input
12	B7	I	Blue data (MSB)
13	B6	I	Blue data
14	B5	I	Blue data
15	B4	I	Blue data
16	B3	I	Blue data
17	B2	I	Blue data
18	B1	I	Blue data
19	B0	I	Blue data (LSB)
20	G7	I	Green data (MSB)
21	G6	I	Green data
22	G5	I	Green data
23	G4	I	Green data
24	G3	I	Green data
25	G2	I	Green data
26	G1	I	Green data
27	G0	I	Green data (LSB)
28	R7	I	Red data (MSB)
29	R6	I	Red data
30	R5	I	Red data
31	R4	I	Red data
32	R3	I	Red data
33	R2	I	Red data
34	R1	I	Red data
35	R0	I	Red data (LSB)
36	GND	P	Power ground
37	DCLK	I	Clock input
38	GND	P	Power ground
39	SHLR	I	Left/Right Selection
40	UPDN	I	Up/Down Selection
41	VGH	P	Gate ON Voltage
42	VGL	P	Gate OFF Voltage
43	AVDD	P	Power for Analog Circuit
44	RESET	I	Global reset pin
45	NC	-	Not connection
46	VCOM	I	Common Voltage
47	DITH	I	Dithering function enable control
48	GND	P	Power ground
49	NC	-	Not connection
50	NC	-	Not connection

SKU: NT101-C002ME

Brand: Next Vision Display

Disponibile: Si

Si tratta dela prima recensione per questo prodotto

Kit Accessori

Display Connector
Touch-Panel Connector

Prezzi per quantità

Quantità

10+

Prezzo

€73,70

€67,60

€64,90

Per quantita’ maggiori di 25pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

€73,70 IVA esclusa

Overview
Specifiche
Download
Contattaci

DRAWING

SPECIFICATIONS

General Specifications

Item	Dimension	Unit	Note
LCD Type	Normally Black, Transmissive	-
Display color	16-7M	-	1
Viewing direction	ALL	-
Operating temperature	-20~+70	°C
Storage temperature	-30~+80	°C
Module size	235.00(W)x134.00(H)x5.20(T)	mm	2
Active Area (WxH)	222.72(W)x125.28(H)	mm
Number of Dots	1024xRGBx600	dots
Backlight	42-LEDs (white)	pcs
Data Transfer	RGB 24-bit	-
Driver IC	HX8282-A11+HX8696

Note 1: Color tune is slightly changed by temperature and driving voltage.

Note 2: Without FPC and Solder.

Absolute Maximum Ratings

Item	Symbol	Min	Max	Unit
Digital Supply Voltage	DVDD	-0.3	3.6	V
Analog Supply Voltage	AVDD	0	13.5	V
TFT Gate ON Voltage	VGH	-0.3	20	V
TFT Gate OFF Voltage	VGL	-20	0.3	V
Operating Temperature	TOP	-20	70	℃
Storage Temperature	TST	-30	80	℃

Electrical Characteristics

Item	Symbol	Min	Typ	Max	Unit
Digital Supply Voltage	DVDD	3.0	3.3	3.6	V
Analog Supply Voltage	AVIDD	9.5	9.6	9.7	V
TFT Gate ON Voltage	VGH	17.6	18	18.4	V
TFT Gate OFF Voltage	VGL	-6.4	-6	-5.6	V
TFT Common Electrode Voltage	VCOM	4.0	4.2	4.4	V

Interface

Pin NO.	Symbol	I/O	Description
1	VLED+	-	Power for LED backlight (Anode)
2	VLED+	-	Power for LED backlight (Anode)
3	VLED-	-	Power for LED backlight (Cathode)
4	VLED-	-	Power for LED backlight (Cathode)
5	GND	P	Power ground
6	VCOM	I	Common Voltage
7	DVDD	P	Digital Power
8	MODE	I	DE/SYNC mode select
9	DE	I	Data Enable signal
10	VSYNC	I	Vertical sync input
11	HSYNC	I	Horizontal sync input
12	B7	I	Blue data (MSB)
13	B6	I	Blue data
14	B5	I	Blue data
15	B4	I	Blue data
16	B3	I	Blue data
17	B2	I	Blue data
18	B1	I	Blue data
19	B0	I	Blue data (LSB)
20	G7	I	Green data (MSB)
21	G6	I	Green data
22	G5	I	Green data
23	G4	I	Green data
24	G3	I	Green data
25	G2	I	Green data
26	G1	I	Green data
27	G0	I	Green data (LSB)
28	R7	I	Red data (MSB)
29	R6	I	Red data
30	R5	I	Red data
31	R4	I	Red data
32	R3	I	Red data
33	R2	I	Red data
34	R1	I	Red data
35	R0	I	Red data (LSB)
36	GND	P	Power ground
37	DCLK	I	Clock input
38	GND	P	Power ground
39	SHLR	I	Left/Right Selection
40	UPDN	I	Up/Down Selection
41	VGH	P	Gate ON Voltage
42	VGL	P	Gate OFF Voltage
43	AVDD	P	Power for Analog Circuit
44	RESET	I	Global reset pin
45	NC	-	Not connection
46	VCOM	I	Common Voltage
47	DITH	I	Dithering function enable control
48	GND	P	Power ground
49	NC	-	Not connection
50	NC	-	Not connection

Specifiche di prodotto

Brand	Next Vision Display
Size	10.1"
Risoluzione	1024x600
Area Attiva (mm)	222.72x125.28
Colore	Full Color
Interfaccia Display	RGB
Display IC	No
Angolo Visione	IPS
Frame	No
Touch Panel	Capacitive
Temperatura O. (°C)	-20~70
Connessione Display	FPC for ZIF Connector
Nr. Pin	50
Passo Pin	0.5mm
IC Controller Touch Panel	GT9271
Preferred - Not Preferred	Preferred
