NT104-C002VX
NT104-C002VX
Open Frame LCD Monitor 10.4” with IPCT (USB), High Brightness 900cd/m², 1024x768 resolution, LCD VGA/HDMI interface, -20+70°C O.T.
DESCRIPTION
High contrast color TFT-LCD Touch Monitor support resolution up to 1024*768.
Power management system conforms to VESA DPMS and EPA Energy Star standards.
Full consideration for touch screen installation and application.
Universal Power adapter.
Support DDC1 & DDC2B for Plug & Play compatibility.
Advanced OSD control for picture quality adjustment.
Detachable stand for wall-mounting adjustment.
Heavy duty monitor with steel frame.
Custom design by request.
Panel Type
10.4-inch TFT LCD
Screen Diagonal
10.4-inch
Active Display Area (mm)
211.2(H) x 158.4(V)
Pixel Pitch (mm)
0.2063 x 0.2063
Number of Pixels
1024xRGBx768
Contrast Ratio
900:1
Display Color
16.2M / 262K colors
Brightness (cd/ )
900nits (Measured with Touch)
Viewing Angle(Typ.)
75 / 75 / 75 / 75 ( R/L/U/D)
Signal Connector
15 PIN D-Sub,DVI-D,HDMI
Power Source
DC +12V(+/-10%)
Power Management
VESA DPMS Compliant
Operating Temperature
-20 ~ +70
Storage Temperature
-30 ~ +80
Plug & Play
VESA DDC 1/2B
Touch Type
Projected Capacitive Touch
Transparency
> 90% (typ.)
Hardness of surface
7H, 6mm Vandal Proof Cover Glass
Linearity
±1.5%(max.)
*Specifications are subject to change without notice**

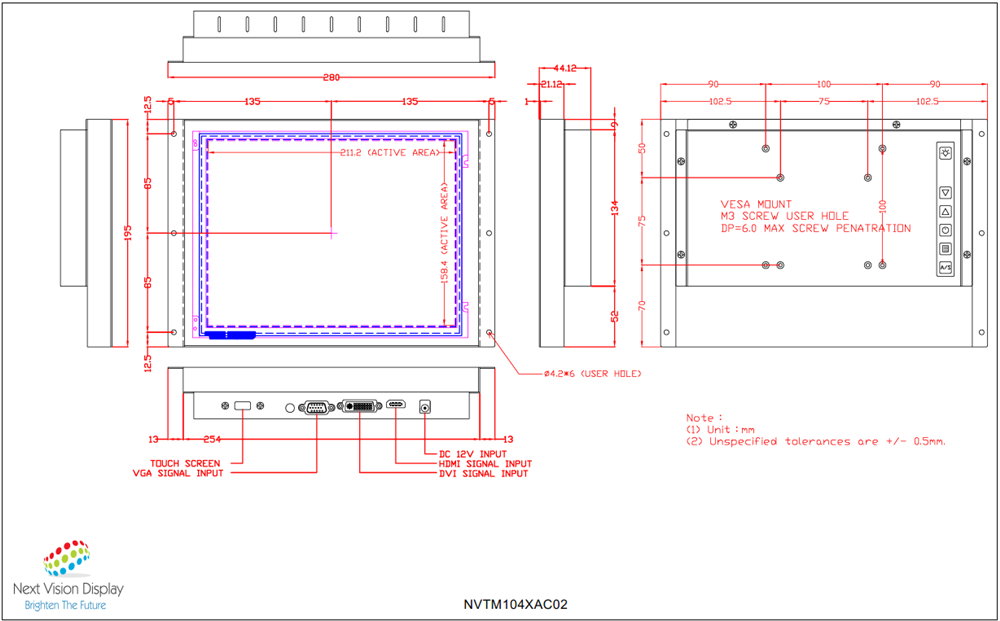

DRAWING
SKU:
NT104-C002VX
Brand:
Next Vision Display
Disponibile:
Si
Si tratta dela prima recensione per questo prodotto
€545,70 IVA esclusa
Overview
Specifiche
Download
Contattaci
DESCRIPTION
High contrast color TFT-LCD Touch Monitor support resolution up to 1024*768.
Power management system conforms to VESA DPMS and EPA Energy Star standards.
Full consideration for touch screen installation and application.
Universal Power adapter.
Support DDC1 & DDC2B for Plug & Play compatibility.
Advanced OSD control for picture quality adjustment.
Detachable stand for wall-mounting adjustment.
Heavy duty monitor with steel frame.
Custom design by request.
Panel Type
10.4-inch TFT LCD
Screen Diagonal
10.4-inch
Active Display Area (mm)
211.2(H) x 158.4(V)
Pixel Pitch (mm)
0.2063 x 0.2063
Number of Pixels
1024xRGBx768
Contrast Ratio
900:1
Display Color
16.2M / 262K colors
Brightness (cd/ )
900nits (Measured with Touch)
Viewing Angle(Typ.)
75 / 75 / 75 / 75 ( R/L/U/D)
Signal Connector
15 PIN D-Sub,DVI-D,HDMI
Power Source
DC +12V(+/-10%)
Power Management
VESA DPMS Compliant
Operating Temperature
-20 ~ +70
Storage Temperature
-30 ~ +80
Plug & Play
VESA DDC 1/2B
Touch Type
Projected Capacitive Touch
Transparency
> 90% (typ.)
Hardness of surface
7H, 6mm Vandal Proof Cover Glass
Linearity
±1.5%(max.)
*Specifications are subject to change without notice**
DRAWING
